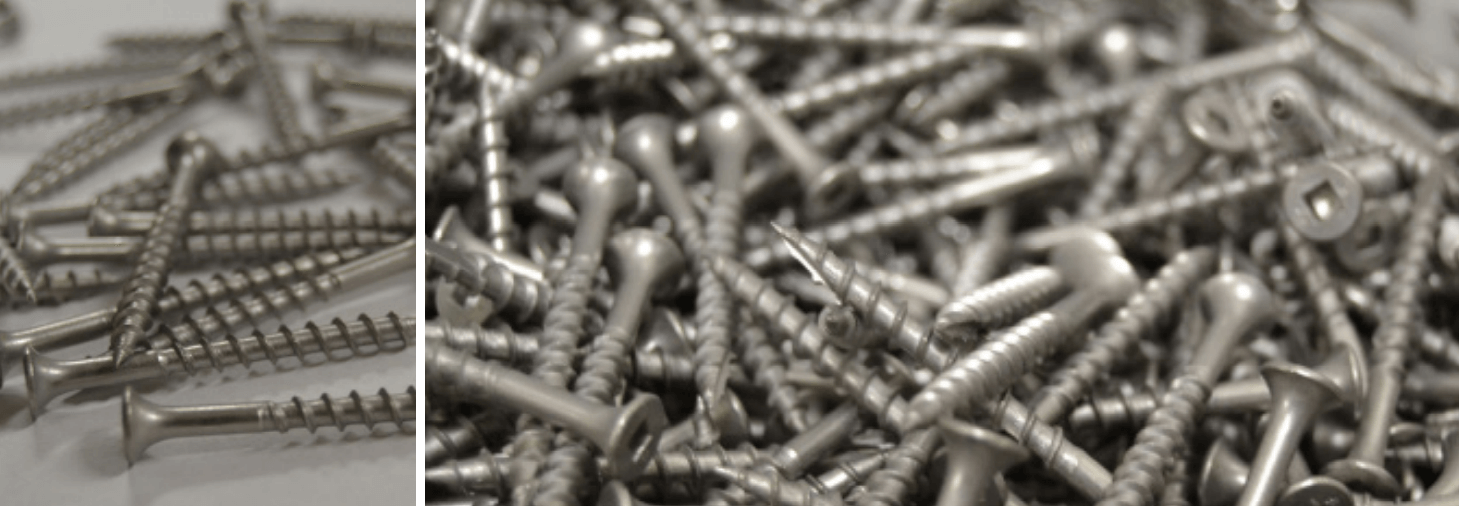

The structure of the roof often fails long before Ludowici tile, so be sure to start your project off right. We offer durable, high-quality underlayment for your building, and Tile Seal and Tile Vent for those vulnerable areas requiring additional flashing. Ludowici also recommends copper nails or stainless screws as the preferred choice for affixing our tile to the roof, both of which can be ordered to deliver with our tile—saving you time, and money

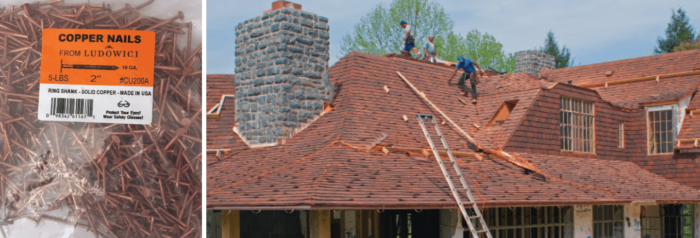

A roof tile fastener should last as long as the roof tile you’ve chosen. Copper nails are the perfect fastener for your new Ludowici tile roof and now Ludowici is stocking copper nails that can easily be added to your tile order.
These American-made nails are non-ferrous and feature a 10-gauge shank to resist bending. They are packaged in convenient, installer-friendly 5-lb increments. They can be shipped with the tile or straight to the customer’s office or shop location.
| Shank | Length | Head Diameter | Nails/5lbs |
|---|---|---|---|
| Ring or Smooth | 1 3/4“ | 3/8″ | 575 |
| Ring or Smooth | 2″ | 3/8″ | 510 |
| Ring or Smooth | 2 1/2“ | 3/8″ | 415 |
NOTE: Prices are FOB Ludowici Roof Tile Plant.

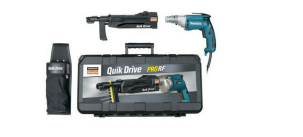

*Complete Tool Kit System includes: Auto feed attachment; Makita screw gun; and hard plastic tool case.
NOTE: Prices are FOB Ludowici Roof Tile Plant.
Brochures, installation instructions, and data sheets available on the website.
| Product | SQS/Roll | Rolls/Pallet | Roll Size | Weight/Roll |
|---|---|---|---|---|
| Ludo Pro Perma | 5 | 25 | 59″ W x 102′ L | 55 lbs. |
| Ludo Pro Block | — | 36 | 36″ W x 75′ L | 65 lbs. |
| Lastobond TU-HT (use w/ foam adhesive) | 1.9 | 30 | 39″ W x 65′ L | 73 lbs. |
| Lastobond Pro HT-S | 1.9 | 36 | 39-1/2” W x 65′ 9″ L | 44 lbs. |
| Resistoflex | 0.8 | 64 | 36″ W x 33′ L | 81lbs. |
| Cap Nails | Nails/SQ | Nails/Box | Length | Gauge | Head |
|---|---|---|---|---|---|
| PH032000 | 200 | 2000 | 1″ | .106 | 15/16″ |
Cap Nails are for Resistoflex only

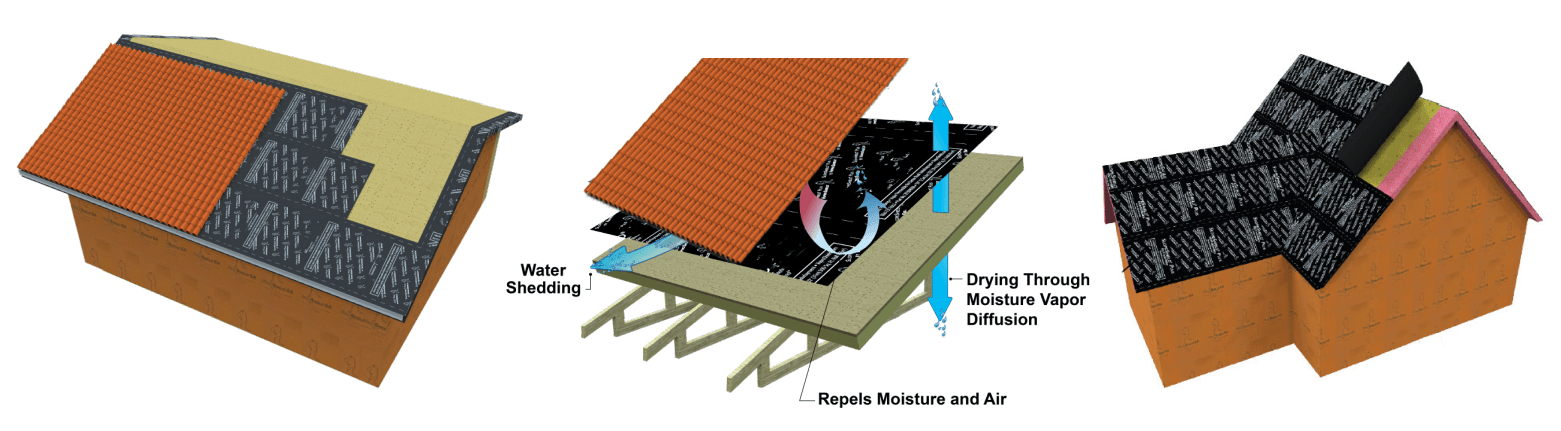

• A highly vapor permeable roofing underlayment
Air Barrier (AB) material
• Used on steep slope roofs based on our tile requirements
• Promotes long term drying of roofing assembly
through vapor diffusion
• Breathable and airtight, with exceptional water and air holdout
• Primerless installation
• High drying capacity (Vapor Permeability, 30 Perms)
• Long exposure times, 6 months (180 days) UV and climate exposure
prior to roof system installation
• Tough, durable, and slip resistant—with excellent traction for installers
• Factory made rolled good with consistent millage thickness
• Suitable for all climates and geographic locations, including
extreme temperature areas
• 20-Year Material Warranty
• Excellent resistance to temperature variations
• Easy Installation
• UV resistant; 90-day exposure
• Excellent resistance to high temperatures
• Approved underlayment with use of POLYSET® AH-160
• UV resistant; 180-day exposure
• Anti-slip
• Vapor barrier/air barrier roofing underlayment
• Designed for use at eaves to prevent damage from ice dams and in conjunction with Ludo Pro Perma
NOTE: FULL PALLETS OF UNDERLAYMENT AND CAP NAILS CAN BE DROPPED SHIPPED PRIOR TO TILE SHIPMENT
(ADDITIONAL SHIPPING CHARGES MAY APPLY).
PLEASE CONTACT MIKE ADE AT 281.435.2216 OR MIKE.ADE@LUDOWICI.COM

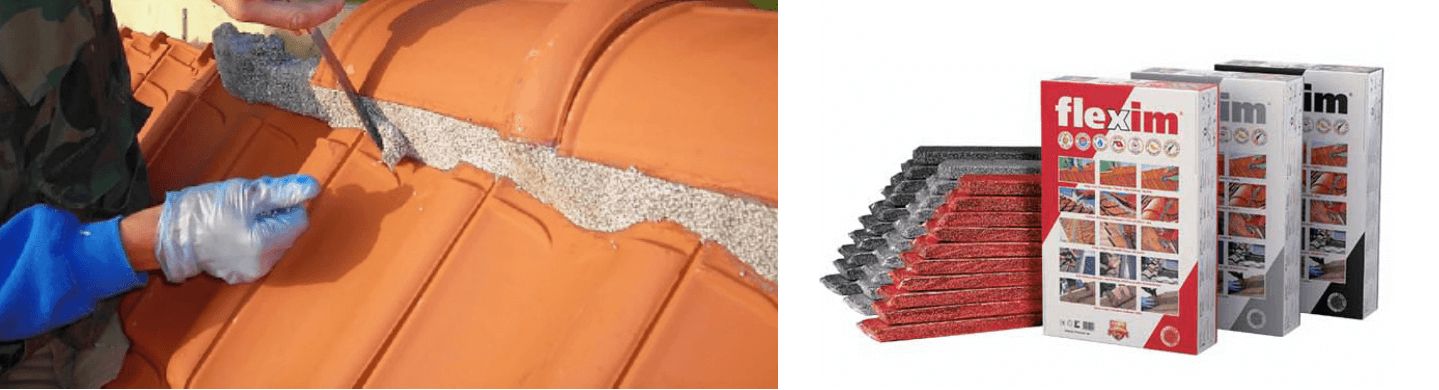

Flexim is a ready-to-use roofing mortar for fixing ridge/ hip tiles to tile roofs. It has been used successfully for over thirty years in the repair, renovation and new construction markets.
Flexim has been formulated with natural ingredients and does not contain toxic substances that are harmful to the environment. In fact, Flexim’s main ingredient is actually a plant material: flaxseed oil. Furthermore, Flexim is aesthetically pleasing once installed, as it gives the ridge and the rim a traditional look.
| LBS/Box | Strip Size | Box Size |
|---|---|---|
| 20 lbs | 3-15/16” x 19-11/16” x 1-3/8“ | 1′ 11-3/5” x 1′ 3-3/4” x 4-7/10“ |
Each box provides 8-10 feet of coverage for high profile and 14-16 feet for flat profile (accounts for both sides of hip conditions). Not intended to replace mechanical fastening.
Copper is one of the most durable roof flashing materials on the market. TileSeal copper flashing with Ludowici will provide you with peace of mind that your roof investment is protected for years to come. TileSeal is highly durable and weather resistant and made of corrugated copper with a Butyl adhesive attachment—giving additional security against driving rain and snow. TileSeal copper flashing is:
| Tile Type | Size for Hips | Size for Ridge |
|---|---|---|
| Flats; Interlocking (excluding French) | 9″ | 9″ |
| French, Spanish, Conosera | 13″ | 11″ |
| All Mission | 15″ | 13″ |
*4 Rolls per box / 25 ft. per roll
Copper is one of the most durable roof flashing materials on the market. TileVent copper flashing with Ludowici will provide you with peace of mind that your roof investment is protected for years to come. TileVent is highly durable and weather resistant and made of corrugated copper with a Butyl adhesive attachment—giving additional security against driving rain and snow. TileVent copper flashing is:
| Tile Type | Size for Hips | Size for Ridge |
|---|---|---|
| Flats; Interlocking (excluding French) | 9″ | 9″ |
| French, Spanish, Conosera | 13″ | 11″ |
| All Mission | 15″ | 13″ |

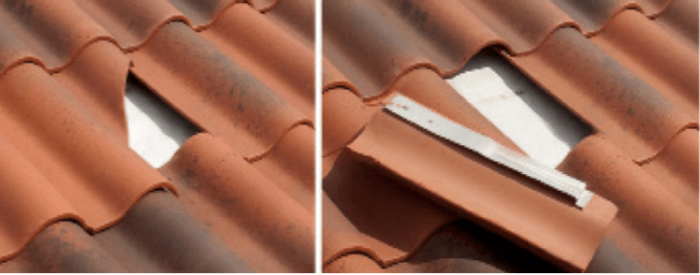

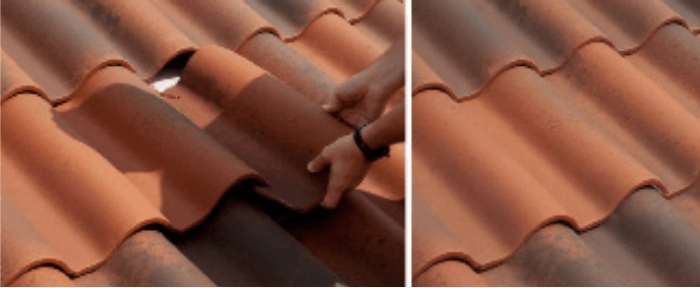

Ludowici’s Quik-Tach bracket is the quick, efficient and concealed method to replace a broken or damaged tile. Quik-Tach brackets are manufactured from 22 gauge stainless steel and are available in four sizes to work with any Ludowici roof tile.

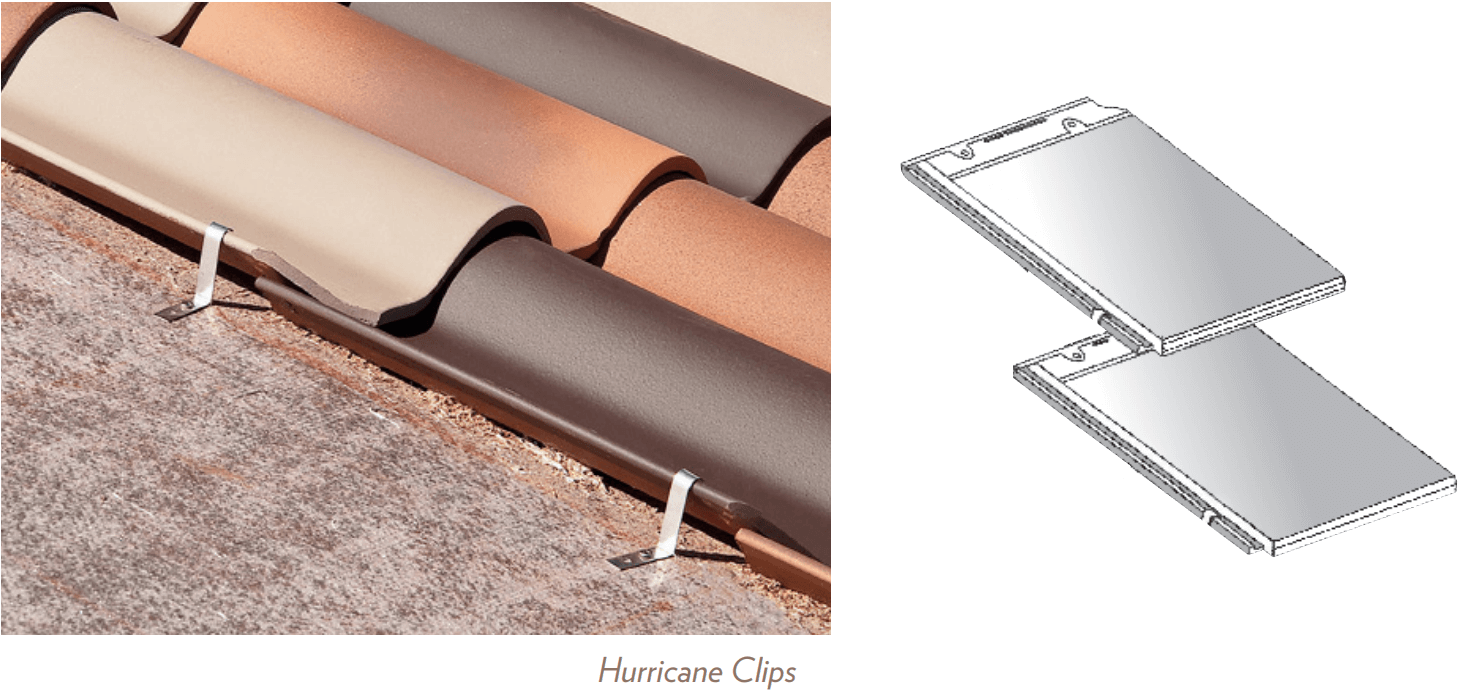

| SKU | Type | Description |
|---|---|---|
| C1.25 | Interlocking (not French) | 1-1/4” 304 Stainless Hurricane Clip |
| C1.50 | Lexington Slate | 1-1/2” 304 Stainless Hurricane Clip |
| C1.75 | French | 1-3/4” 304 Stainless Hurricane Clip |
| C2.25 | Spanish | 2-1/4” 304 Stainless Hurricane Clip |
| WIND3 | Two-piece Mission | 3″ Head lap 304 Stainless Nose Hooks |
| WIND4 | Optional | 4″ Head lap 304 Stainless Nose Hooks |
