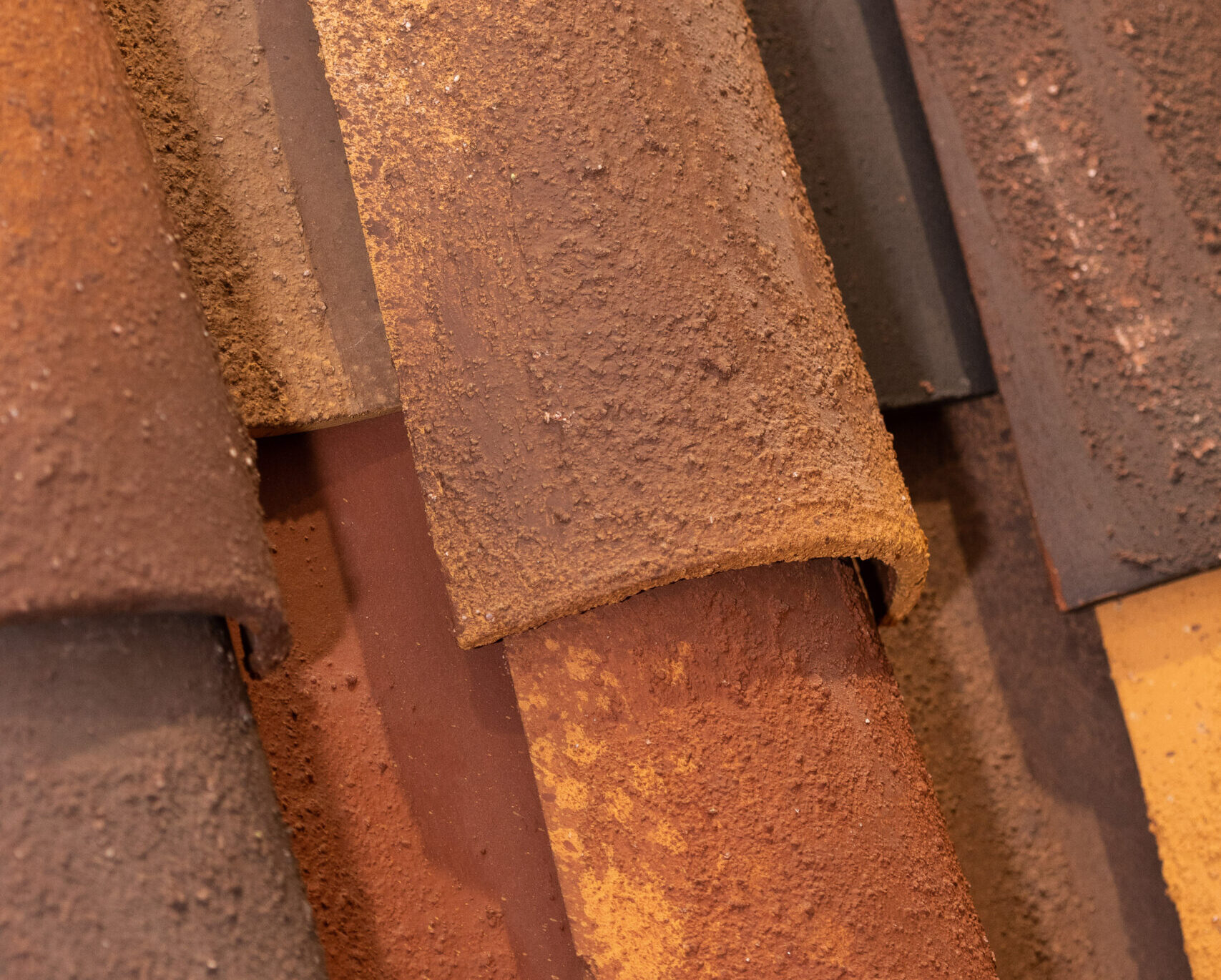

Ludowici’s Palm Beach Mission 18-3/8″ is a smooth surface mission barrel system made up of tapered covers and straight barrel pans. These longer tiles mean fewer pieces per square — making Palm Beach Mission the most economical of Ludowici’s terra cotta mission tiles. These tiles can be laid in straight rows or staggered. Palm Beach Mission tiles are standard with a smooth surface, but may be customized with a number of textures. Palm Beach Mission tiles are available in all standard and custom colors, mists and blends offered by Ludowici and are covered by our 75-year material warranty.
Palm Beach Mission Roof Tiles
Palm Beach Mission Roof Tile
Characteristic Specifications
weight per square Weight Per Square 1165 lbs.
pieces per square Pieces Per Square 163 pcs.
overall sizeOverall Size 8" x 18-3/8"
exposureExposure 11-1/2" C.C. x 15-3/8"
installed barrel height off deckInstalled Barrel Height Off Deck 4-3/8" Nominal
recommended minimum slopeRecommended Minimum Slope 5:12
base textureBase Texture Smooth
# Document Description PDF AutoCAD
1 PBM-100 SECTION AT EAVE View PDF Download AutoCAD
2 PBM-101 SECTION AT SIDE WALL View PDF Download AutoCAD
3 PBM-102 SECTION AT HEAD WALL View PDF Download AutoCAD
4 PBM-103 SECTION AT RAKE EDGE View PDF Download AutoCAD
5A PBM-200 SECTION AT CIRCULAR COVER HIP View PDF Download AutoCAD
5B PBM-201 SECTION AT #102 HIP View PDF Download AutoCAD
6A PBM-300 SECTION AT CIRCULAR COVER RIDGE View PDF Download AutoCAD
6B PBM-301 SECTION AT CIRCULAR COVER VENTED RIDGE View PDF Download AutoCAD
6C PBM-302 SECTION AT #206 RIDGE View PDF Download AutoCAD
6D PBM-303 SECTION AT #206 VENTED RIDGE View PDF Download AutoCAD
7A PBM-400 SECTION AT FIELD CUT VALLEY View PDF Download AutoCAD
7B PBM-401 SECTION AT CUT AND CLOSED VALLEY View PDF Download AutoCAD

Download All Technical Details

PDF AUTOCAD

Download Installation Manuals

English Spanish
# Accessory Description
1 Terminal

Terminal

A tile installed at the intersection of hip(s) and ridge(s).

2 Ridge Tile

Ridge Tile

A tile that is shaped to cover the uppermost horizontal part of the roof.

3 Hip Starter

Hip Starter

A tile installed at the bottom of the hip, also known as bullnose.

4 Closed Ridge End

Closed Ridge End

Closed-end tile installed at the gable end of the ridge.

5 Hip Tile

Hip Tile

A tile that is shaped to cover the external angle formed by the intersection of 2 sloped planes.

Colors

Ludowici’s Palm Beach Mission clay roof tile is available in all standard and custom colors developed by Ludowici.

Textures

Ludowici’s Palm Beach Mission clay roof tile features a smooth base texture and is available in the following custom textures:

Terra Cotta Glazes


Browse Colors

Terra Cotta Textures


Browse Textures
Miami-Dade NOA No. 23-0125.08 Mission

Miami-Dade NOA No. 23-0125.08 Mission

Download
Texas Department of Insurance - Evaluation Report

Texas Department of Insurance - Evaluation Report

Download
IAPMO E1077 R0452

IAPMO E1077 R0452

Download
Florida Building Code - Evaluation Report

Florida Building Code - Evaluation Report

Download
Ludowici Clay Roofing Tile - Glazed & Unglazed OSHA GHS SDS 2014

Ludowici Clay Roofing Tile - Glazed & Unglazed OSHA GHS SDS 2014

Download
Ludowici Clay Roofing Tile - Glazed & Unglazed China GHS SDS 2014

Ludowici Clay Roofing Tile - Glazed & Unglazed China GHS SDS 2014

Download

Samples & Pricing


Contact Ludowici today to order samples, review pricing and more.

Order Now
