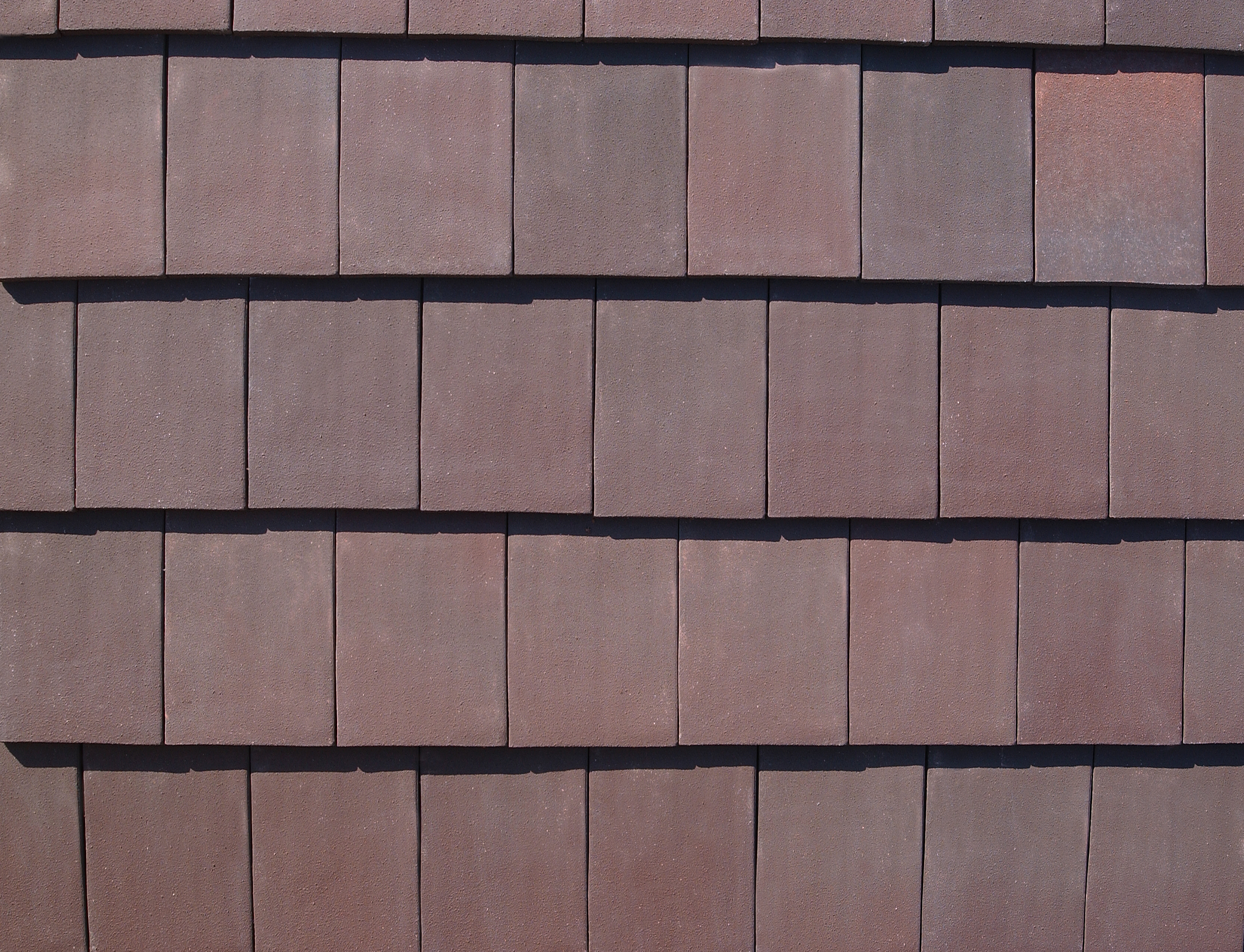

Ludowici’s Lanai 16″ interlocking roof tile has a square butt with a sandblasted surface. Its clean, uniform look complements any architectural style. This larger 16″ size means fewer pieces per square for a more economical installation. Lanai is available in a smaller 14″ profile and can be applied with any of our standard and custom colors, mists, and blends and is covered by our 75-year material warranty. Lanai is part of a special product line that can be used in roof tile or wall cladding applications.  This wall cladding technique is made with Terreal North America’s NeXclad 14 or NeXclad 16 product.
Lanai 16″ Roof Tiles
Lanai 16″ Roof Tile
Characteristic Specifications
weight per square Weight Per Square 750 lbs.
pieces per square Pieces Per Square 109 pcs.
overall sizeOverall Size 10-3/4" x 16" x 7/8"
exposureExposure 10-1/8" x 13" x 7/8"
installed barrel height off deckInstalled Barrel Height Off Deck N/A
recommended minimum slopeRecommended Minimum Slope 3:12
base textureBase Texture Weathered
# Document Description PDF AutoCAD
1 LANAI_16-100 SECTION AT EAVE WITH UNDER EAVE View PDF Download AutoCAD
2 LANAI_16-101 SECTION AT SIDE WALL View PDF Download AutoCAD
3 LANAI_16-102 SECTION AT HEAD WALL View PDF Download AutoCAD
4 LANAI_16-103 SECTION AT RAKE EDGE WITH DETACHED RAKE View PDF Download AutoCAD
5A LANAI_16-200 SECTION AT V-HIP View PDF Download AutoCAD
5B LANAI_16-201 SECTION AT #118 HIP View PDF Download AutoCAD
6A LANAI_16-300 SECTION AT V-RIDGE View PDF Download AutoCAD
6B LANAI_16-301 SECTION AT #211 RIDGE View PDF Download AutoCAD
6C LANAI_16-302 SECTION AT #211 VENTED RIDGE View PDF Download AutoCAD
7 LANAI_16-400 SECTION AT FIELD CUT VALLEY View PDF Download AutoCAD

Download All Technical Details

PDF AUTOCAD

Download Installation Manuals

English
# Accessory Description
1 Terminal

Terminal

A tile installed at the intersection of hip(s) and ridge(s).
2 Ridge Tile

Ridge Tile

A tile that is shaped to cover the uppermost horizontal part of the roof.
3 Hip Starter

Hip Starter

A tile installed at the bottom of the hip, also known as bullnose.
4 Closed Ridge End

Closed Ridge End

Closed-end tile installed at the gable end of the ridge.
5 Hip Tile

Hip Tile

A tile that is shaped to cover the external angle formed by the intersection of 2 sloped planes.

Colors

Ludowici’s Lanai 16” clay roof tile is available in all standard and custom colors developed by Ludowici.

Textures

Ludowici’s Lanai 14” clay roof tile features a weathered base texture. If you prefer a smooth texture, please see Classic 16″.  Lanai 16″ can be customized with the following textures:

Terra Cotta Glazes


Browse Colors

Terra Cotta Textures


Browse Textures
Miami Dade NOA No. 23-0125.11

Miami Dade NOA No. 23-0125.11

Download
Texas Department of Insurance - Evaluation Report

Texas Department of Insurance - Evaluation Report

Download
IAPMO Evaluation Report

IAPMO Evaluation Report

Download
Florida Building Code - Evaluation Report

Florida Building Code - Evaluation Report

Download
Ludowici Clay Roofing Tile - Glazed & Unglazed OSHA GHS SDS 2014

Ludowici Clay Roofing Tile - Glazed & Unglazed OSHA GHS SDS 2014

Download
Ludowici Clay Roofing Tile - Glazed & Unglazed China GHS SDS 2014

Ludowici Clay Roofing Tile - Glazed & Unglazed China GHS SDS 2014

Download
Environmental Product Declaration

Environmental Product Declaration

Download
Download Product Sheet Talk to a Tile Expert View in Gallery

Samples & Pricing

Contact Ludowici today to order samples, review pricing and more.
