NeXclad 14

Ludowici’s NeXclad 14 is a terra cotta cladding solution that enhances both aesthetics and functionality. Its sleek design, suitable for rainscreen applications, improves structure longevity by acting as a protective second skin. With year-round installation capability, low maintenance costs, and sustainable materials, NeXclad 14 offers unparalleled versatility and longevity.  NeXclad 14 cladding is available in all standard and custom colors, mists and blends offered by LudowiciNeXclad is also available in a larger 16″ profile.
Ludowici’s NeXclad 14 cladding is covered by a 75-year material warranty.
Product Data Sheet
Characteristic Specifications
weight per square Weight Per Square 800 lbs.
pieces per square Pieces Per Square 158 pcs.
overall sizeOverall Size 9" x 14" x 7/8"
exposureExposure 8-1/4" x 11" x 7/8"
installed barrel height off deckInstalled Barrel Height Off Deck N/A
base textureBase Texture Smooth

Wall Cladding Details

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

Typical Framed Wall Details

# Title Preview PDF DWG Revit

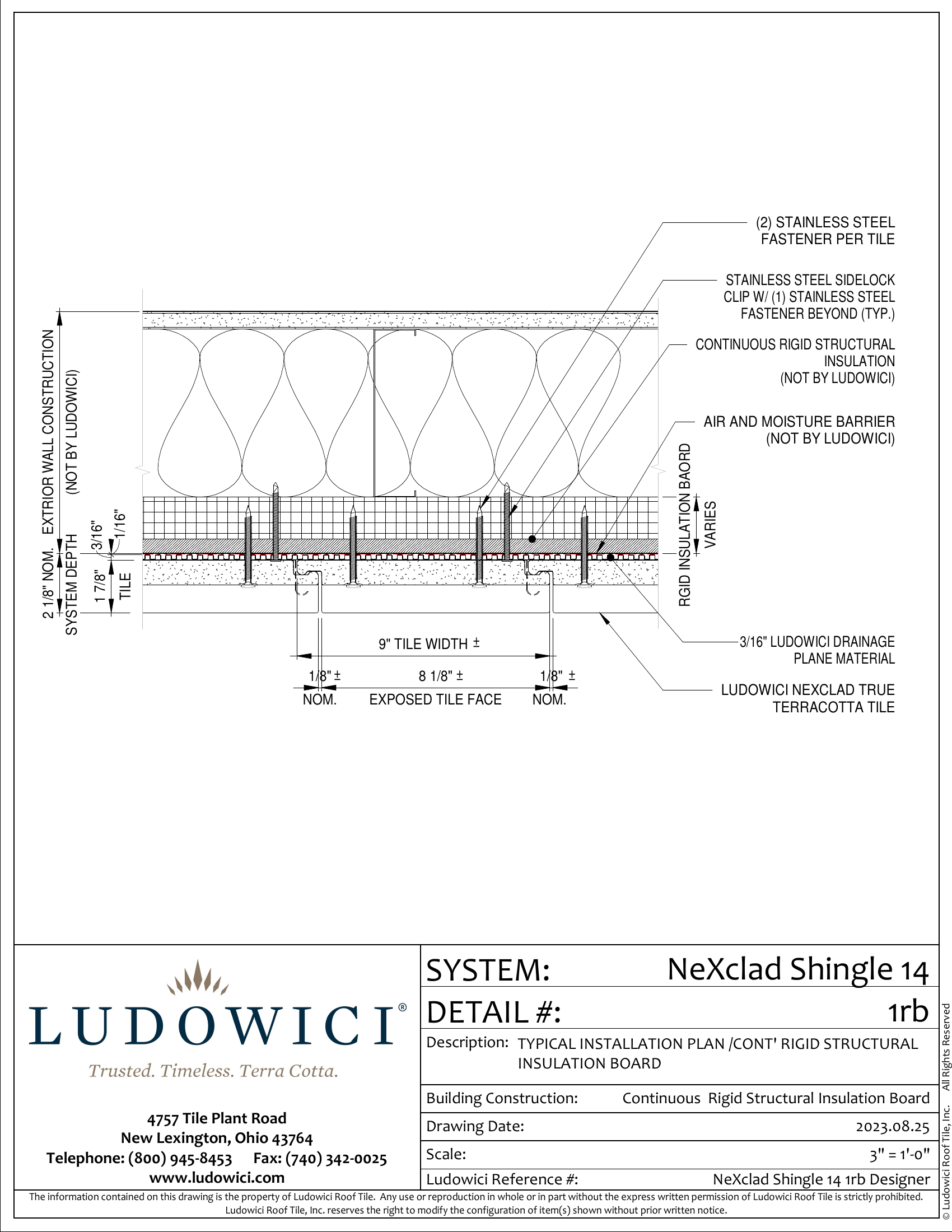

1 TYPICAL INSTALLATION PLAN

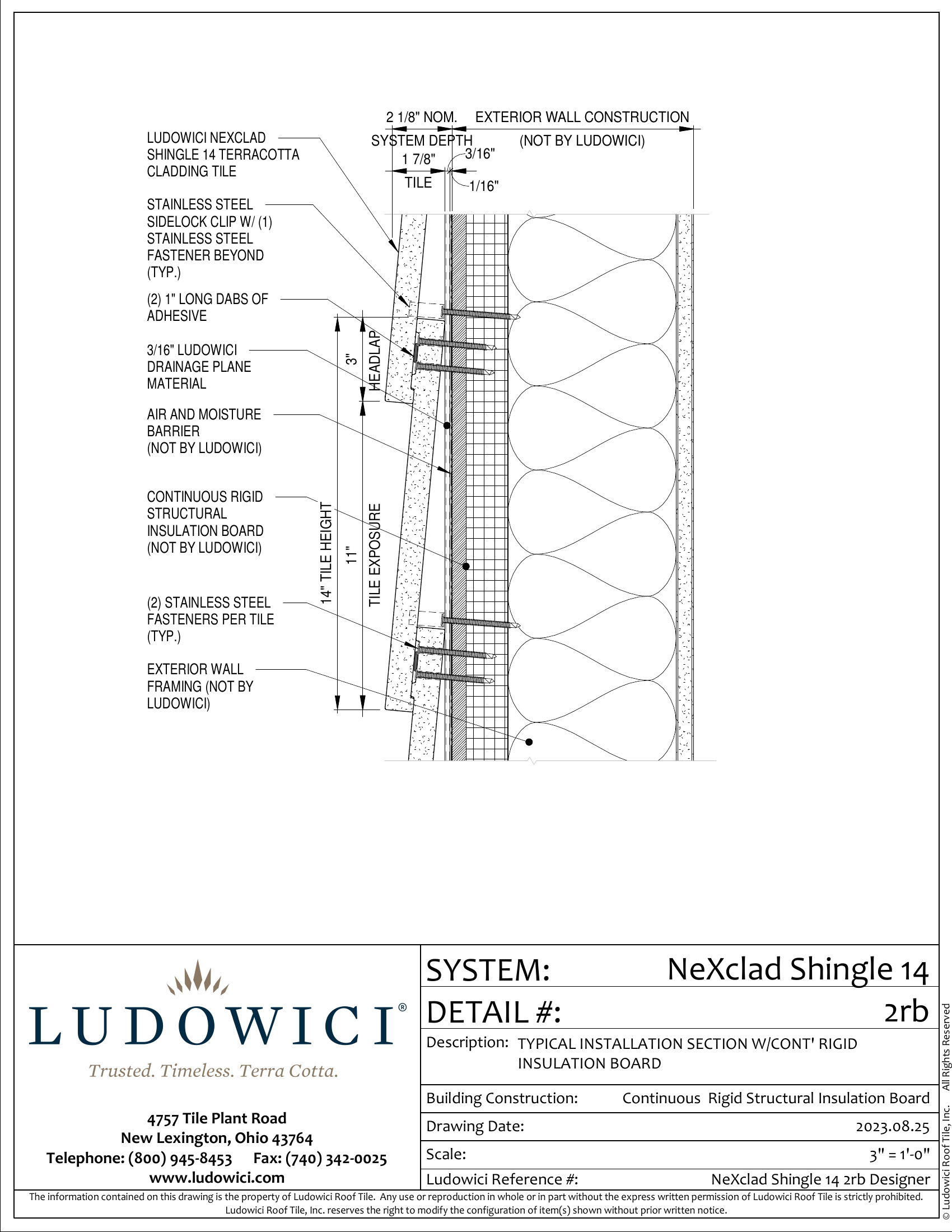

2 TYPICAL INSTALLATION SECTION
3 EXTERNAL CORNER PLAN DETAIL - COURSING TILE

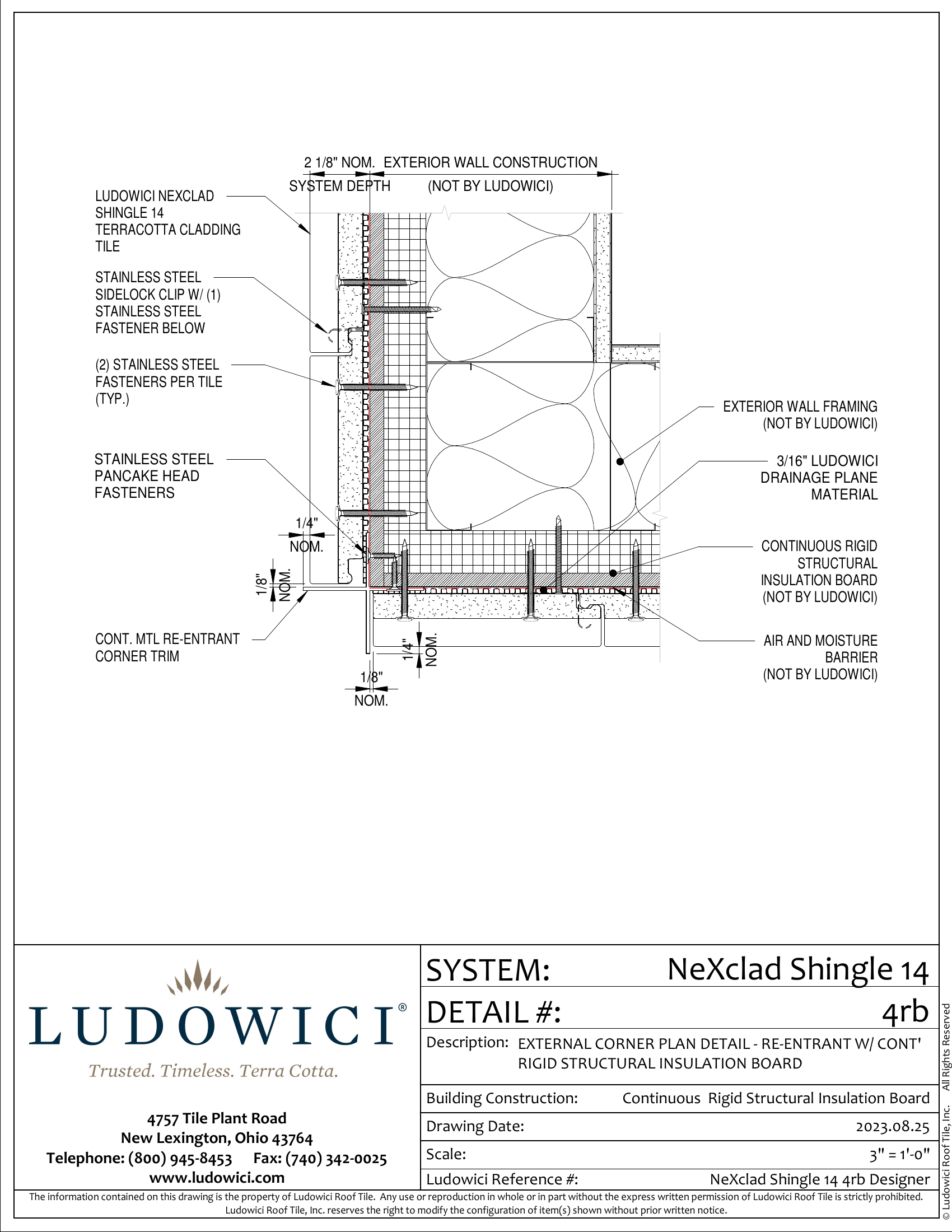

4 EXTERNAL CORNER PLAN DETAIL - RE-ENTRANT

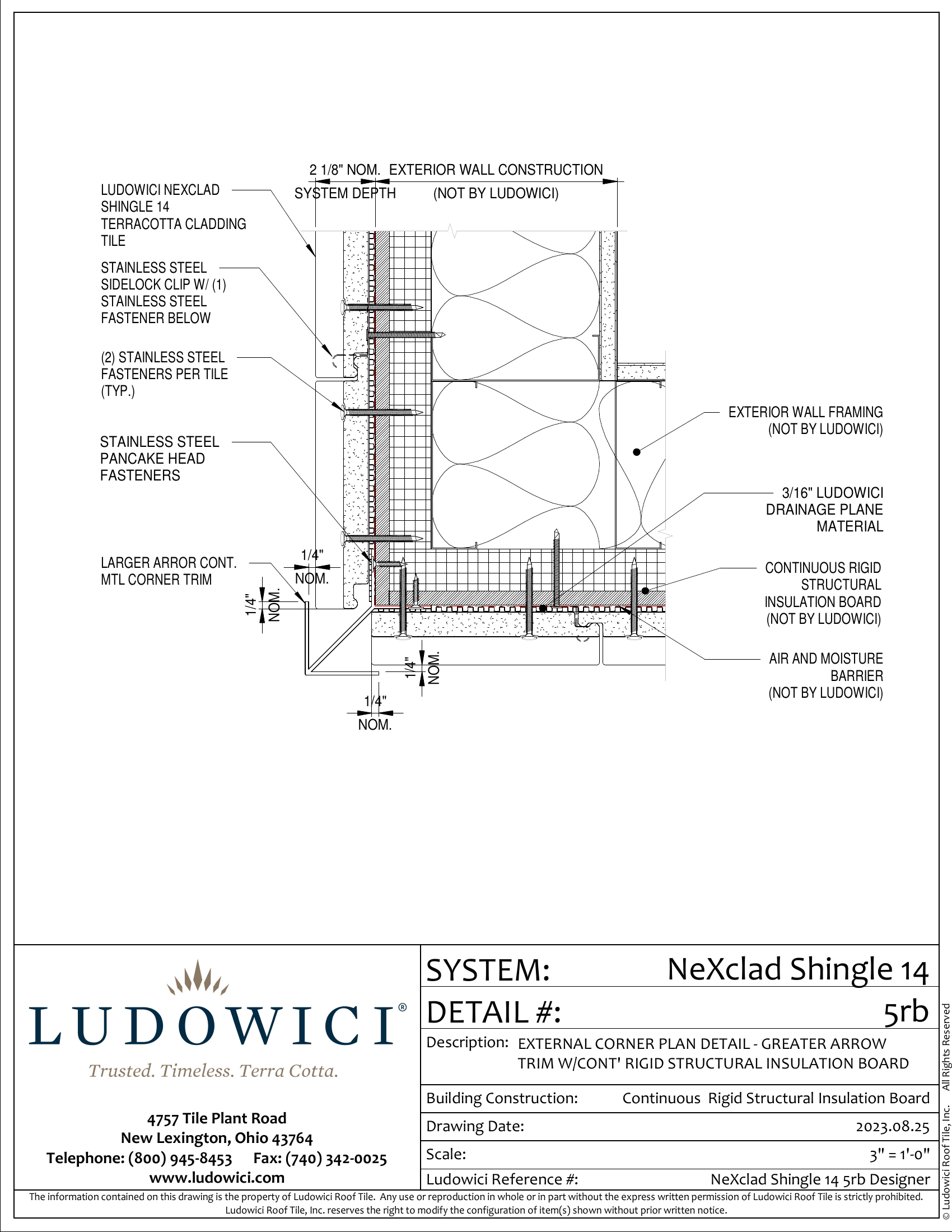

5 EXTERNAL CORNER PLAN DETAIL - GREATER ARROW MTL CORNER TRIM
6 EXTERNAL CORNER PLAN DETAIL - LESSER ARROW MTL CORNER TRIM

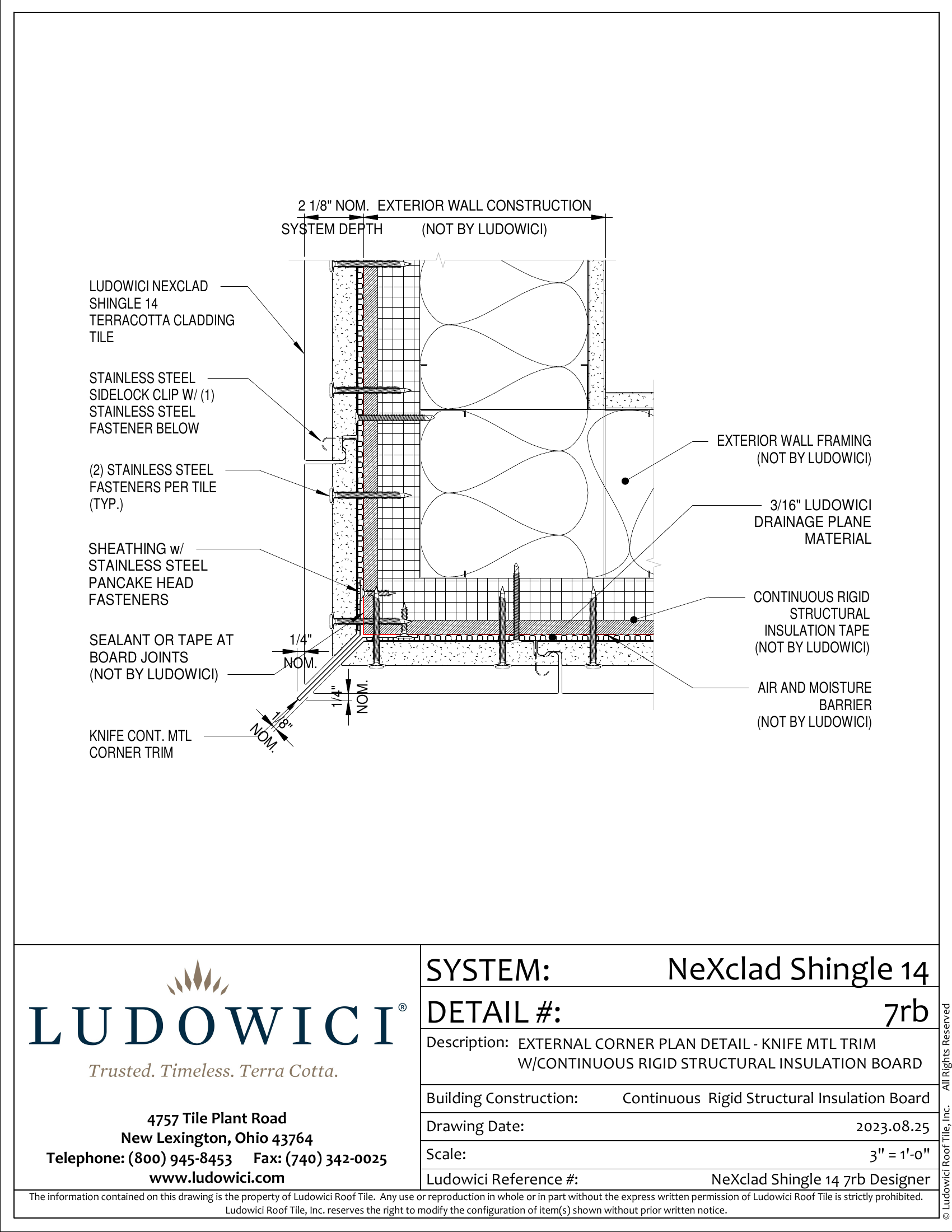

7 EXTERNAL CORNER PLAN DETAIL - KNIFE MTL CORNER TRIM
8 EXTERNAL CORNER PLAN DETAIL -L MTL CORNER TRIM

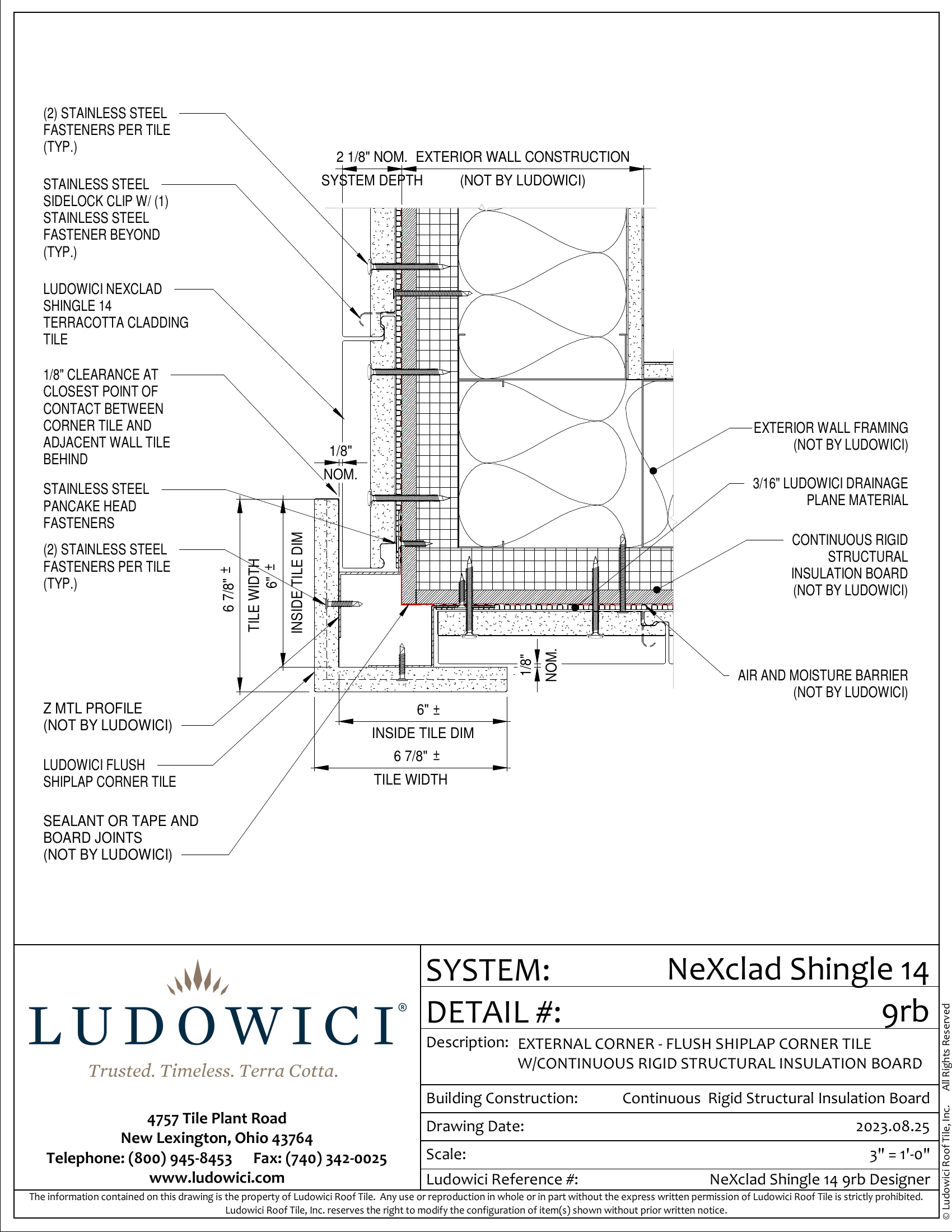

9 EXTERNAL CORNER - FLUSH SHIPLAP CORNER TILE

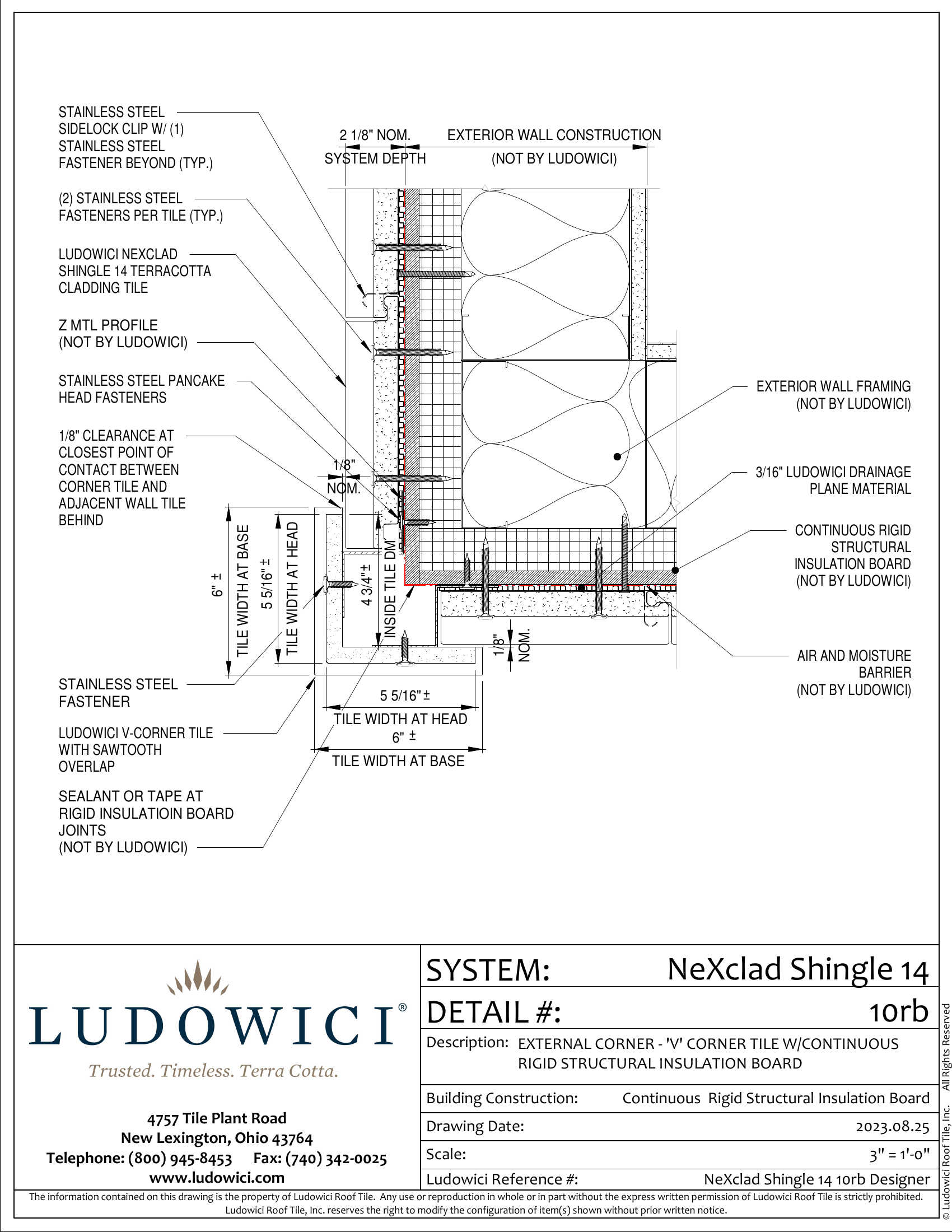

10 EXTERNAL CORNER - 'V' CORNER TILE

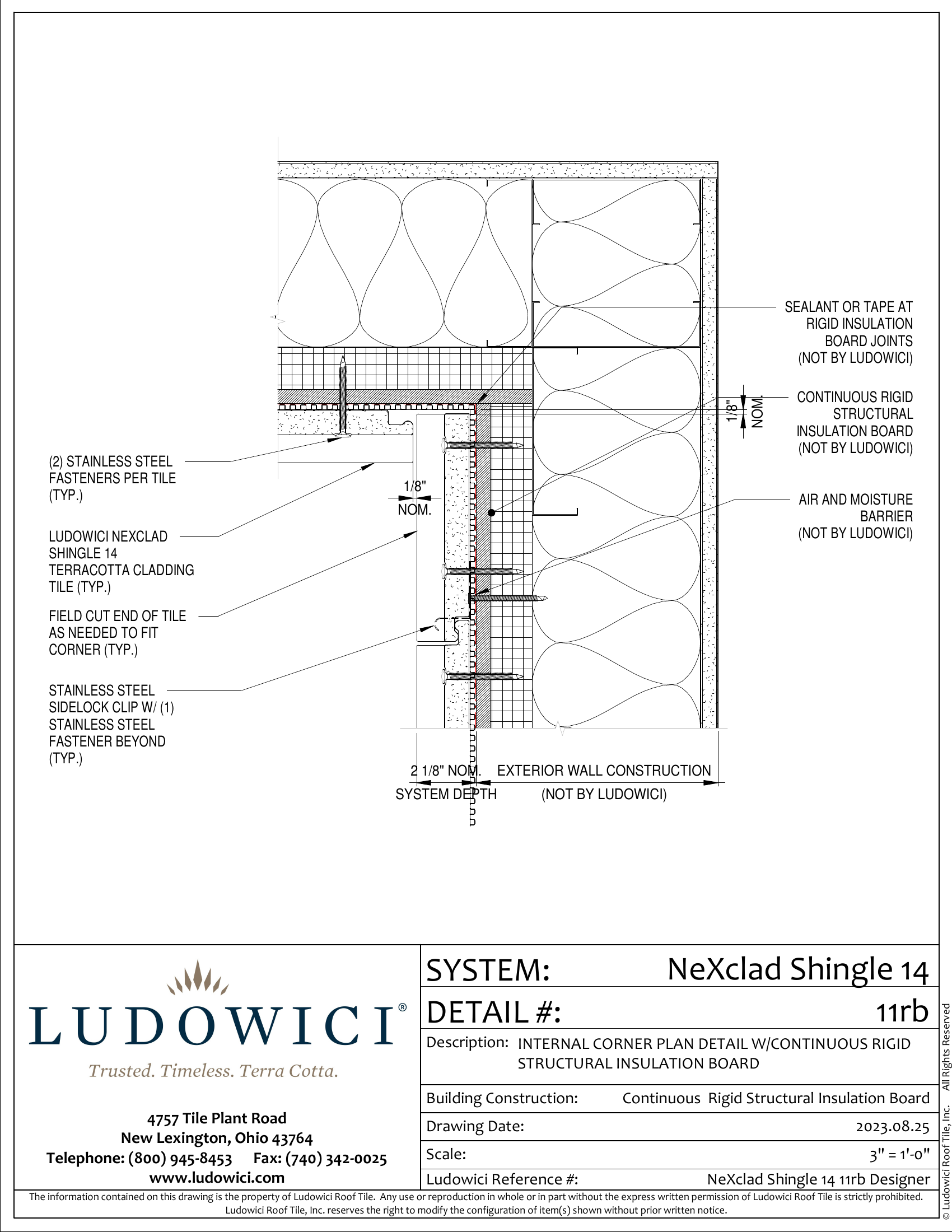

11 INTERNAL CORNER PLAN DETAIL

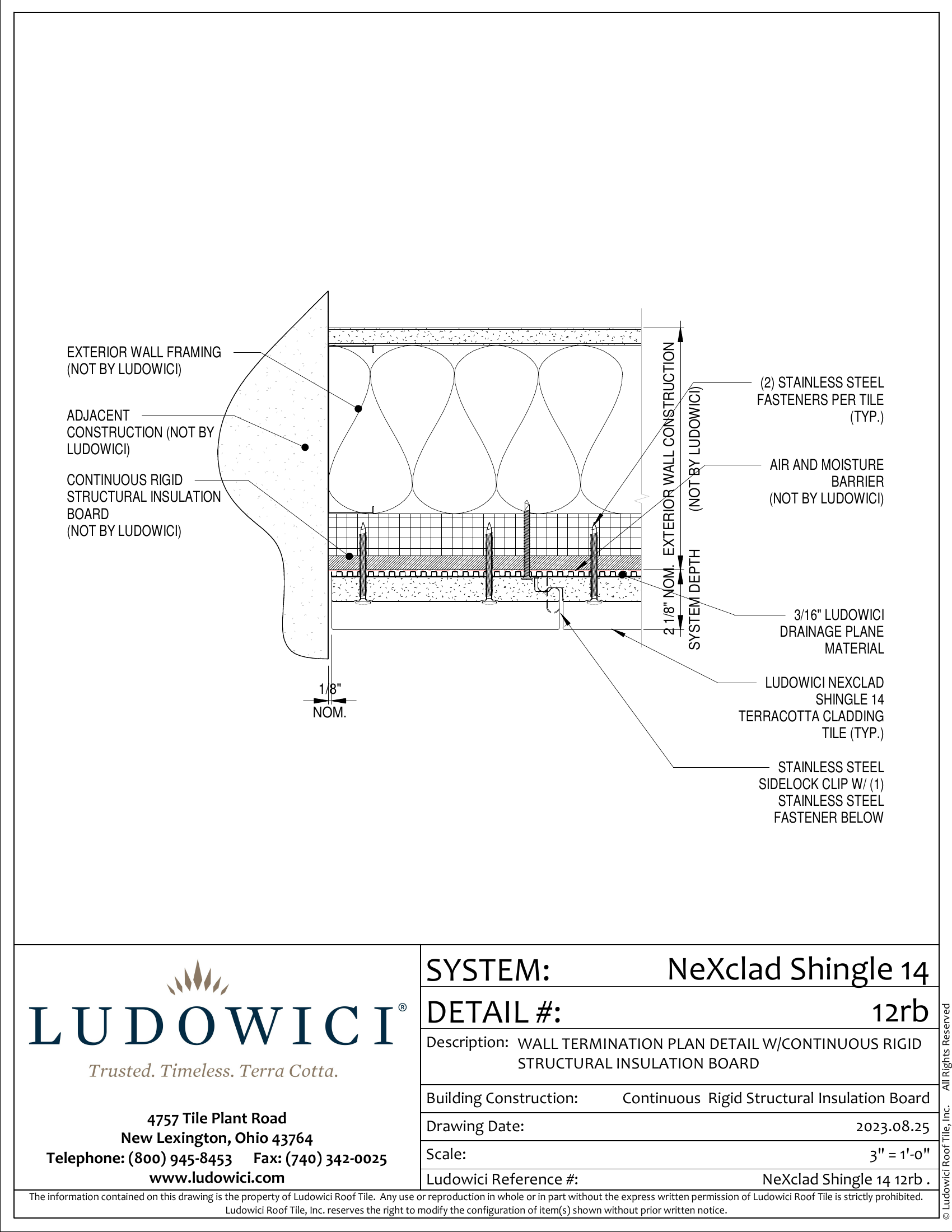

12 WALL TERMINATION PLAN DETAIL

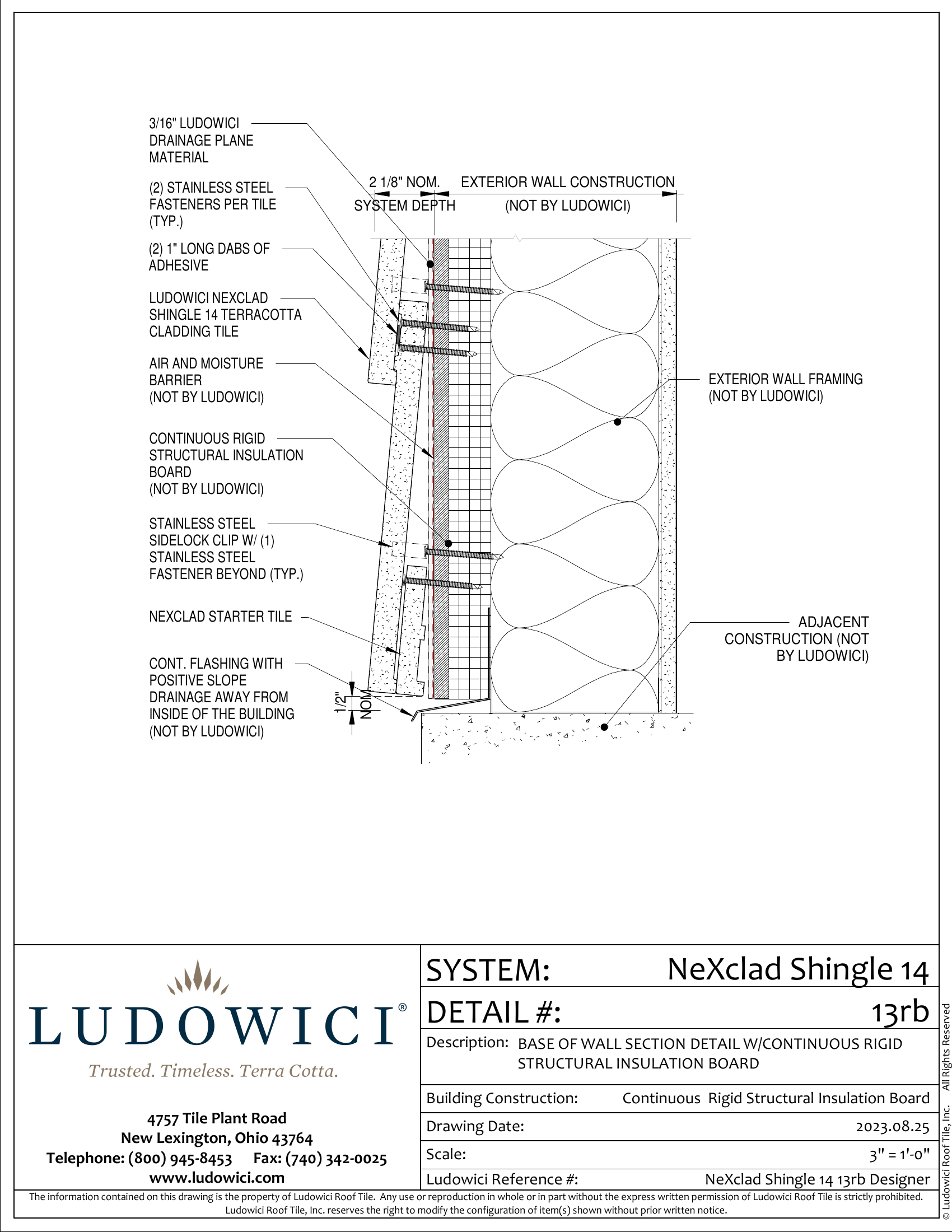

13 BASE OF WALL SECTION DETAIL

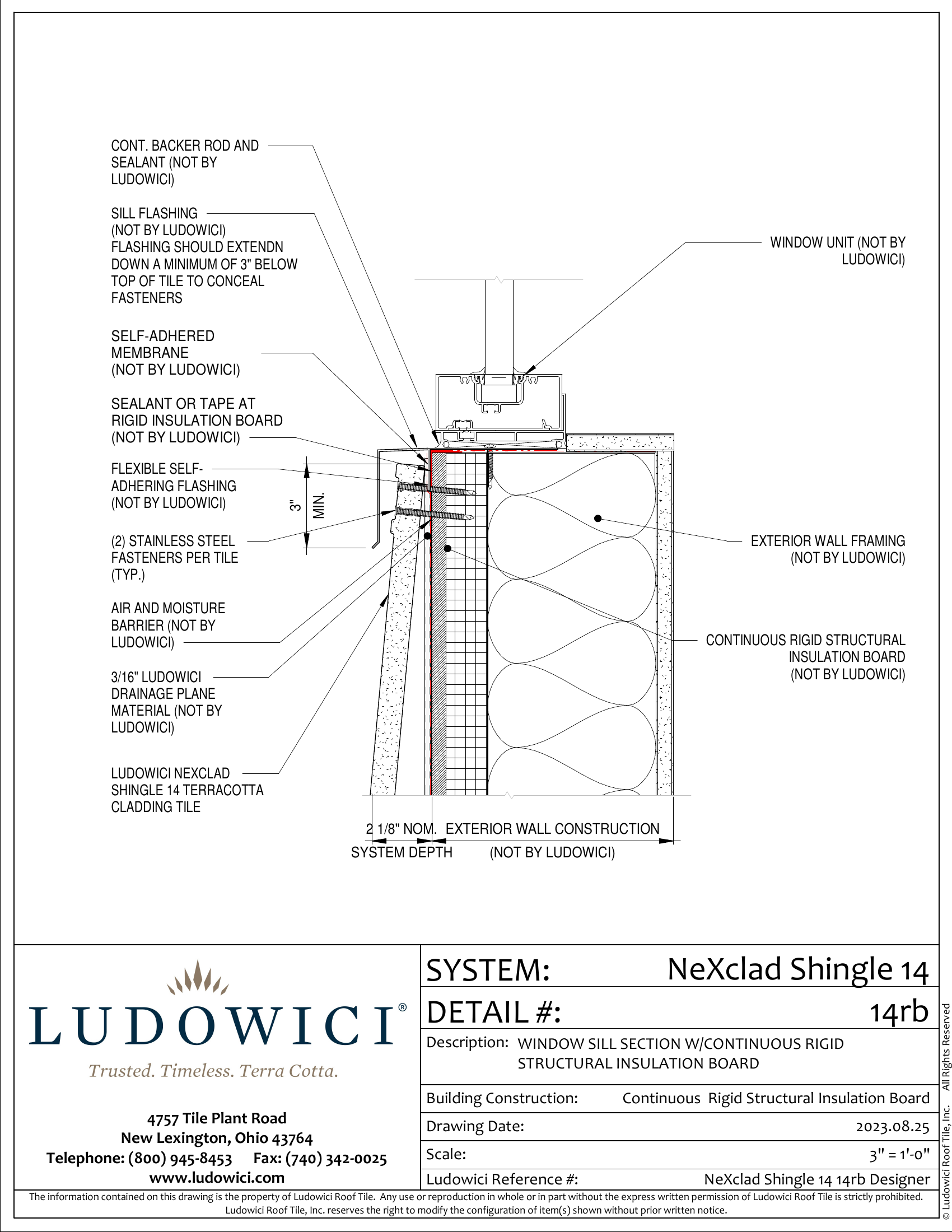

14 WINDOW SILL SECTION

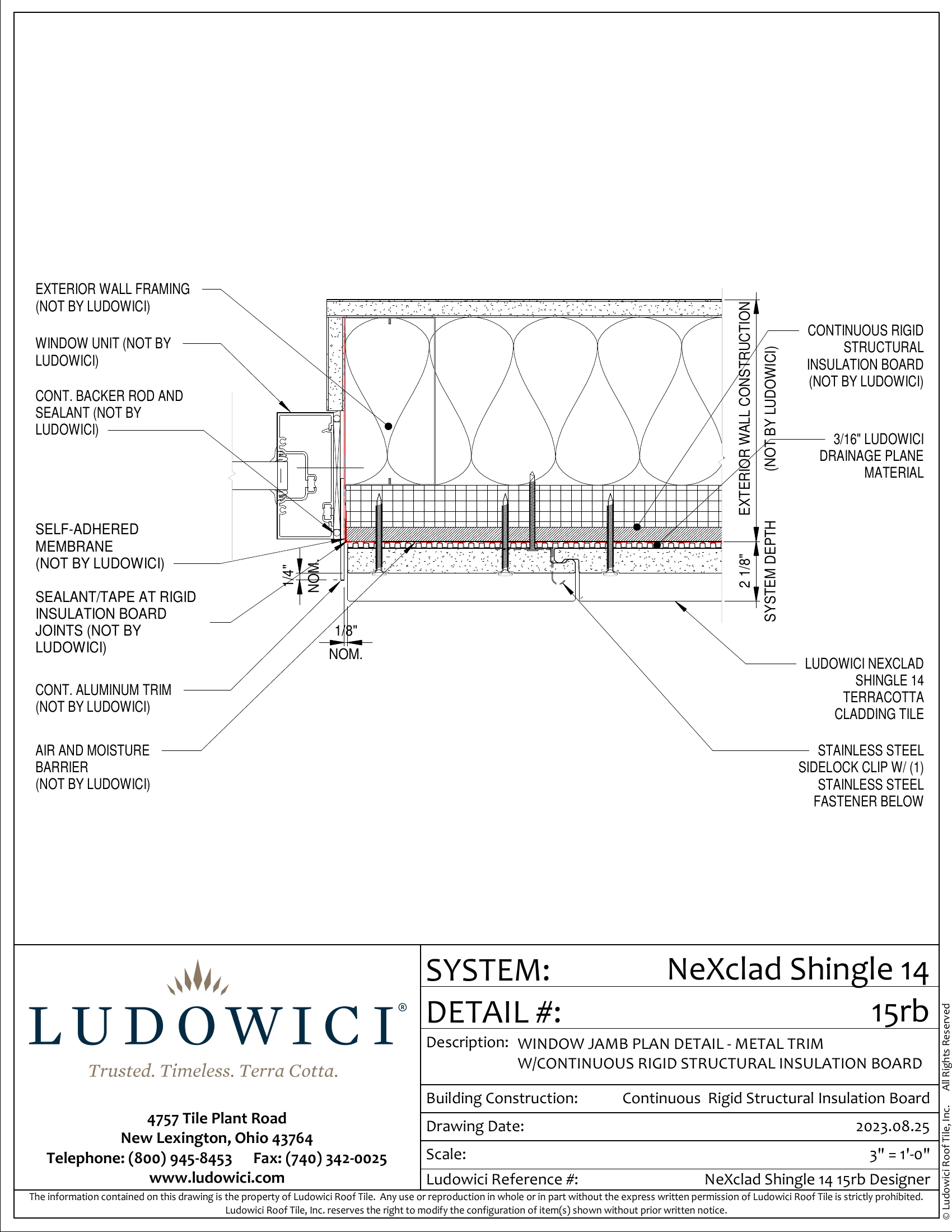

15 WINDOW JAMB PLAN DETAIL - METAL TRIM

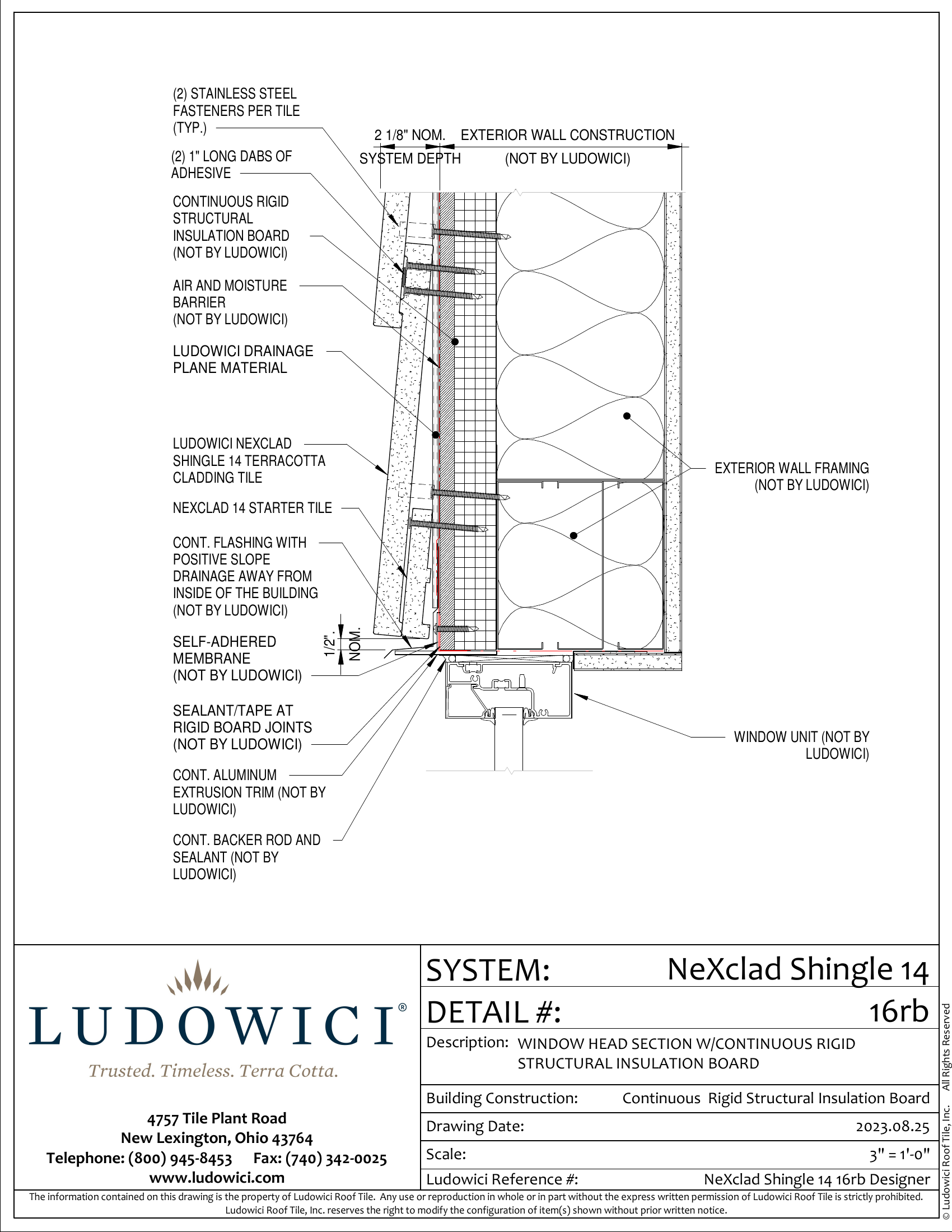

16 WINDOW HEAD SECTION

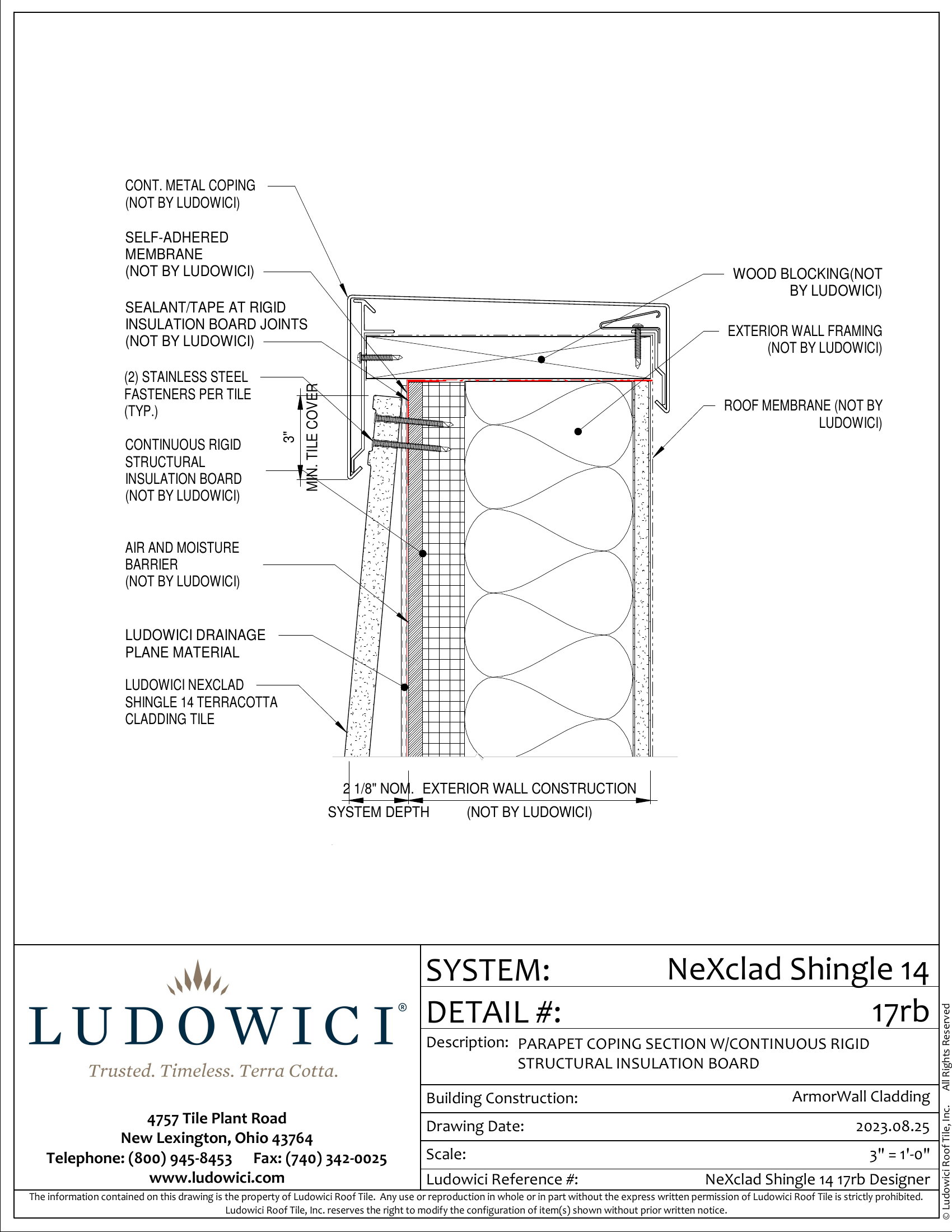

17 PARAPET COPING SECTION

Colors

Ludowici’s NeXclad 14” clay tile is available in all standard and custom colors developed by Ludowici.

Textures

Ludowici’s NeXclad 14″ wall cladding comes in the following textures.

  • Smooth (Classic)
  • Weathered (Lanai)
  • Pressed Bark (Americana)
  • Sawn Wood Shake (Williamsburg)
  • Custom
