Designed to last. Crafted to inspire. Introducing NeXclad True.

where innovation meets tradition

NeXclad True is the newest terracotta cladding solution from Ludowici. Designed to install with a flush surface texture, this small module terracotta cladding offers design professionals the durability and customization capabilities of a NeXclad clay tile with the sleek streamlined look of a flush panel. NeXclad’s ease of installation provides an extremely economical classic cladding solution, while providing limitless color options to realize a building’s design aesthetic.  NeXclad True is currently available in an 12”x 8” tile module and smooth surface texture with a 75-year material warranty.
talk to a tile expert

unmatched durability

Backed by a 75-year material warranty, engineered to withstand the elements.

Sustainable & high-performance

Natural terracotta material enhances thermal efficiency and long-term resilience.

limitless design potential

Choose from Ludowici’s extensive palette of colors, textures, and custom finishes.

WALL CLADDING INSTALLATION​

The most efficient way to install NeXclad small-module, mechanically anchored terracotta tiles is by securing them to a structural sheathing board. Traditionally, these structural wall boards are installed over a stud wall system with interior insulation (referred to as Traditional Wall Construction – Structural Sheathing Over Studs with Interior Insulation).

To enhance thermal efficiency, modern wall/building construction often utilizes Structural Insulated Sheathing (SIS) boards, which provide the building design with continuous exterior insulation. NeXclad small-format terracotta tiles can be installed over both traditional and SIS-based wall systems, delivering exceptional durability, a sleek flush aesthetic, and a virtually unlimited range of colors.

Ludowici offers comprehensive technical support, including CAD files and REVIT models, for these two primary wall construction types:

1. Stud Walls with Structural Insulated Sheathing (SIS) Boards – Designed for continuous exterior insulation.

2. Stud Walls with Structural Sheathing – Traditional construction with interior insulation placed between the wall studs.

Continuous Rigid Insulation Wall

Stud Walls with Structural Insulated Sheathing (SIS) Boards

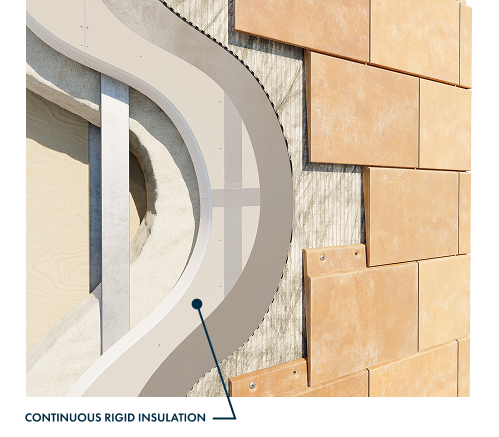

This system incorporates a continuous layer of rigid insulation applied to the building’s exterior, using a structural insulated sheathing (SIS) board. By minimizing thermal bridging, this method ensures greater energy efficiency while providing a secure substrate for NeXclad installation.

NeXclad Terra Cotta Integration:
• Direct installation over SIS boards with mechanical anchors into the structural facer board adhered to continuous rigid insulation, positioned outside the building’s waterproofing membrane and Ludowici’s drainage mat.
• Mechanical fasteners securely attach NeXclad tiles to the structural substrate without requiring additional mounting systems.
• CAD/REVIT models and PDF details below provide installation specifications.

Stud Walls with Structural Insulated Sheathing (SIS) Boards Details
Installation details over Continuous Rigid Insulation

Ideal for modern wood or steel-framed construction, this lightweight system simplifies installation while allowing for greater insulation and moisture control. With NeXclad’s precision engineering, framed wall installations achieve the look of classic terracotta with the efficiency of contemporary construction methods.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# Title Preview PDF DWG Revit

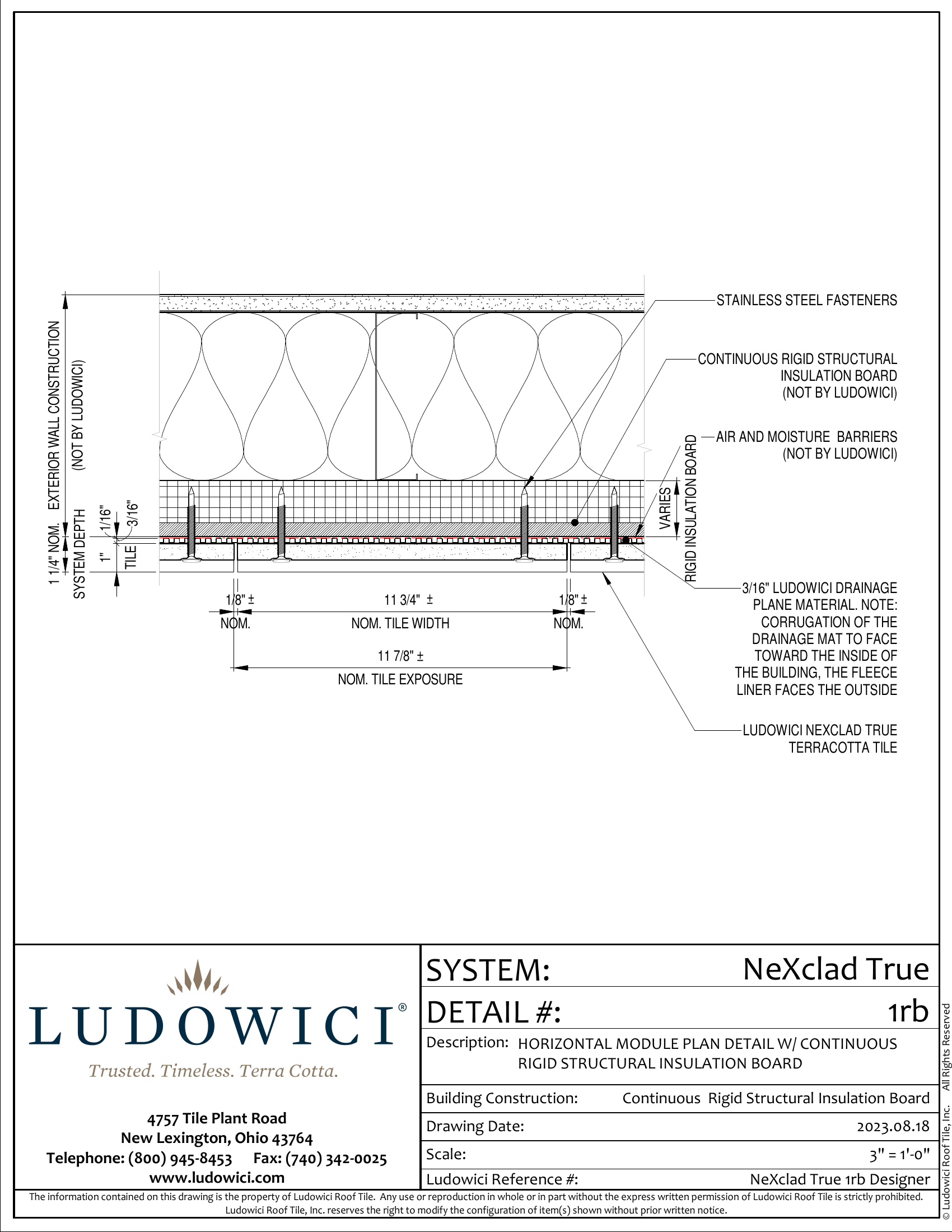

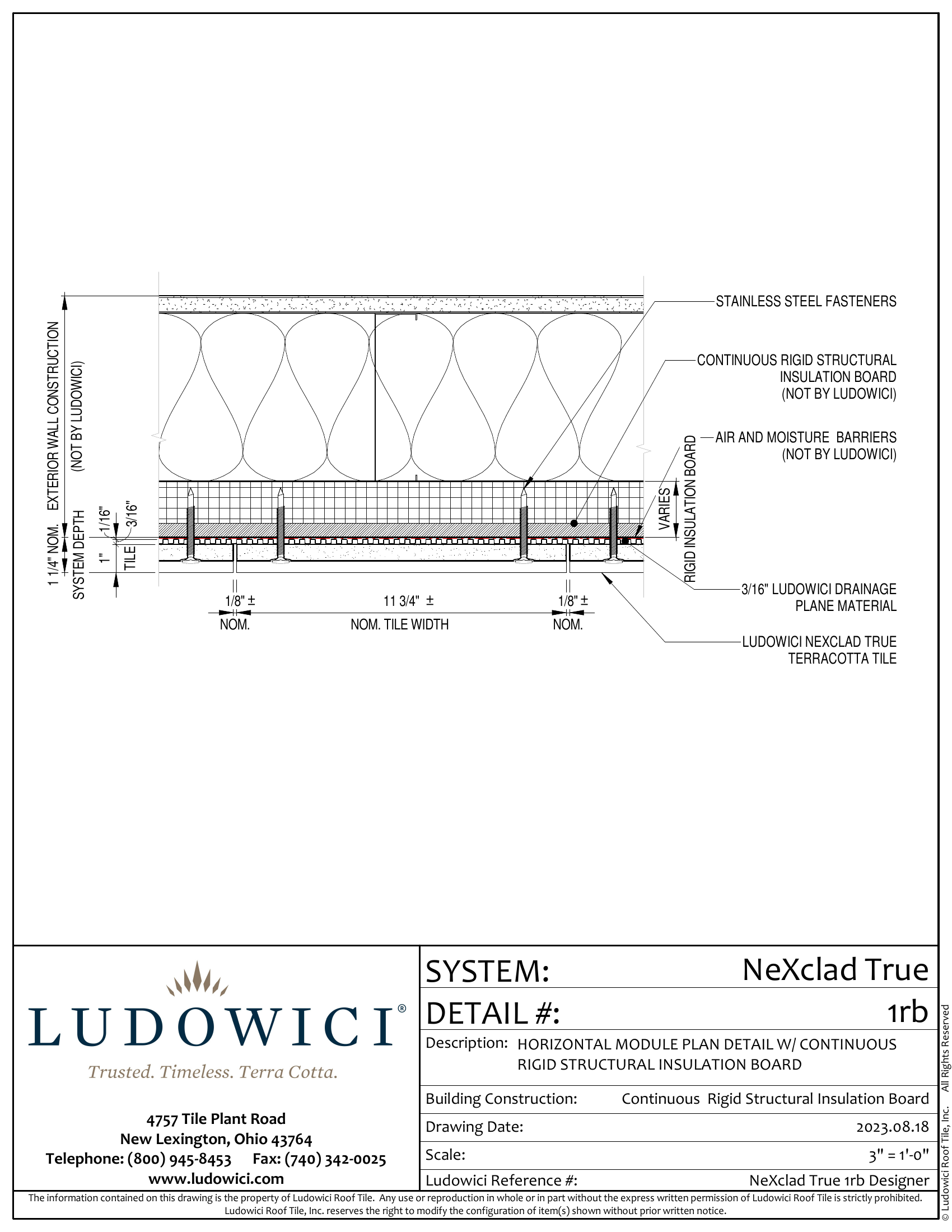

1 Horizontal Module Plan Detail w/ Cont Rigid Structural Insulation Board

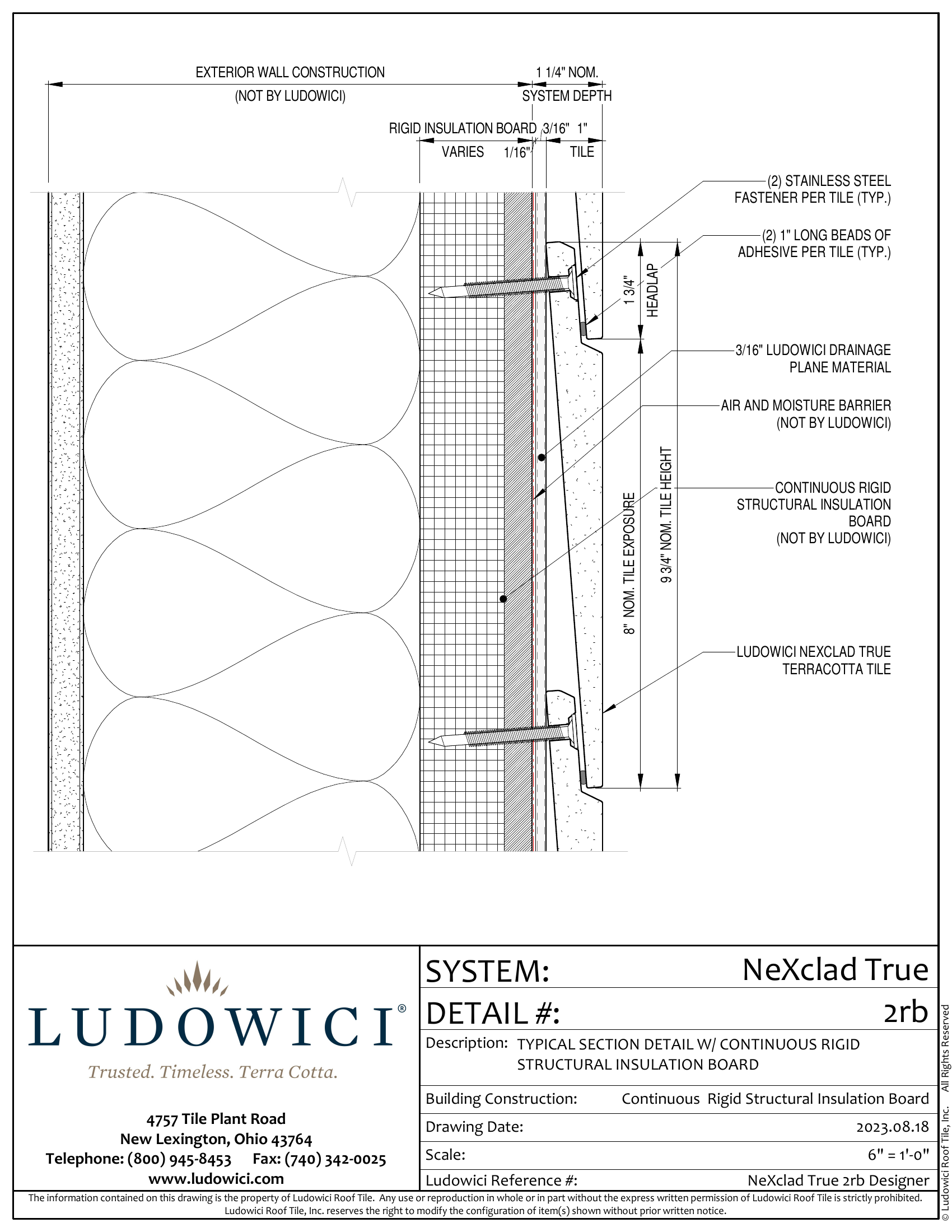

2 Typical Section Detail w/ Cont Rigid Structural Insulation Board
3 External Corner Detail - Two-Piece Tile W-Rigid Insulation Board

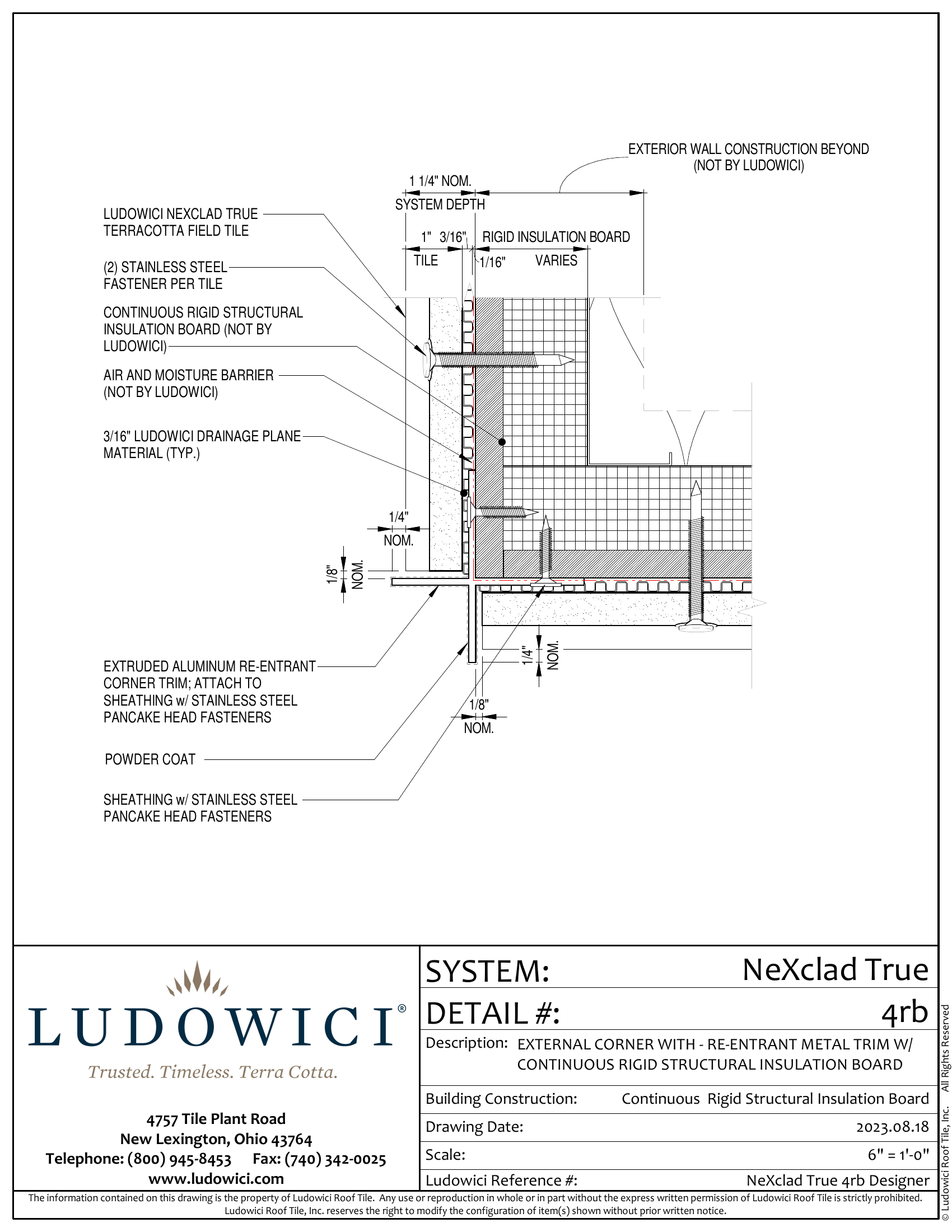

4 External Corner With - Re-entrant Metal Trim w/ Cont Rigid Structural Insulation Board

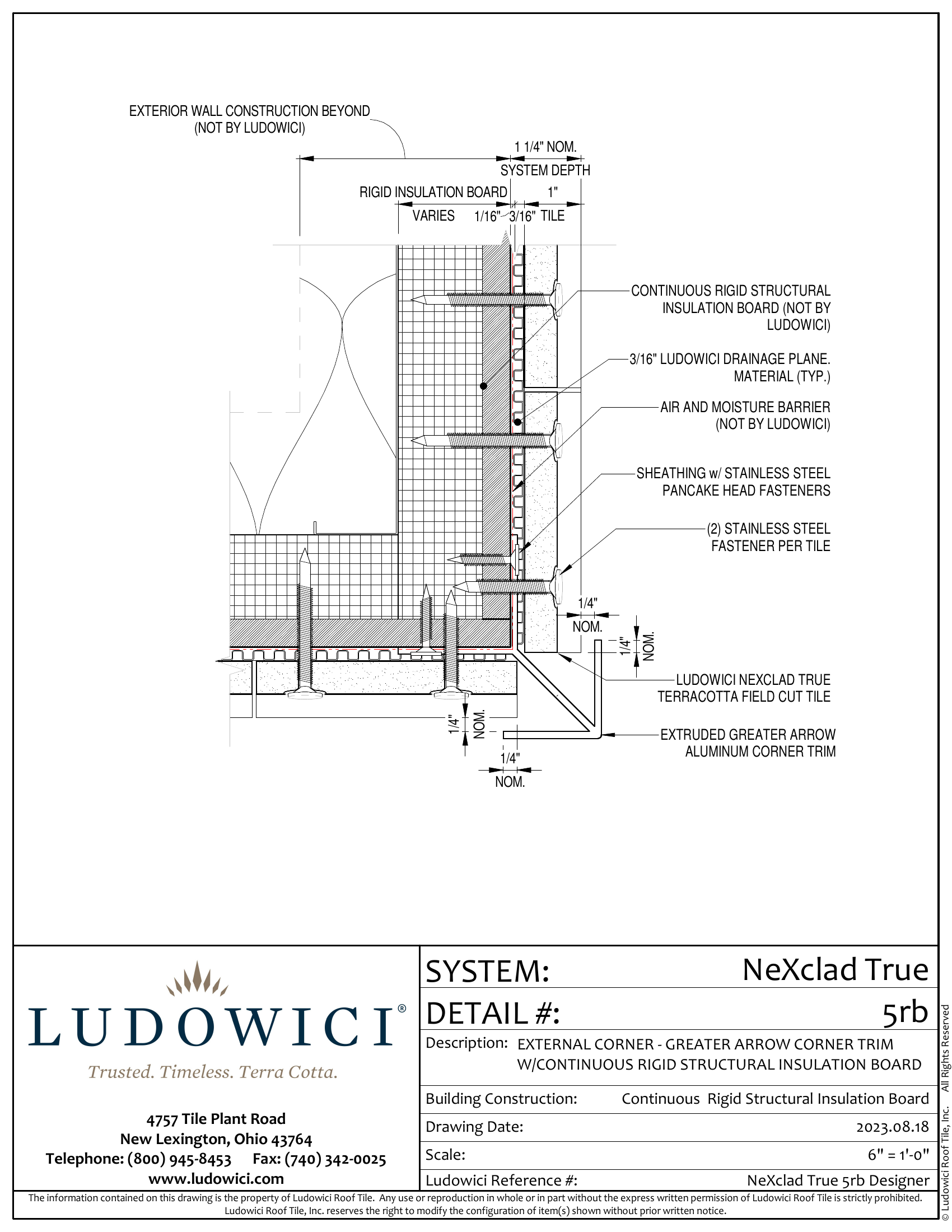

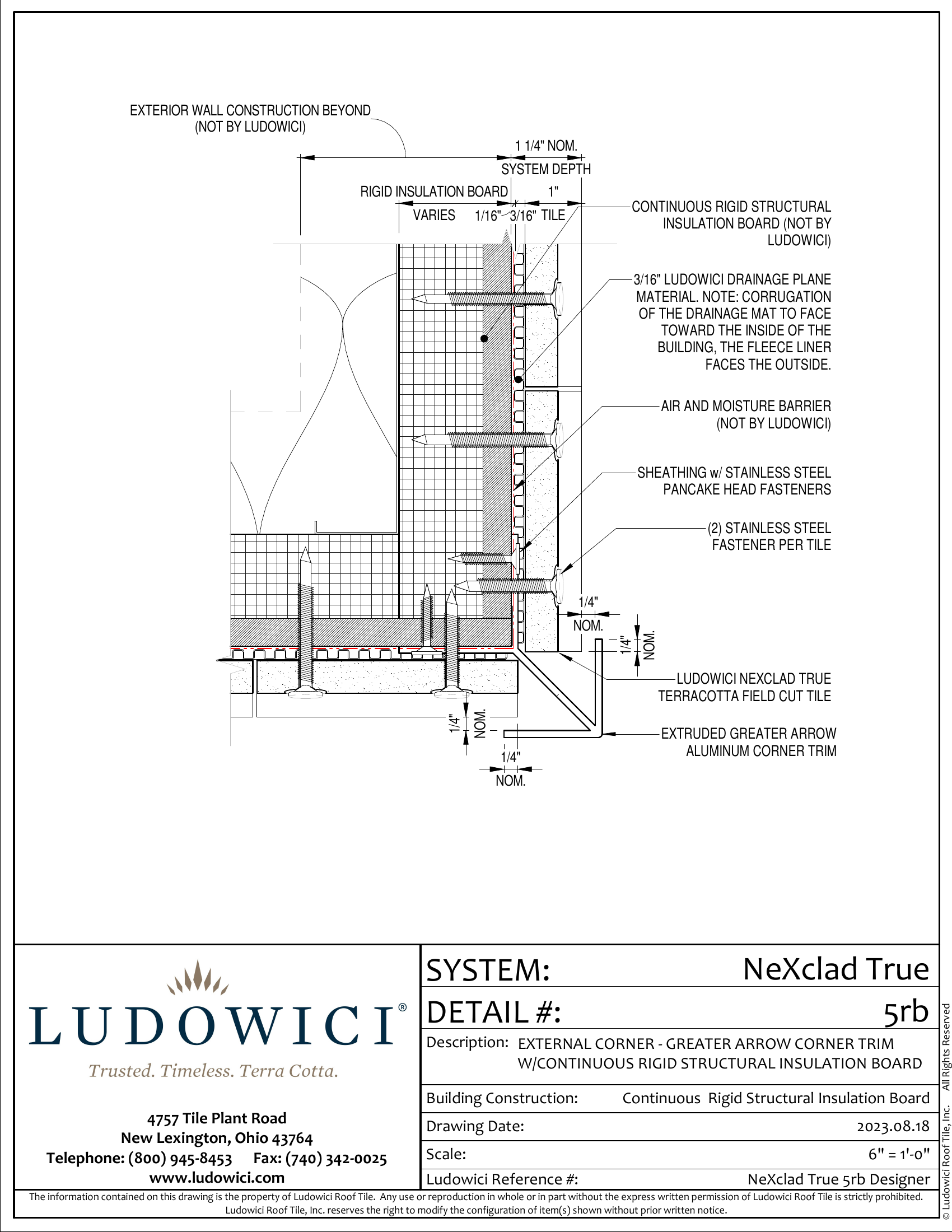

5 External Corner - Greater Arrow Corner Trim w/ Cont Rigid Structural Insulation Board
6

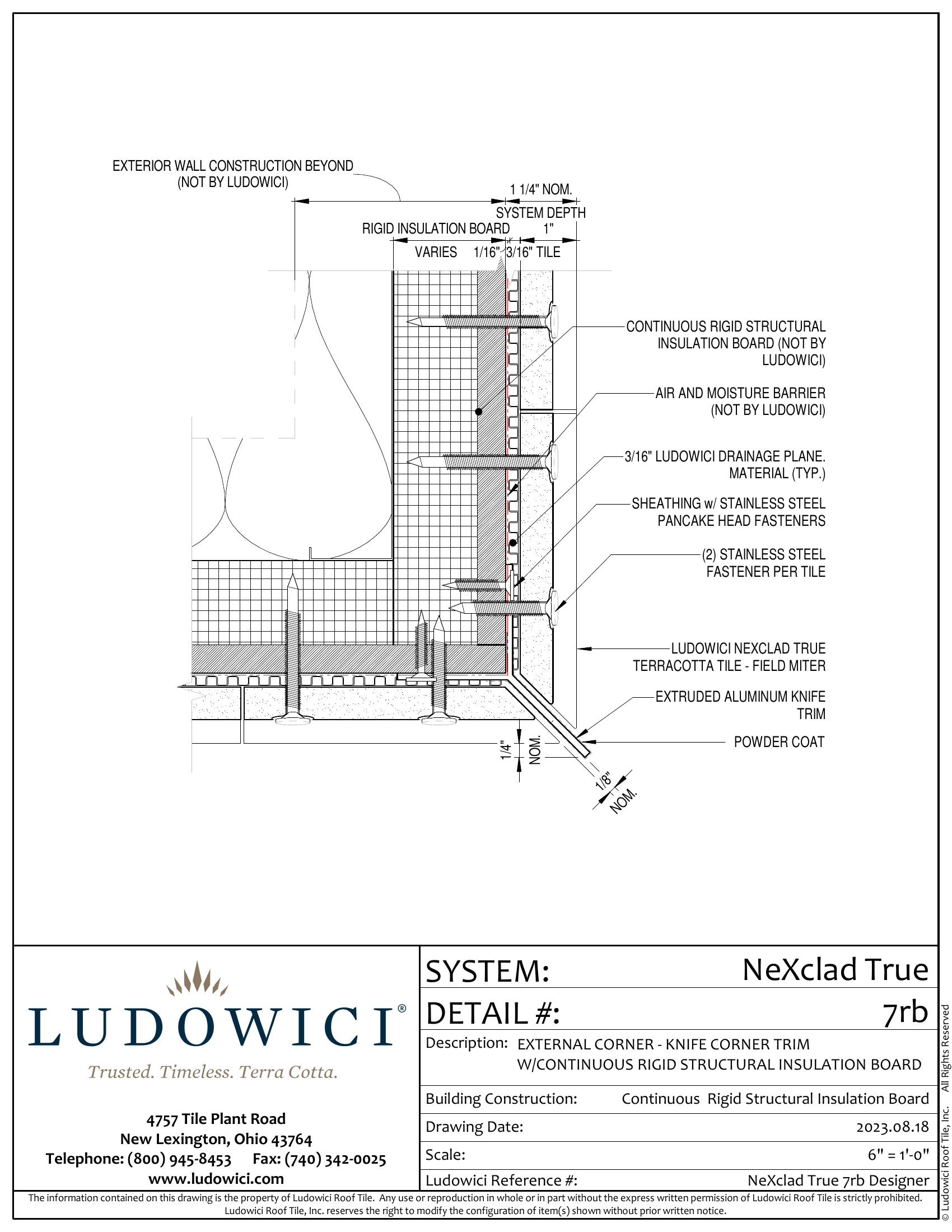

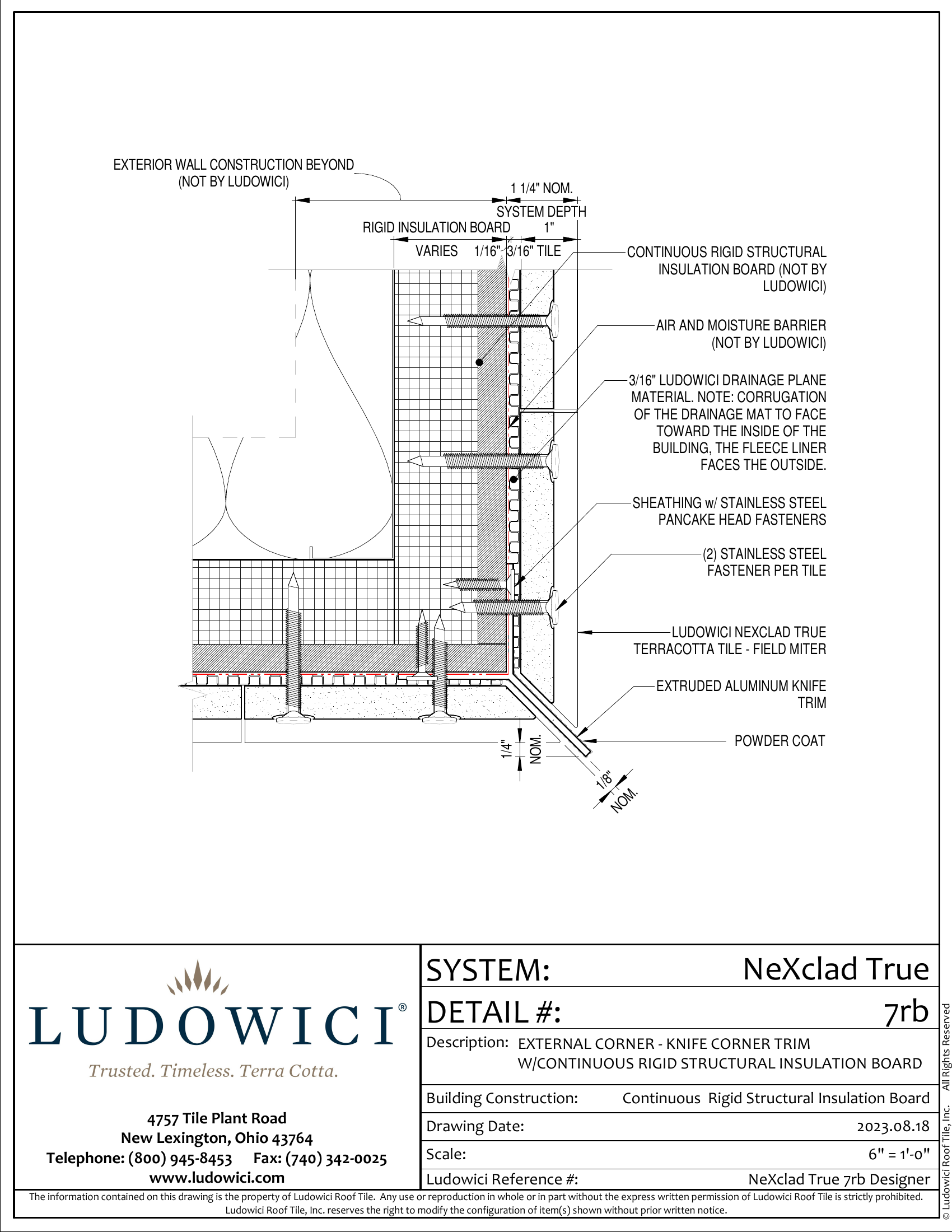

7 External Corner - Knife Corner Trim w/ Cont Rigid Structural Insulation Board
8

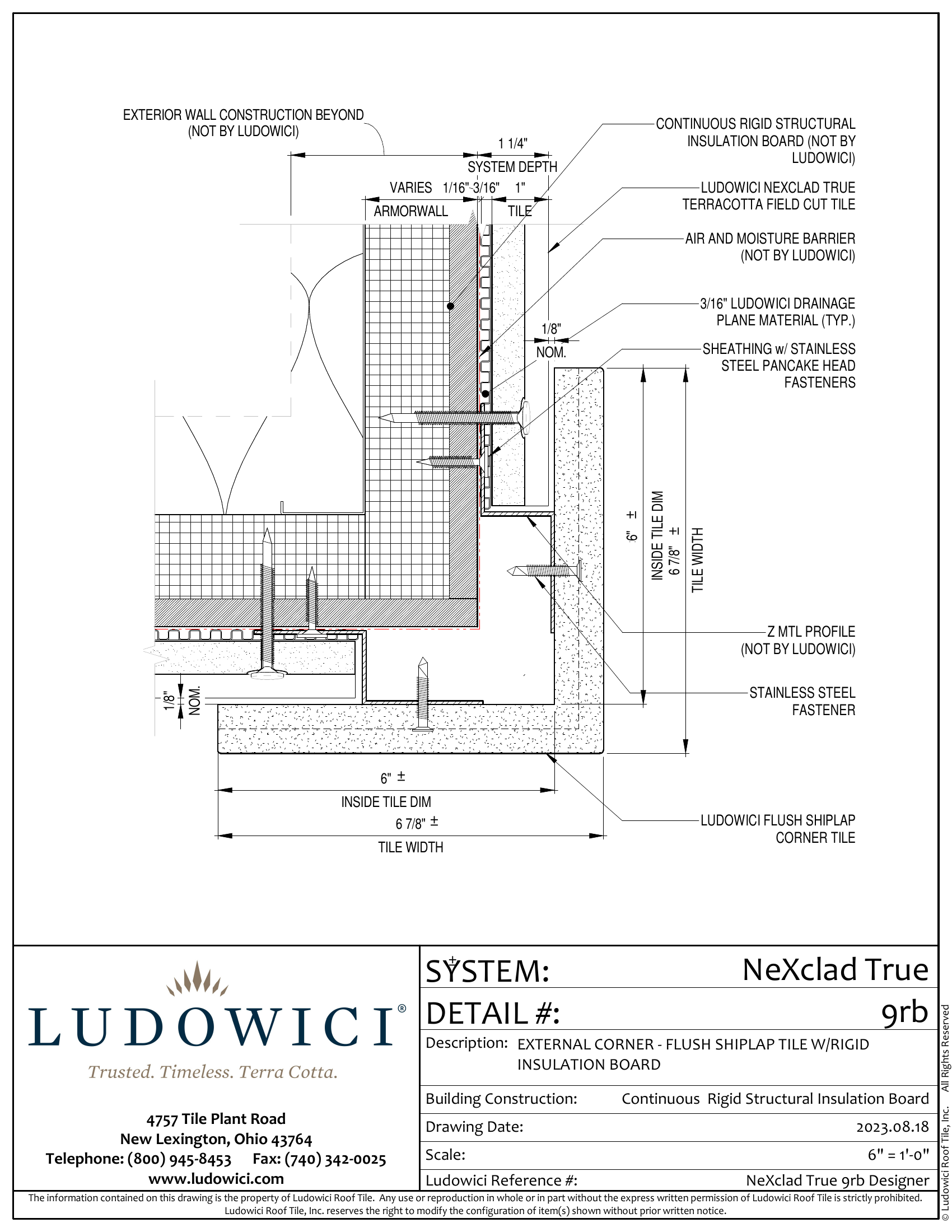

9 External Corner - Flush Shiplap Tile w/ Rigid Insulation Board
10 External Corner - V Corner Tile w/ Cont Rigid Insulation Board

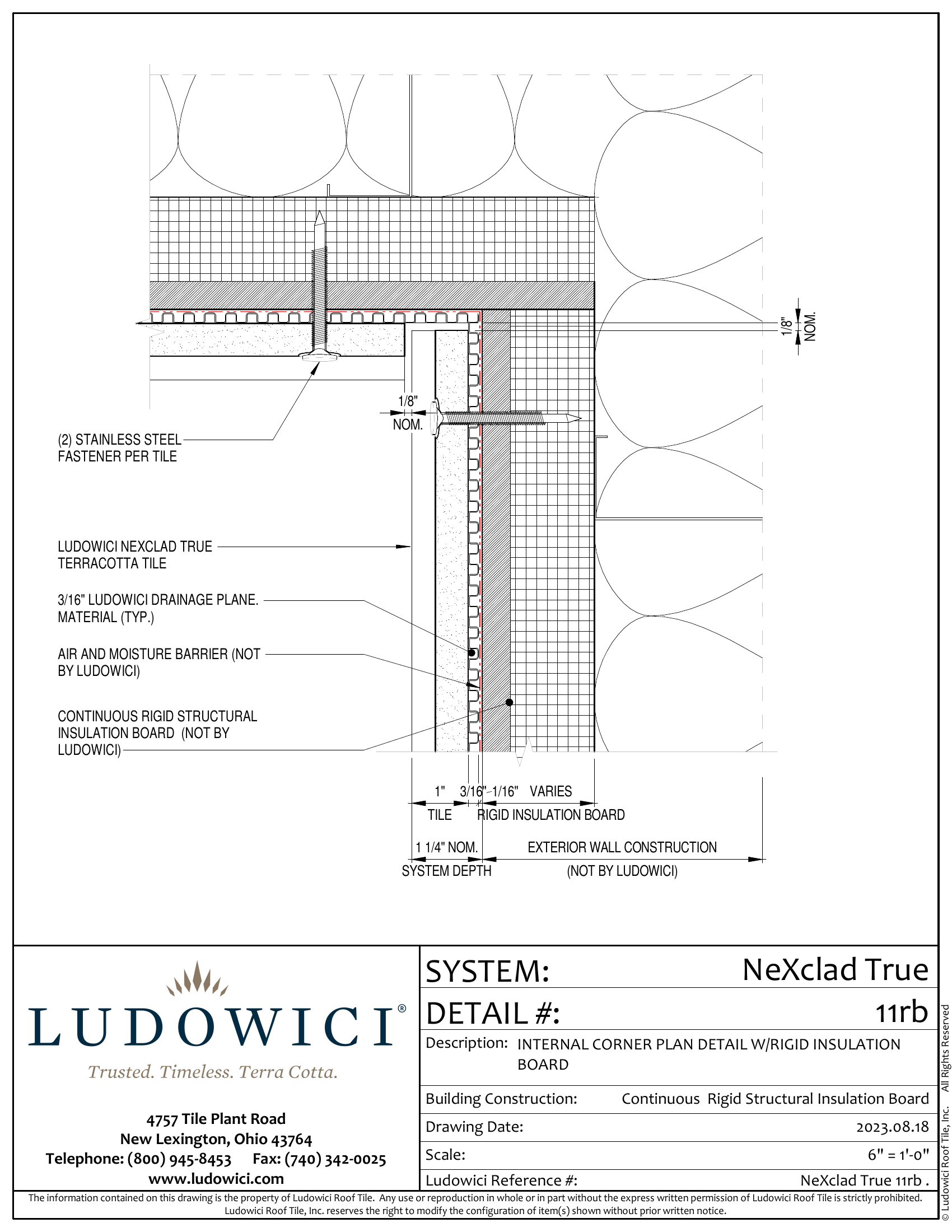

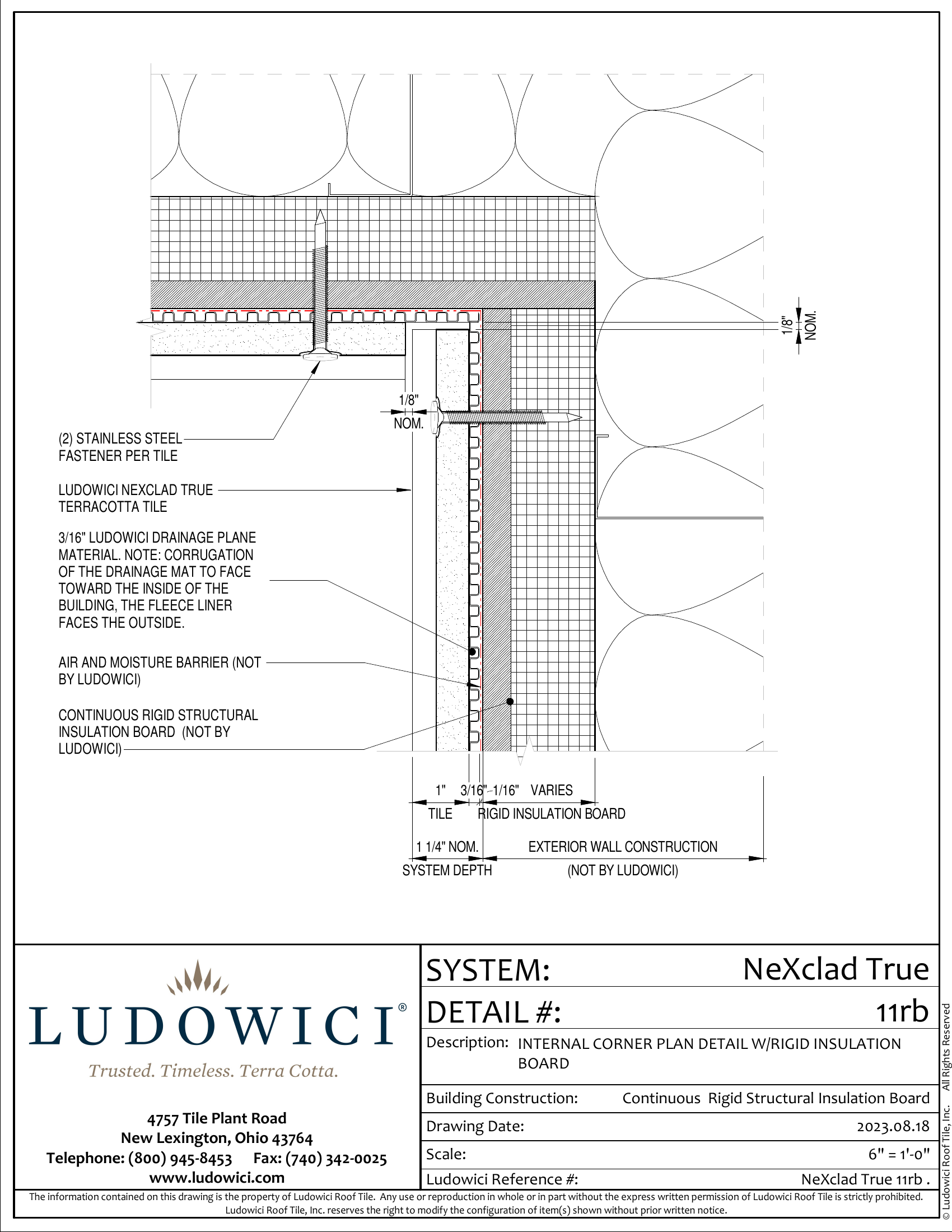

11 Internal Corner Plan Detail w/ Rigid Insulation Board

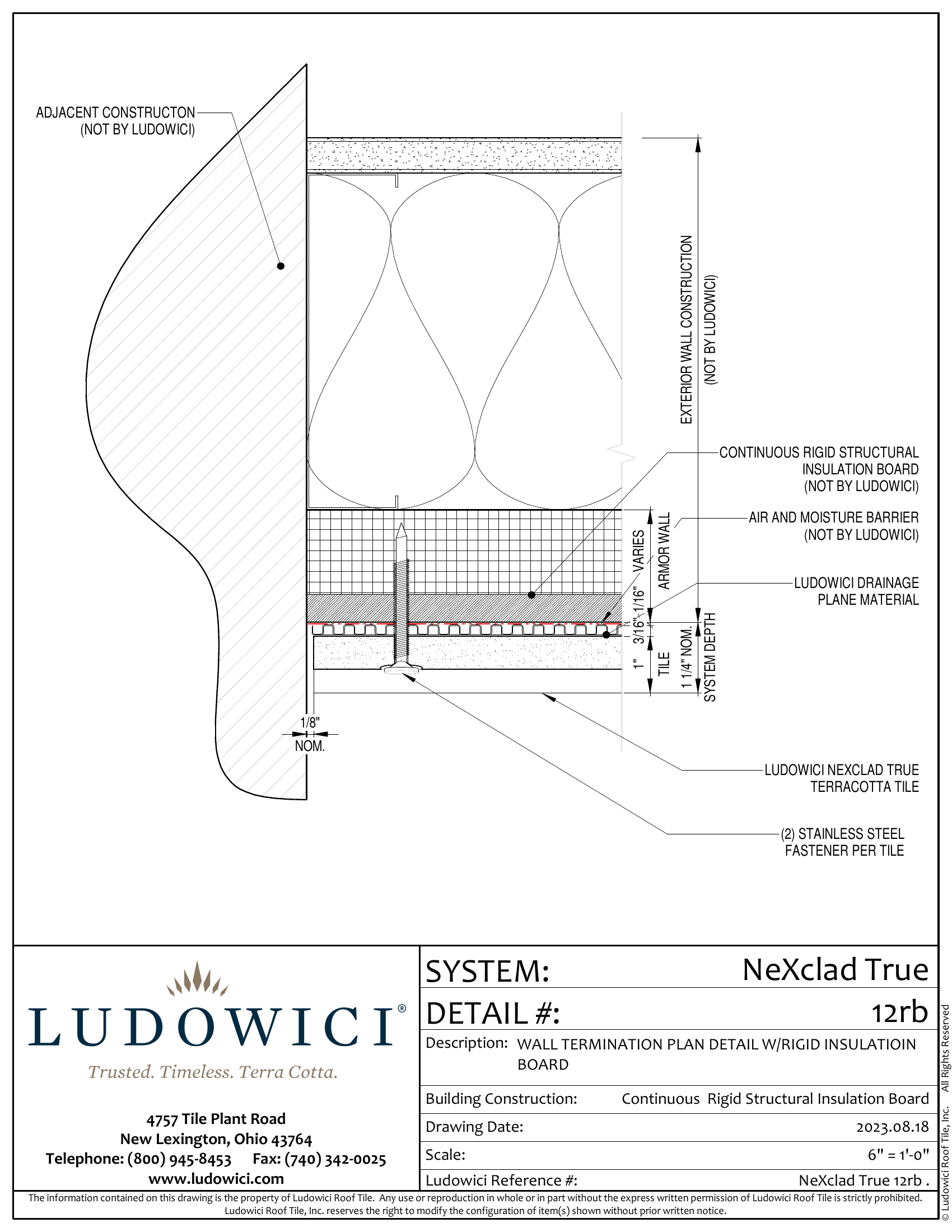

12 Wall Termination Plan Detail w/ Rigid Insulation Board

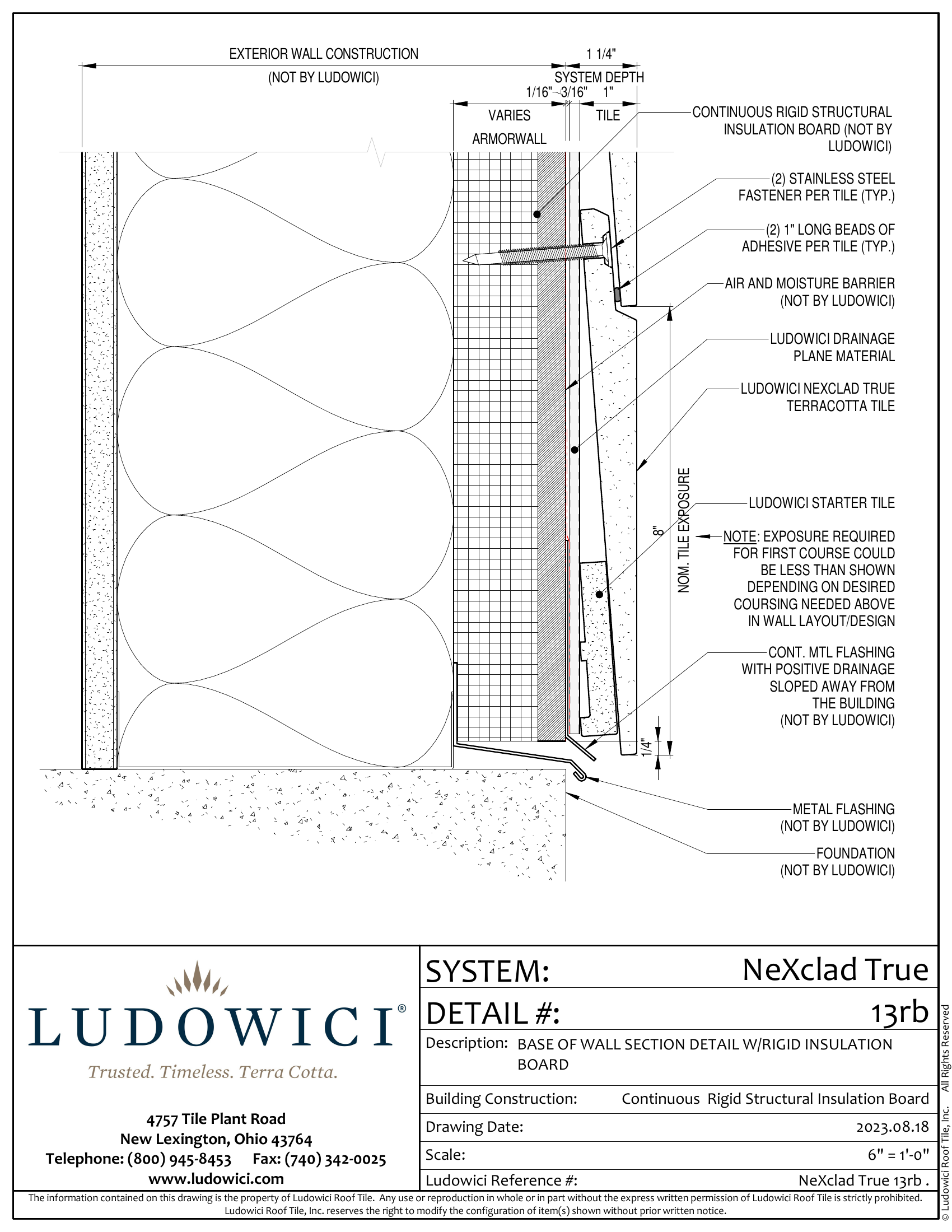

13 Base of Wall Section Detail w/ Rigid Insulation Board

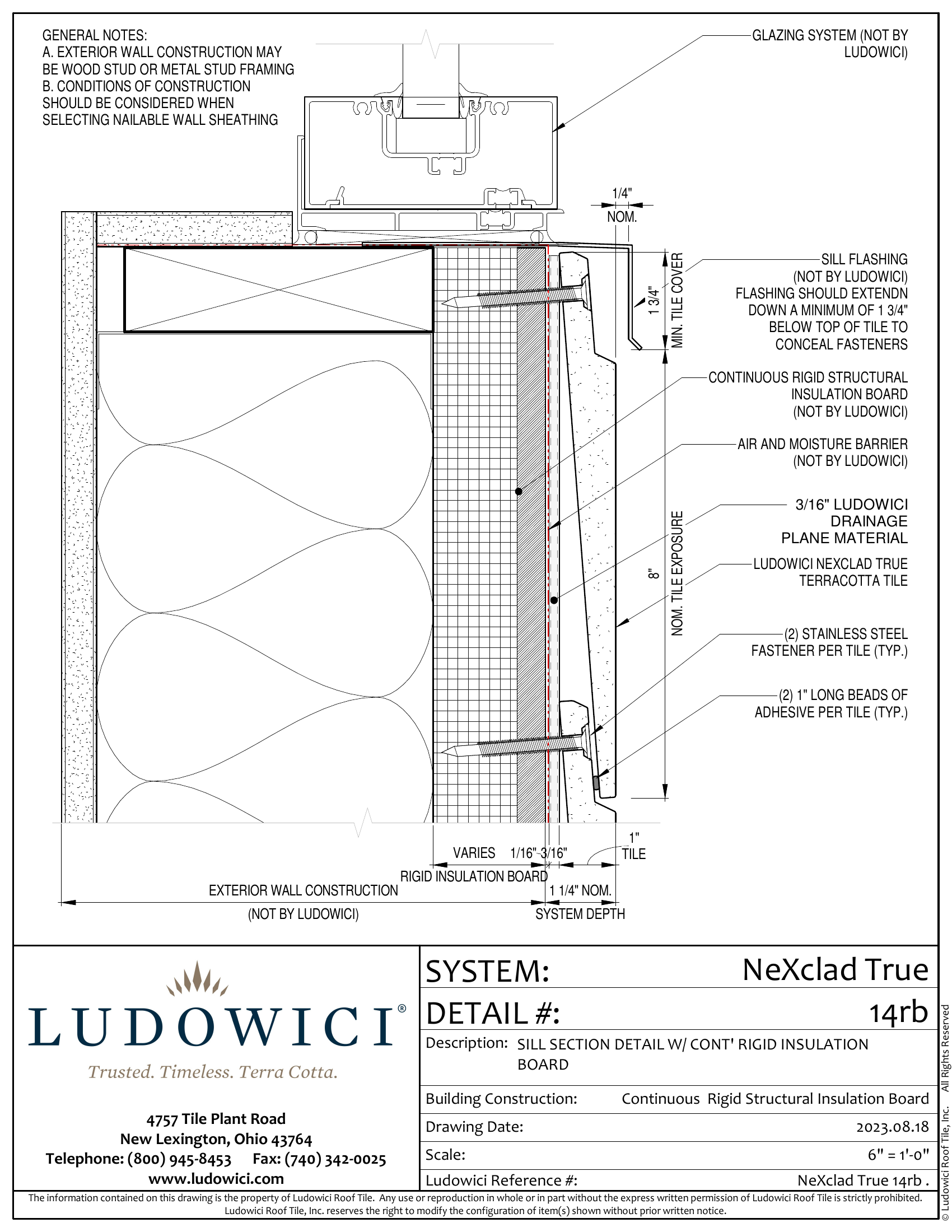

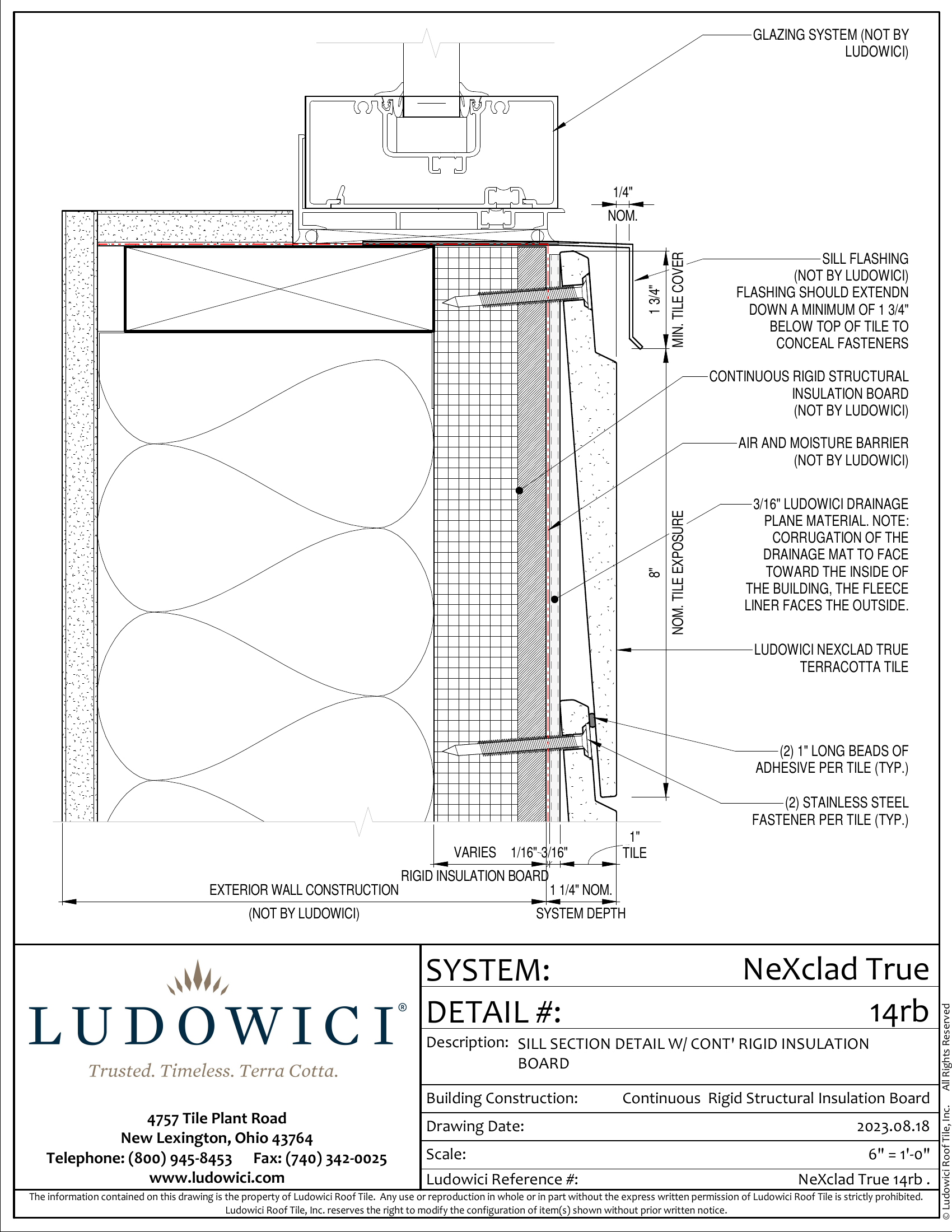

14 Sill Section Detail w/ Cont Rigid Insulation Board

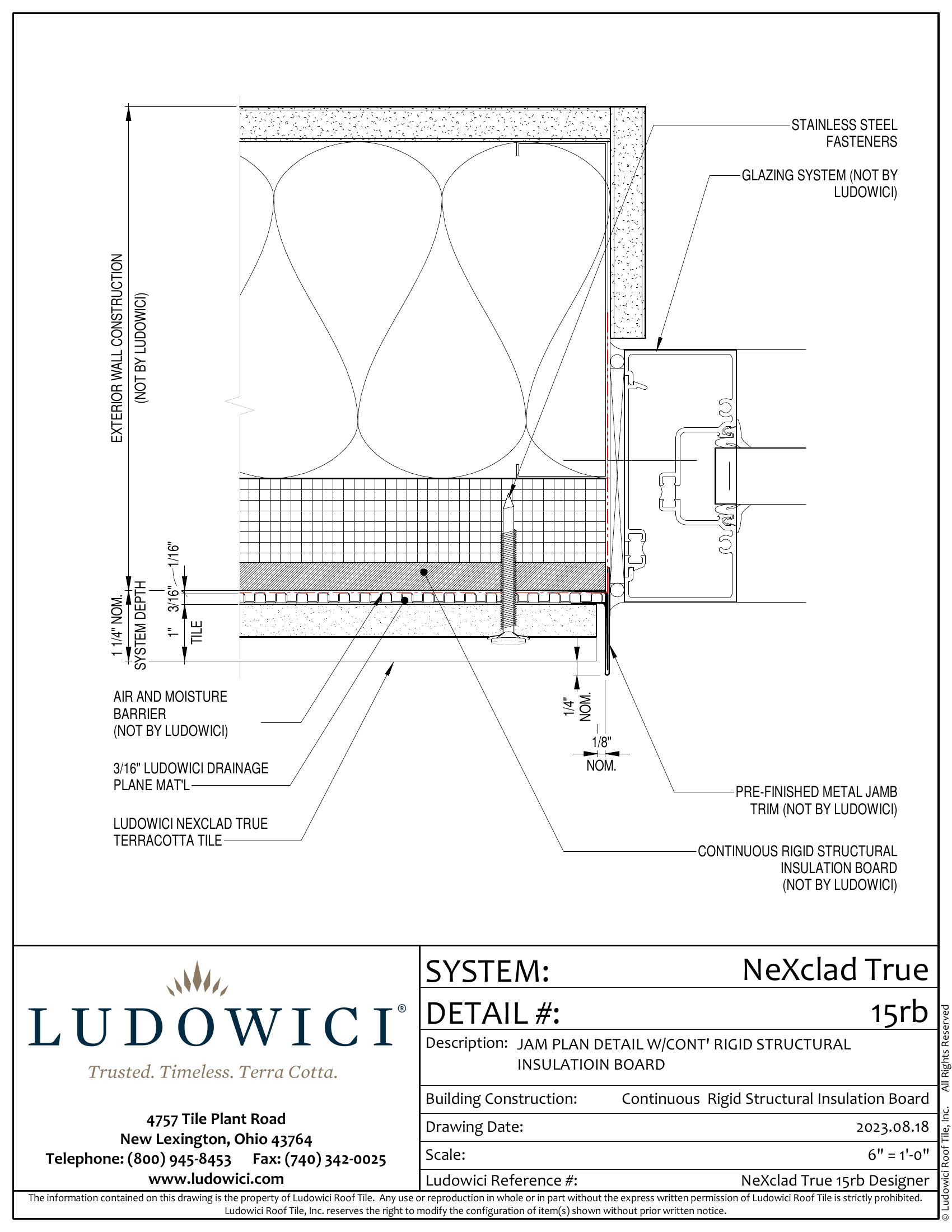

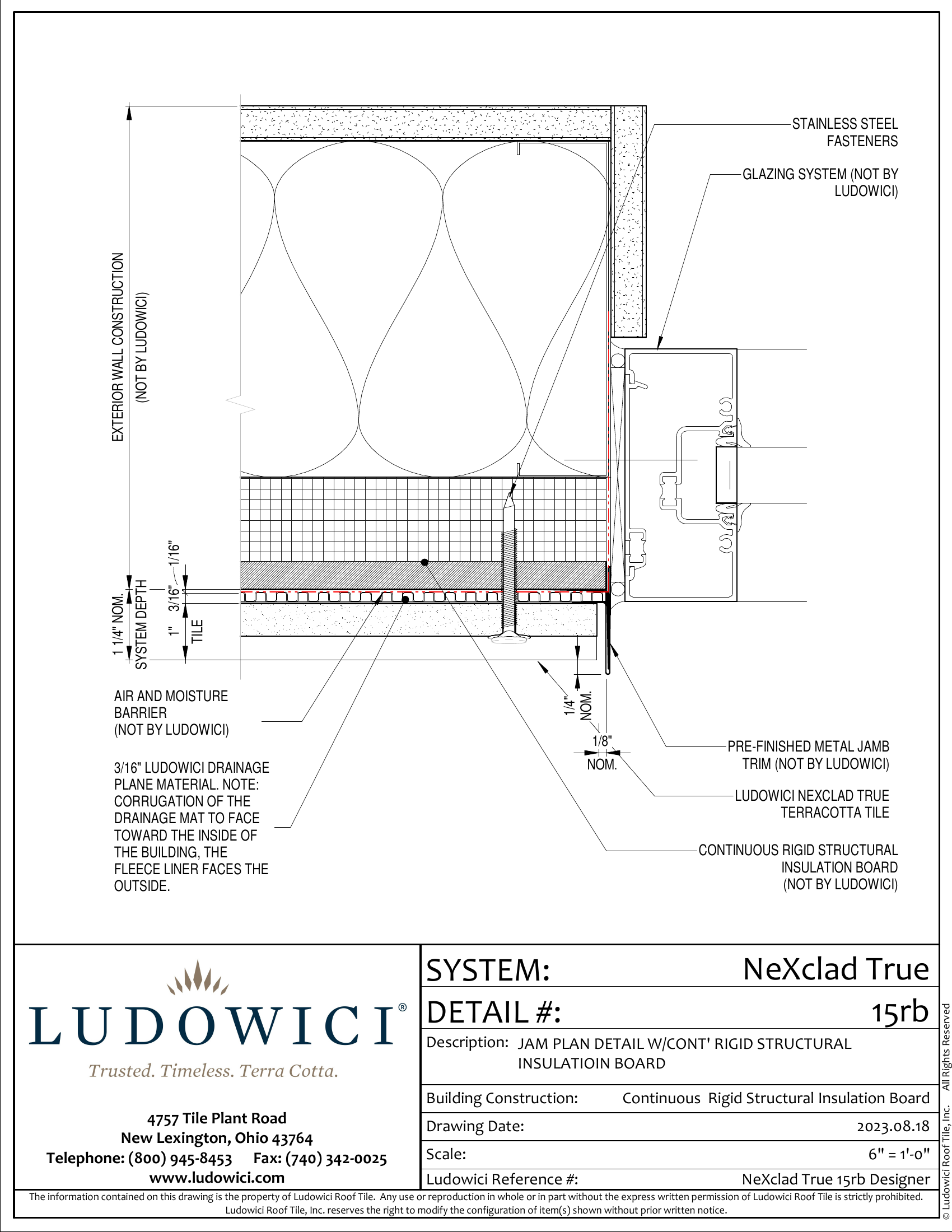

15 Jamb Plan Detail w/ Cont Rigid Structural Insulation Board

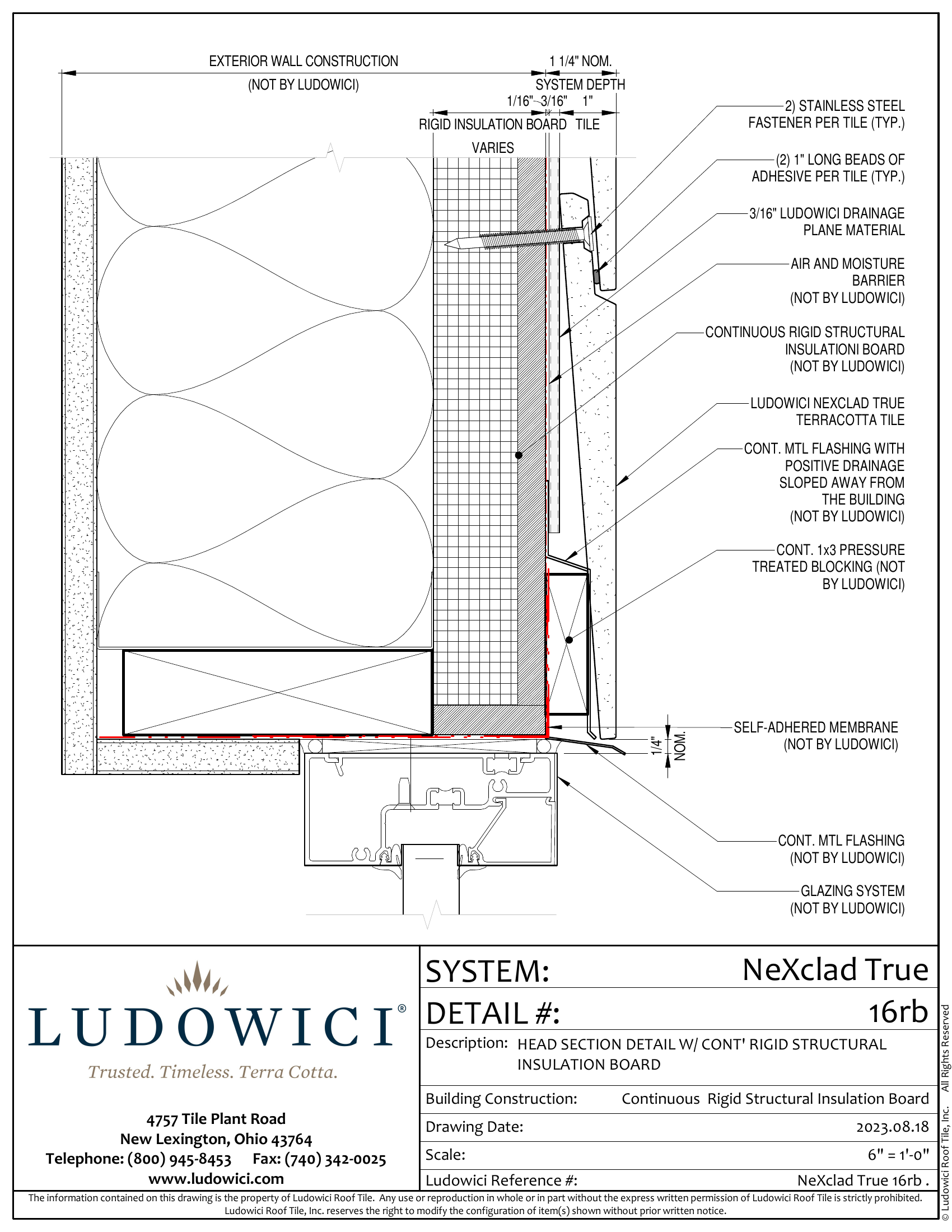

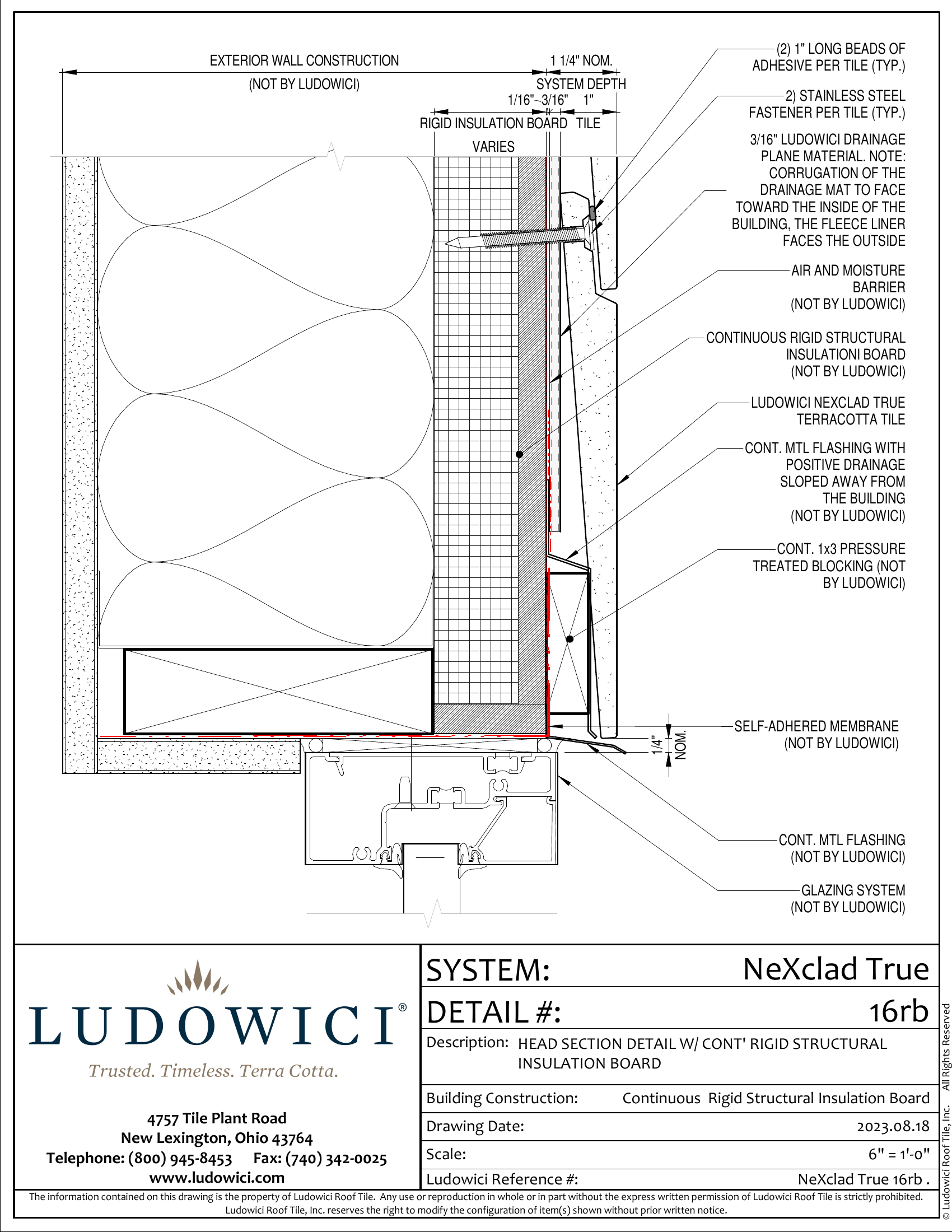

16 Head Section Detail w/ Cont Rigid Structural Insulation Board
17 Coping Section Detail w/ Cont Rigid Insulation Board

Technical Resources

To ensure proper integration of NeXclad with your chosen wall system, access our technical drawings and detailed installation guidelines below.

Download Full PDF
Download all DWG Files
Download all REVIT Files
Stud Walls with Structural Sheathing mockup
Conventional Wall

Stud Walls with Structural Sheathing

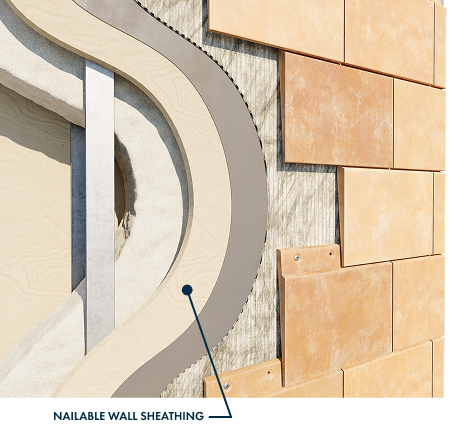

This conventional system consists of wood or steel stud framing with batt insulation placed between the studs. A solid, nailable/screwable sheathing layer is applied over the framing, serving as a secure base for exterior cladding. Unlike SIS-based systems, this approach does not include continuous exterior insulation.

NeXclad Terra Cotta Integration:
• Installed directly over a solid, nailable/screwable sheathing layer, positioned outside the building’s waterproofing membrane and Ludowici’s drainage mat.
• Mechanical fasteners securely attach NeXclad tiles to the structural substrate without requiring additional mounting systems.
• CAD/REVIT models and PDF details below provide installation specifications.

Stud Walls with Structural Sheathing Details
Installation details over Conventional Wall
Perfect for masonry or concrete structures, this method integrates directly with the wall for a seamless, highly durable cladding solution. NeXclad’s natural thermal mass enhances energy efficiency, while its precision-crafted terracotta finish ensures lasting beauty with minimal maintenance.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# Title Preview PDF DWG Revit
1 HORIZONTAL MODULE PLAN DETAIL
2 TYPICAL WALL SECTION DETAIL
3 EXTERNAL CORNER- CORNER PANEL
4 EXTERNAL CORNER - RE-ENTRANT
5 EXTERNAL CORNER - GREATER ARROW
6 EXTERNAL CORNER - LESSER ARROW
7 EXTERNAL CORNER - KNIFE CORNER
8 EXTERNAL CORNER - L CORNER METAL TRIM
9 EXTERNAL CORNER - FLUSH SHIPLAP
10 EXTERNAL CORNER - 'V' CORNER TILE
11 INTERNAL CORNER PLAN DETAIL

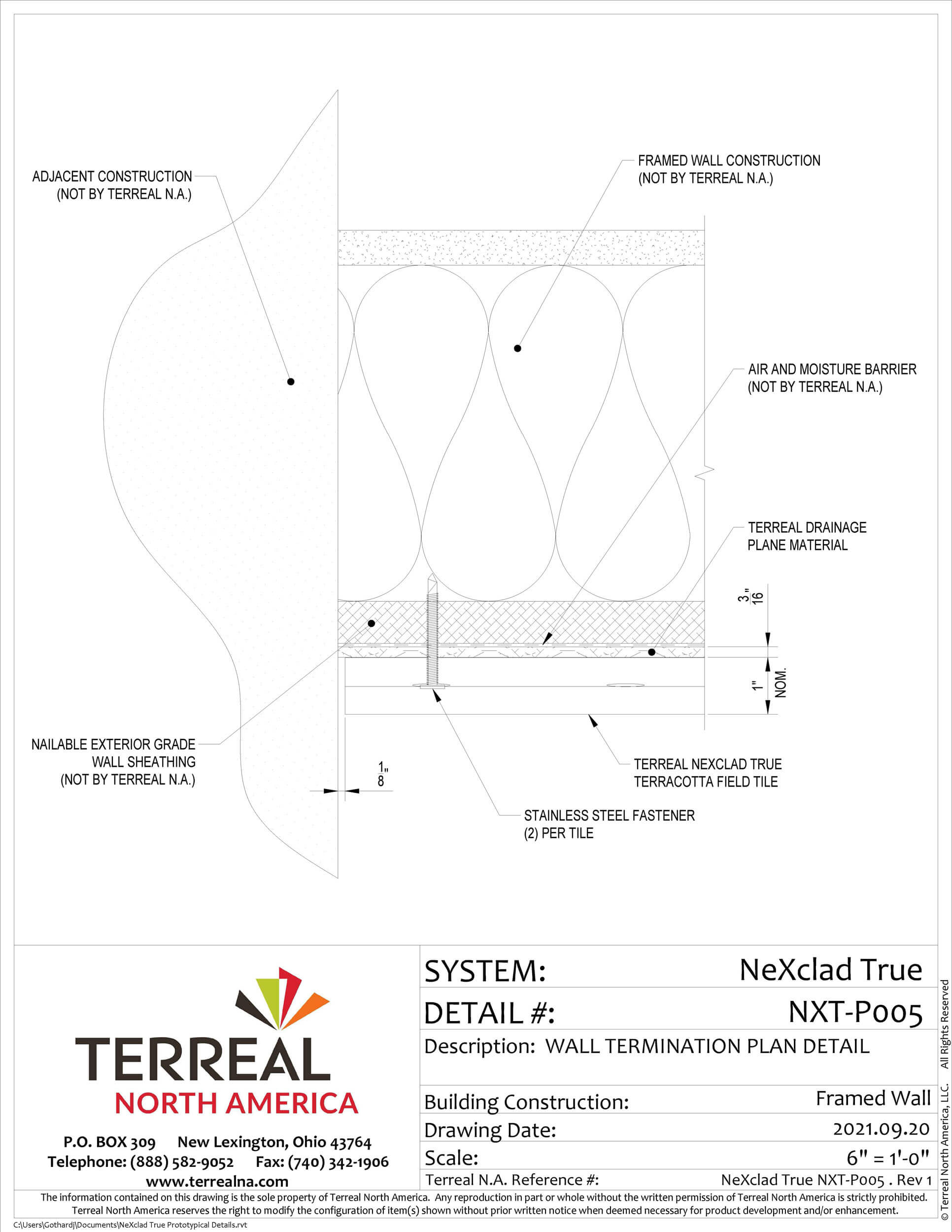

12 WALL TERMINATION PLAN DETAIL
13 BASE OF WALL SECTION DETAIL
14 SILL SECTION DETAIL
15 JAMB PLAN DETAIL
16 HEAD SECTION DETAIL
17 COPING SECTION DETAIL

Technical Resources

To ensure proper integration of NeXclad with your chosen wall system, access our technical drawings and detailed installation guidelines below.

Download Full PDF
Download all DWG Files
Download all REVIT Files

Colors

NeXclad True is available in a single through-body color, various glaze colors, and a variety of glaze application techniques. Ludowici also has custom color capabilities to meet your design needs.

Browse Colors

Textures

Ludowici’s NeXclad True wall cladding comes in the following textures.

  • Smooth
  • Weathered
  • Custom
Browse textures
