Languedocienne

Authentic 2-piece mission tile from Ludowici’s sister company, Terreal. Manufactured in the South of France.

GENERAL INFORMATION

Overall Size	(6-11/16" to 8-1/4”) x 19-1/2”
Average Exposure	16 1/2"

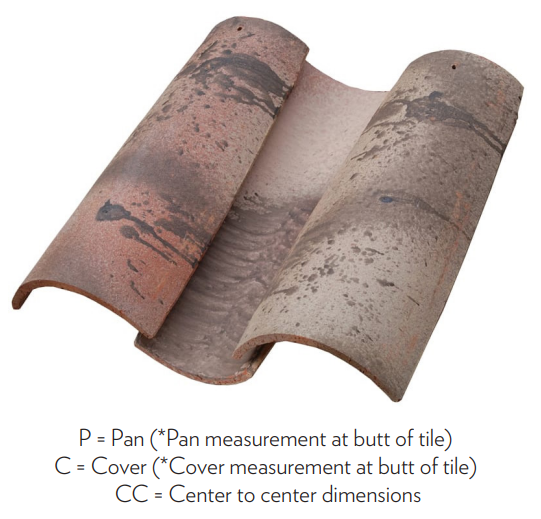

Width Exposure	P = 3-1/2", C = 8", CC = 11"
PCS/square	158 pcs
LBS/square	923 lbs
Rec. Minimum Slope	4:12

SHIPPING DATA

PCS/Pallet	Squares/Pallet	Weight/Pallet
250	1.58	1489 lbs

20’ CONTAINER SHIPPING DATA
20’ CONTAINER MAX SHIPPING WEIGHT Due to U.S. roadways (lbs)	38,008
20’ CONTAINER MAX FIELD TILE PALLETS (per container)	26
20’ CONTAINER MAX FIELD TILE (pieces)	6,500
20’ CONTAINER MAX FIELD TILE (squares)	41.14
20’ CONTAINER LOGISTICS COSTS TO US PORT⁽¹⁾ (Miami)	$6,900–$7,100 EACH
20’ CONTAINER LOGISTICS COSTS TO US PORT⁽¹⁾ (Houston)	$6,700–$6,900 EACH
20’ CONTAINER LOGISTICS COSTS TO US PORT⁽¹⁾ (Los Angeles)	$9,400–$9,600 EACH
20’ CONTAINER LOGISTICS COSTS TO US PORT⁽¹⁾ (Hawaii)	$18,200–$18,600 EACH

20’ CONTAINER SHIPPING DATA

20’ CONTAINER MAX SHIPPING WEIGHT Due to U.S. roadways (lbs)

38,008

20’ CONTAINER MAX FIELD TILE PALLETS (per container)

20’ CONTAINER MAX FIELD TILE (pieces)

6,500

20’ CONTAINER MAX FIELD TILE (squares)

41.14

20’ CONTAINER LOGISTICS COSTS TO US PORT⁽¹⁾ (Miami)

$6,900–$7,100 EACH

20’ CONTAINER LOGISTICS COSTS TO US PORT⁽¹⁾ (Houston)

$6,700–$6,900 EACH

20’ CONTAINER LOGISTICS COSTS TO US PORT⁽¹⁾ (Los Angeles)

$9,400–$9,600 EACH

20’ CONTAINER LOGISTICS COSTS TO US PORT⁽¹⁾ (Hawaii)

$18,200–$18,600 EACH

These container logistics costs are included in the field tile prices shown below. Please note a Partial Container Charge “PCC” fee will need to be added for all partial containers (see PCC definition and examples below for more detail).
The field tile prices shown include European land transport and ocean logistics.
The field tile prices shown do NOT include U.S. port transloading or U.S. port to jobsite local freight/delivery. These services must be added to the quote/proposal as separate line items. Please contact Mike Ade (mike.ade@ludowici.com ) or Shelby Stevenson (Shelby.stevenson@ludowici.com ).
If customer elects to receive ocean shipping containers at the tile final shipping destination, they must be prepared to properly receive the containers. Please review and provide customer the detailed information on receiving materials via container outlined on this document: LINK TO DROPBOX DOC.
The maximum shipping weight of a 20’ container, shown above as 38,008 lbs., is due to U.S. highway limits for transporting a 20’ container over U.S. roads. The actual container and ocean vessel can carry more weight than what is allowed on U.S. roadways. The max weight for the sea shipment is typically much higher and, if we transload the material to a Flat Bed for delivery, the max weight could be as high as 48,000 lbs. In order to simplify for quick/standard pricing, we need to keep to the maximum of 38,008 lbs. per 20’ container. However, please keep in mind for very large projects we should have some leeway and other options.
The final number of containers needed for the project is a function of both field tile quantities needed and the necessary accessories added. The required accessories needed must be verified that they can fit in the container space quoted.

SURFACE TREATMENT AVAILABILITY & PRICING
CUSTOM SURFACE TREATMENTS ARE NOT AVAILABLE ON THIS TILE

SURFACE TREATMENT AVAILABILITY & PRICING

CUSTOM SURFACE TREATMENTS ARE NOT AVAILABLE ON THIS TILE

LANGUEDOCIENNE

Field tile pricing

Please login to view pricing.

Notes:

The field tile prices shown include European land transport and ocean logistics.
The field tile prices shown do NOT include U.S. port transloading or U.S. port to jobsite local freight/delivery. These services must be added to the quote/proposal as separate line items. Please contact Mike Ade (mike.ade@ludowici.com ) or Shelby Stevenson (shelby.stevenson@ludowici.com).
Please include separate line item for Import Tarriffs / Duties / Tax on each quote/order – this is not included in the field tile price. Please contact Mike Ade (mike.ade@ludowici.com ) or Shelby Stevenson (Shelby.stevenson@ludowici.com ) for calcuation assistance. Languedocienne Import Tarriffs / Duties / Tax can be estimated at $33 to $92/SQ or $1,364 to $3,775 per container and must be added to each proposal/order.
Tariff price range shown is based on 13.5% to 43.5% tariffs – check with factory for correct number to use.
Field tiles are sold in full pallets only.
When orders/projects require color blends, full pallets of pans (same color) and full pallets of covers (same color) will be provided. This means the blend % of the actual order may vary slightly from the blend % actually used during the installation.
Languedocienne tiles carry a 50-year warranty and are not part of Ludowici’s 75-year warranty program.
Languedocienne tiles can be sold in ASTM C1167 Grade 2 and Grade 3 geographical areas. If a project or opportunity develops in an ASTM C1167 Grade 1 geographical area for Languedocienne tiles, please contact a National Market Manager or V.P. of Business Development for further discussions and

SPECIAL CHARGES
* IMPORTANT *
Terreal field tiles will be only be shipped in full pallets - no exceptions. Quotes/Orders should be based on full pallet quantities/increments. PARTIAL CONTAINER CHARGE (PCC) When a partial container is shipped, meaning less than 25 pallets, a Partial Container Charge (PCC) must be added to the quote/order to account for the empty space in the container. The (PCC) is a simple calculation where you take the % of the open container multiplied by the container shipping/logistics rate. Two examples are provided below. For additional assistance on PCC fees and calculation assistance, please contact Mike Ade (mike.ade@ludowici.com) or Shelby Stevenson (shelby.stevenson@ludowici.com).
EXAMPLE #1: Quote/Shipment is for 33.39 Squares (or 21 full pallets, less than 1 container). Maximum squares on a container = 41.14 Squares (see above) % of container that is open = (41.14 - 33.39) / 41.14 = 18.8% PCC = % of container that is open × container shipping/logistic fee 18.8% × $7,000 (Miami) = $1,316 ← this must be added to the quote/order.	EXAMPLE #2: Quote/Shipment is for 54.06 Squares (or 34 full pallets, 1 full container and a partial container). Maximum squares on a container = 41.14 Squares Partial Container Quantity: 54.06 Squares - 41.14 Squares = 12.92 Squares % of container that is open = (41.14 - 12.92) / 41.14 = 68.59% PCC = % of container that is open × container shipping/logistic fee 68.59% × $7,000 (Miami) = $4,801.30 ← this must be added to the quote/order.

SPECIAL CHARGES

*** IMPORTANT ***

Terreal field tiles will be only be shipped in full pallets - no exceptions. Quotes/Orders should be based on full pallet quantities/increments.

PARTIAL CONTAINER CHARGE (PCC)

When a partial container is shipped, meaning less than 25 pallets, a Partial Container Charge (PCC) must be added to the quote/order to account for the empty space in the container. The (PCC) is a simple calculation where you take the % of the open container multiplied by the container shipping/logistics rate. Two examples are provided below. For additional assistance on PCC fees and calculation assistance, please contact Mike Ade (mike.ade@ludowici.com) or Shelby Stevenson (shelby.stevenson@ludowici.com).

EXAMPLE #1:

Quote/Shipment is for 33.39 Squares (or 21 full pallets, less than 1 container).

Maximum squares on a container = 41.14 Squares (see above)
% of container that is open = (41.14 - 33.39) / 41.14 = 18.8%

PCC = % of container that is open × container shipping/logistic fee
18.8% × $7,000 (Miami) = $1,316 ← this must be added to the quote/order.

EXAMPLE #2:

Quote/Shipment is for 54.06 Squares
(or 34 full pallets, 1 full container and a partial container).

Maximum squares on a container = 41.14 Squares

Partial Container Quantity: 54.06 Squares - 41.14 Squares = 12.92 Squares
% of container that is open = (41.14 - 12.92) / 41.14 = 68.59%

PCC = % of container that is open × container shipping/logistic fee
68.59% × $7,000 (Miami) = $4,801.30 ← this must be added to the quote/order.

ACCESSORIES

CLOSURES
Style	Specs	Languedocienne Std Color	Price/PC >25	Price/PC >80
EAVE CLOSURE	Length.................................................11" Exposure............................................11" PCS/Box............................................90 Weight/Piece.......................1.7 lbs/pc	See corresponding Ludowici color on Color Page.	$13.27	$7.71

Notes

Clay eave closure will be manufactured by Ludowici (the same one used for 18-3/8″ Palm Beach Mission and 18-3/8″ Straight Barrel Mission.)
Closest Ludowici standard color that could be used with the associated Terreal color. Will not be an exact match, however, eave closures are up under the eave barrel tile, many times concealed by the gutter and in the shadow lines—please make sure customer understands this.
Clay eave closures will ship separately and will require additional LTL freight rate to be added to quote/order.
Partial Box Charges: Fittings/Accessories are sold in full boxes. When field tile order quantity is less than 20 SQs, and partial boxes of fittings are quoted/ordered, a $35 special handling fee will be applied to each partial box. This is for partial boxes on less than 20 square field tile orders only.

FLASHING MATERIAL

*See FlexSeal & FlexVent

HIP & RIDGE TILES — OPTION 1
Style	Specs	Color	Price/PC => 250
HIP/RIDGE pieces COVER	Length19-1/2" Exposure................................16-1/2"	LANG. STD COLORS	= Field Tile Price/SQ divided by 158

Style	Terreal Part #	Color	Weight/Piece (LBS)	Price/PC
Hip Starter Bull Nose (use with field tile covers)	45XG	LANG. STD COLORS	7.72	$46.35
Stacked Hip Starter Detail		LANG. STD COLORS	N/A	= Field Tile Price/ SQ divided by 158

Notes:

When mission tile covers are used for the hip tiles, stacked hip starter details, and for ridge tiles they must be ordered in full pallets only. Partial pallets will not be shipped.
Please make sure quotes/orders are for full pallets.
When mission tile covers are used for hip/ridge tiles, Terreal hip starter and closed ridge end terminals (priced below in Option 2) will not work or nest properly. Hip and Ridge ends will need to be detailed with stacked field tile covers and mortar, or use Terreal bull nose hip starter (45XG).

HIP & RIDGE TILES — OPTION 2 (EUROPEAN ACCESSORIES)
Style	Terreal Part #	Color	Weight/ Piece (LBS)	Coverage/ Piece	Qty/ Pallet	Price/ Piece
Hip/Ridge Tile	302XG	LANG. STD COLORS	6.62	15.75"	160 pcs	$12.10
Hip Starter-Bull Nose (USE WITH 302XG)	453XG	LANG. STD COLORS	7.06	N/A	N/A	$46.35
Flat Closed End Ridge (finisher)	421XG	LANG. STD COLORS	12.57	N/A	N/A	$46.35
Flat Closed End Ridge (starter)	411XG	LANG. STD COLORS	14.34	N/A	N/A	$46.35
Rake Tile	N/A		*Use Field Tile covers, will require field drilling additional hole.
2 Hip/ 1 Ridge Terminal	N/A		*Not available, must use mortar or field miter and fabricate from field covers.

Notes:

Terreal hip/ridge tile accessories/terminals/starters/finishers do not come with pre-drilled holes for attachment anchors. Tile must be field drilled by installer, or attached with foam adhesive or mortar. Metallic clips for hip/ridge (in lieu of field drilling/mortar) can be provided at an additional charge.
