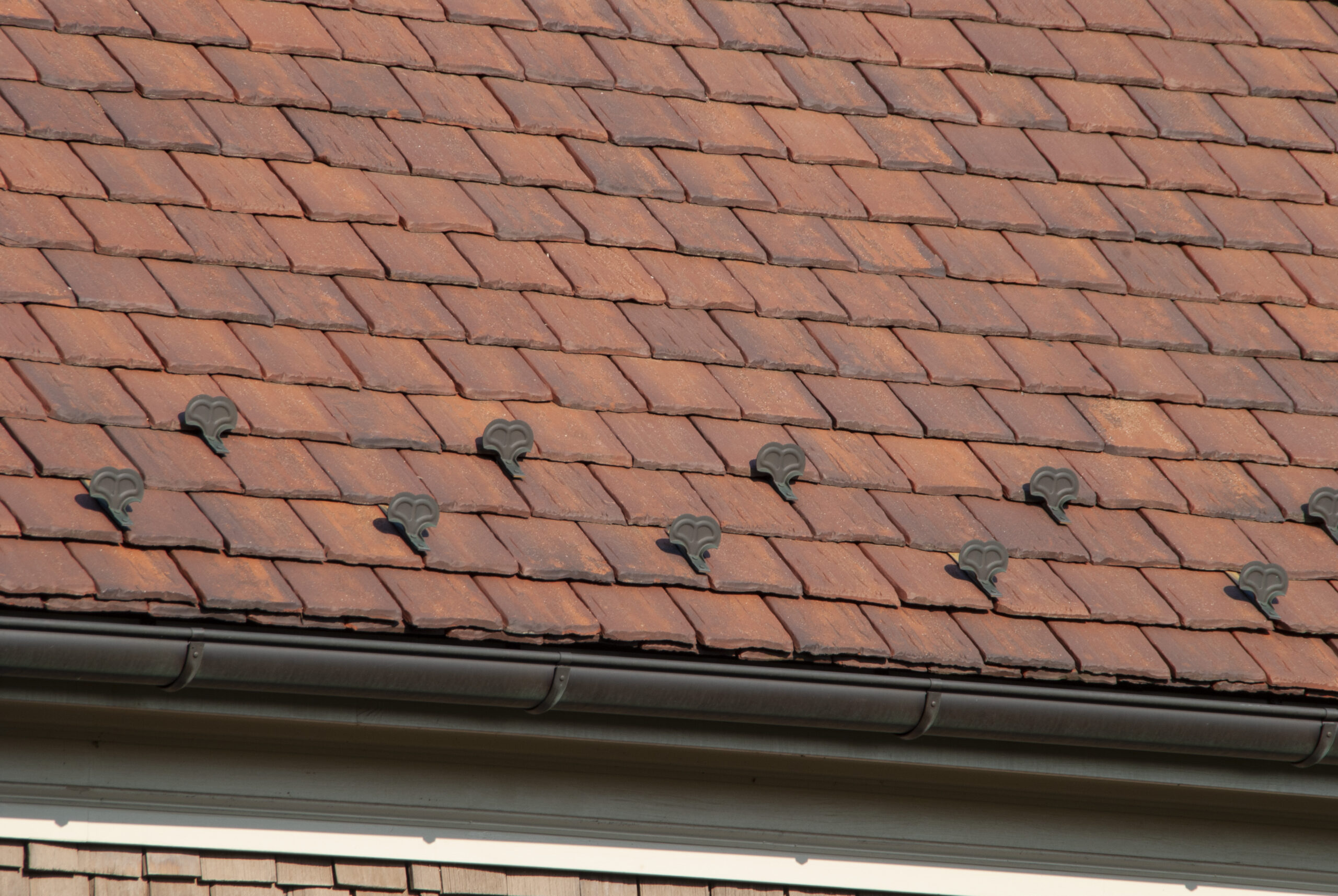

Long irregular lengths and a rich grooved texture give Ludowici’s Colonial shingle tile the look and feel of hand split wood shake used on Early American and Colonial buildings. However, they can be customized with a number of different custom texture options to create your desired effect. Colonial shingles are available in all standard and custom matte colors, mists and blends offered by Ludowici. For a deeper, more pronounced hand split wood shake texture, consider Rustic Colonial tile. Ludowici’s Colonial clay shingle tile is covered by a 75-year material warranty.

Characteristic	Specifications
Weight Per Square	1800 lbs.
Pieces Per Square	310 pcs.
Overall Size	7-3/8" x 14-5/8" x 5/8"
Exposure	7-3/8" x 6-5/16"
Installed Barrel Height Off Deck	N/A
Recommended Minimum Slope	5:12
Base Texture	Grooved

#	Document	Description	PDF	AutoCAD
1	COLONIAL-100	SECTION AT EAVE	View PDF	Download AutoCAD
2	COLONIAL-101	SECTION AT SIDE WALL	View PDF	Download AutoCAD
3	COLONIAL-102	SECTION AT HEAD WALL	View PDF	Download AutoCAD
4A	COLONIAL-103	SECTION AT CLOSED RAKE EDGE	View PDF	Download AutoCAD
4B	COLONIAL-104	SECTION AT OPEN RAKE EDGE	View PDF	Download AutoCAD
5A	COLONIAL-200	SECTION AT V-HIP	View PDF	Download AutoCAD
5B	COLONIAL-201	SECTION AT #118 HIP	View PDF	Download AutoCAD
5C	COLONIAL-202	SECTION AT BONNET HIP	View PDF	Download AutoCAD
6A	COLONIAL-300	SECTION AT V-RIDGE	View PDF	Download AutoCAD
6B	COLONIAL-301	SECTION AT #211 RIDGE	View PDF	Download AutoCAD
6C	COLONIAL-302	SECTION AT #211 VENTED RIDGE	View PDF	Download AutoCAD
6D	COLONIAL-303	SECTION AT ROUNDED INTERLOCKING RIDGE	View PDF	Download AutoCAD
7	COLONIAL-400	SECTION AT FIELD CUT VALLEY	View PDF	Download AutoCAD

Download All Technical Details

PDF AUTOCAD

Download Installation Manuals

English Spanish

#	Accessory	Description
1		Terminal A tile installed at the intersection of hip(s) and ridge(s).
2		Ridge Tile A tile that is shaped to cover the uppermost horizontal part of the roof.
3		Hip Starter A tile installed at the bottom of the hip, also known as bullnose.
4		Closed Ridge End Closed-end tile installed at the gable end of the ridge.
5		Hip Tile A tile that is shaped to cover the external angle formed by the intersection of 2 sloped planes.
