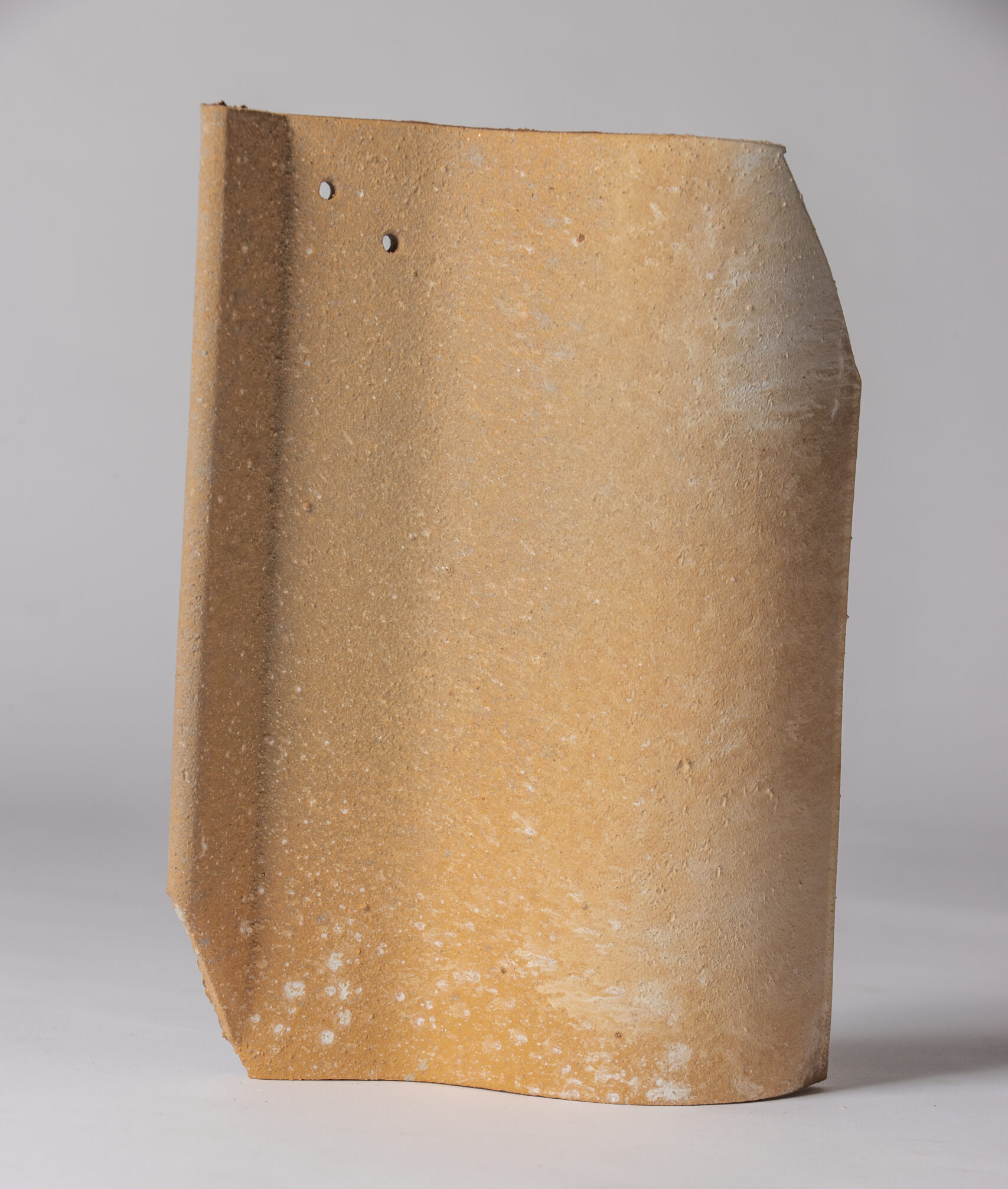

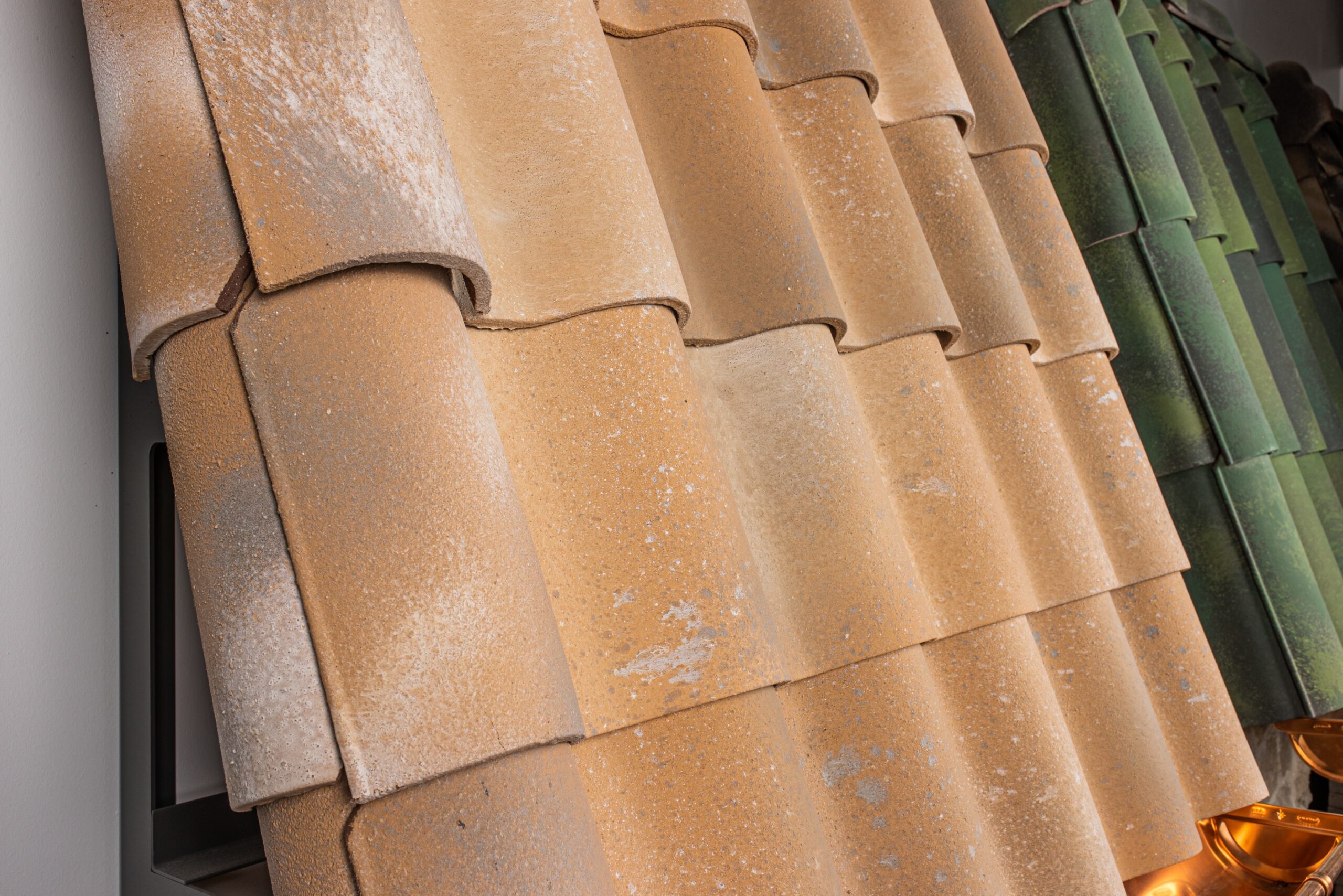

Spanish tile is prized for its simple, one-piece barrel design which provides a pattern of distinctive ripples across a roof. Ludowici’s Spanish 13-¼” tile provides an authentic, old European look to any style of architecture. Our Spanish tiles come standard with a smooth surface but can be customized with a variety of textures. These Spanish tiles are available in all standard and custom colors, mists, and blends offered by Ludowici and is backed by a 75-year material warranty. Ludowici Spanish barrel tile is also available in an 18-3/8″ profile.

Characteristic	Specifications
Weight Per Square	900 lbs.
Pieces Per Square	171 pcs.
Overall Size	9-3/4" x 13-1/4"
Exposure	8-1/4" x 10-1/4"
Installed Barrel Height Off Deck	3" Nominal
Recommended Minimum Slope	4:12
Base Texture	Smooth

#	Document	Description	PDF	AutoCAD
1A	13_SP-100	SECTION AT EAVE WITH EAVE CLOSURE	View PDF	Download AutoCAD
1B	13_SP-101	SECTION AT EAVE WITH BEVELED EAVE	View PDF	Download AutoCAD
1C	13_SP-102	SECTION AT EAVE WITH CLOSED EAVE	View PDF	Download AutoCAD
2	13_SP-103	SECTION AT SIDE WALL	View PDF	Download AutoCAD
3	13_SP-104	SECTION AT HEAD WALL	View PDF	Download AutoCAD
4A	13_SP-105	SECTION AT RAKE EDGE	View PDF	Download AutoCAD
4B	13_SP-106	SECTION AT RAKE EDGE WITH ROLLED RAKE	View PDF	Download AutoCAD
5A	13_SP-200	SECTION AT CIRCULAR COVER HIP	View PDF	Download AutoCAD
5B	13_SP-201	SECTION AT #102 HIP	View PDF	Download AutoCAD
6A	13_SP-300	SECTION AT CIRCULAR COVER RIDGE WITH TOP FIXTURE	View PDF	Download AutoCAD
6B	13_SP-301	SECTION AT CIRCULAR COVER RIDGE WITH FLAT TOP	View PDF	Download AutoCAD
6C	13_SP-302	SECTION AT CIRCULAR COVER VENTED RIDGE WITH TOP FIXTURE	View PDF	Download AutoCAD
6D	13_SP-303	SECTION AT CIRCULAR COVER VENTED RIDGE WITH FLAT TOP	View PDF	Download AutoCAD
6E	13_SP-304	SECTION AT #206 RIDGE WITH TOP FIXTURE	View PDF	Download AutoCAD
6F	13_SP-305	SECTION AT #206 RIDGE WITH FLAT TOP	View PDF	Download AutoCAD
6G	13_SP-306	SECTION AT #206 VENTED RIDGE WITH TOP FIXTURE	View PDF	Download AutoCAD
6H	13_SP-307	SECTION AT #206 VENTED RIDGE WITH FLAT TOP	View PDF	Download AutoCAD
7A	13_SP-400	SECTION AT FIELD CUT VALLEY	View PDF	Download AutoCAD
7B	13_SP-401	SECTION AT CUT AND CLOSED VALLEY	View PDF	Download AutoCAD

Download All Technical Details

PDF AUTOCAD

Download Installation Manuals

English Spanish

#	Accessory	Description
1		Terminal A tile installed at the intersection of hip(s) and ridge(s).
2		Ridge Tile A tile that is shaped to cover the uppermost horizontal part of the roof.
3		Hip Starter A tile installed at the bottom of the hip, also known as bullnose.
4		Closed Ridge End Closed-end tile installed at the gable end of the ridge.
5		Hip Tile A tile that is shaped to cover the external angle formed by the intersection of 2 sloped planes.
