Designed to last. Crafted to inspire. Introducing NeXclad True.

where innovation meets tradition

Ludowici’s NeXclad 16 is a terra cotta cladding solution that enhances both aesthetics and functionality. Its sleek design, suitable for rainscreen applications, improves structure longevity by acting as a protective second skin. With year-round installation capability, low maintenance costs, and sustainable materials, NeXclad 16 offers unparalleled versatility and longevity.  NeXclad 16 cladding is available in all standard and custom colors, mists and blends offered by Ludowici. NeXclad is also available in a smaller 14″ profile.
Ludowici’s NeXclad 16 cladding is covered by a 75-year material warranty.
Product Data Sheet
talk to a tile expert
View in Gallery

unmatched durability

Backed by a 75-year material warranty, engineered to withstand the elements.

Sustainable & high-performance

Natural terracotta material enhances thermal efficiency and long-term resilience.

limitless design potential

Choose from Ludowici’s extensive palette of colors, textures, and custom finishes.

Characteristic Specifications
weight per squareWeight Per Square750 lbs.
pieces per squarePieces Per Square109 pcs.
overall sizeOverall Size10-3/4" x 16" x 7/8"
exposureExposure10-1/8" x 13" x 7/8"
installed barrel height off deckInstalled Barrel Height Off DeckN/A
base textureBase TextureSmooth

WALL CLADDING INSTALLATION​

The most efficient way to install NeXclad small-module, mechanically anchored terracotta tiles is by securing them to a structural sheathing board. Traditionally, these structural wall boards are installed over a stud wall system with interior insulation (referred to as Traditional Wall Construction – Structural Sheathing Over Studs with Interior Insulation).

To enhance thermal efficiency, modern wall/building construction often utilizes Structural Insulated Sheathing (SIS) boards, which provide the building design with continuous exterior insulation. NeXclad small-format terracotta tiles can be installed over both traditional and SIS-based wall systems, delivering exceptional durability, a sleek flush aesthetic, and a virtually unlimited range of colors.

Ludowici offers comprehensive technical support, including CAD files and REVIT models, for these two primary wall construction types:

1. Stud Walls with Structural Insulated Sheathing (SIS) Boards – Designed for continuous exterior insulation.

2. Stud Walls with Structural Sheathing – Traditional construction with interior insulation placed between the wall studs.

Continuous Rigid Insulation Wall

Stud Walls with Structural Insulated Sheathing (SIS) Boards

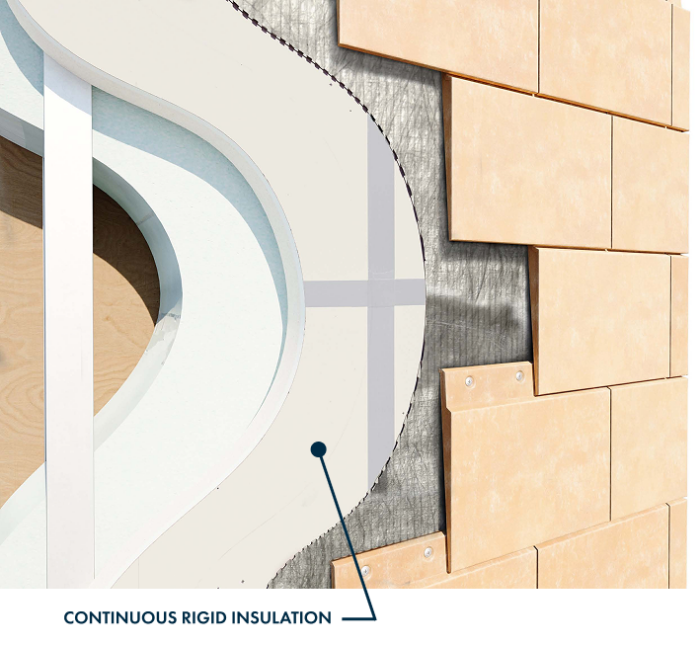

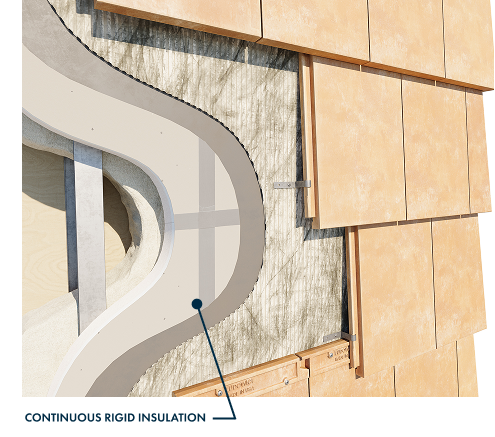

This system incorporates a continuous layer of rigid insulation applied to the building’s exterior, using a structural insulated sheathing (SIS) board. By minimizing thermal bridging, this method ensures greater energy efficiency while providing a secure substrate for NeXclad installation.

NeXclad Terra Cotta Integration:
• Direct installation over SIS boards with mechanical anchors into the structural facer board adhered to continuous rigid insulation, positioned outside the building’s waterproofing membrane and Ludowici’s drainage mat.
• Mechanical fasteners securely attach NeXclad tiles to the structural substrate without requiring additional mounting systems.
• CAD/REVIT models and PDF details below provide installation specifications.

Stud Walls with Structural Insulated Sheathing (SIS) Boards Details
Installation details over Continuous Rigid Insulation

Ideal for modern wood or steel-framed construction, this lightweight system simplifies installation while allowing for greater insulation and moisture control. With NeXclad’s precision engineering, framed wall installations achieve the look of classic terracotta with the efficiency of contemporary construction methods.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# Title Preview PDF DWG Revit

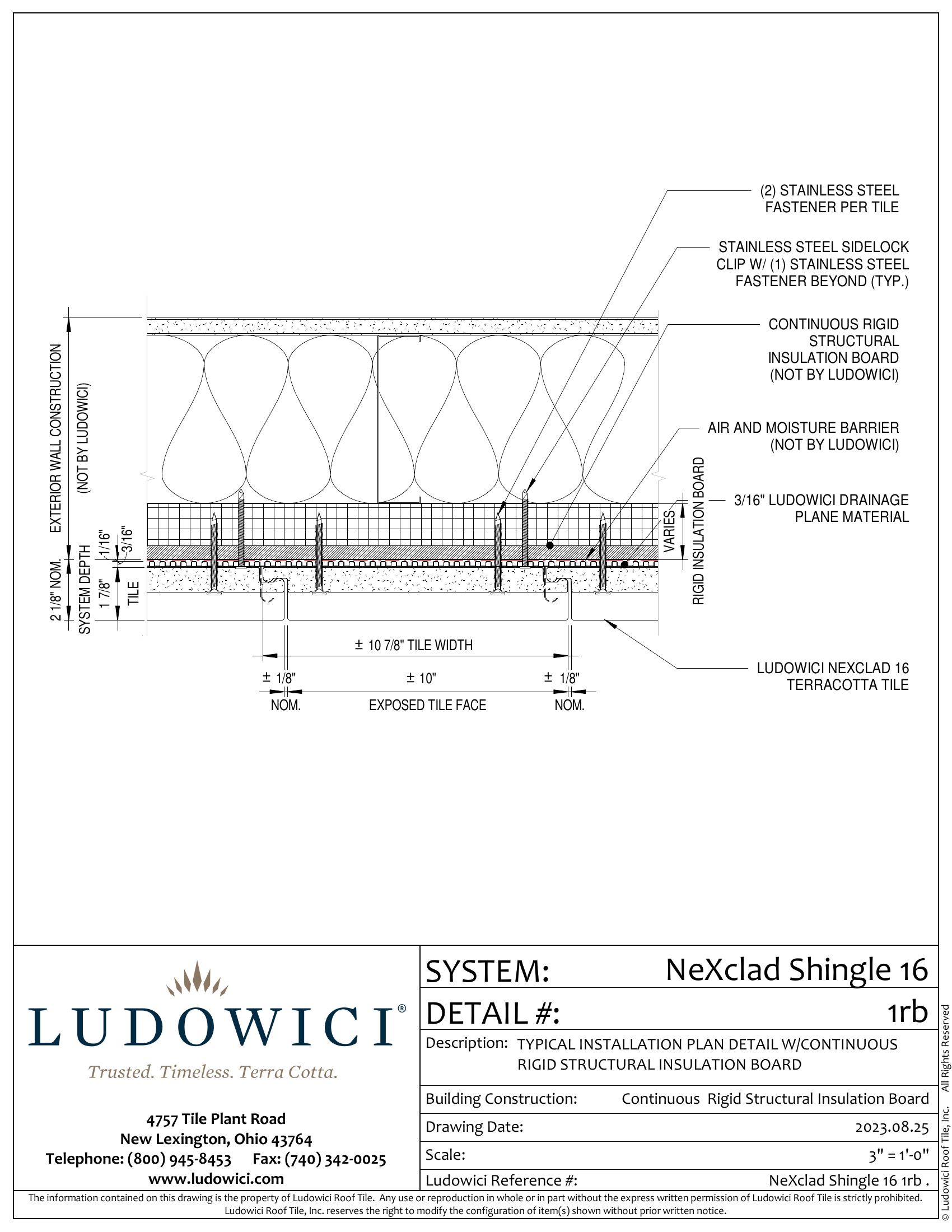

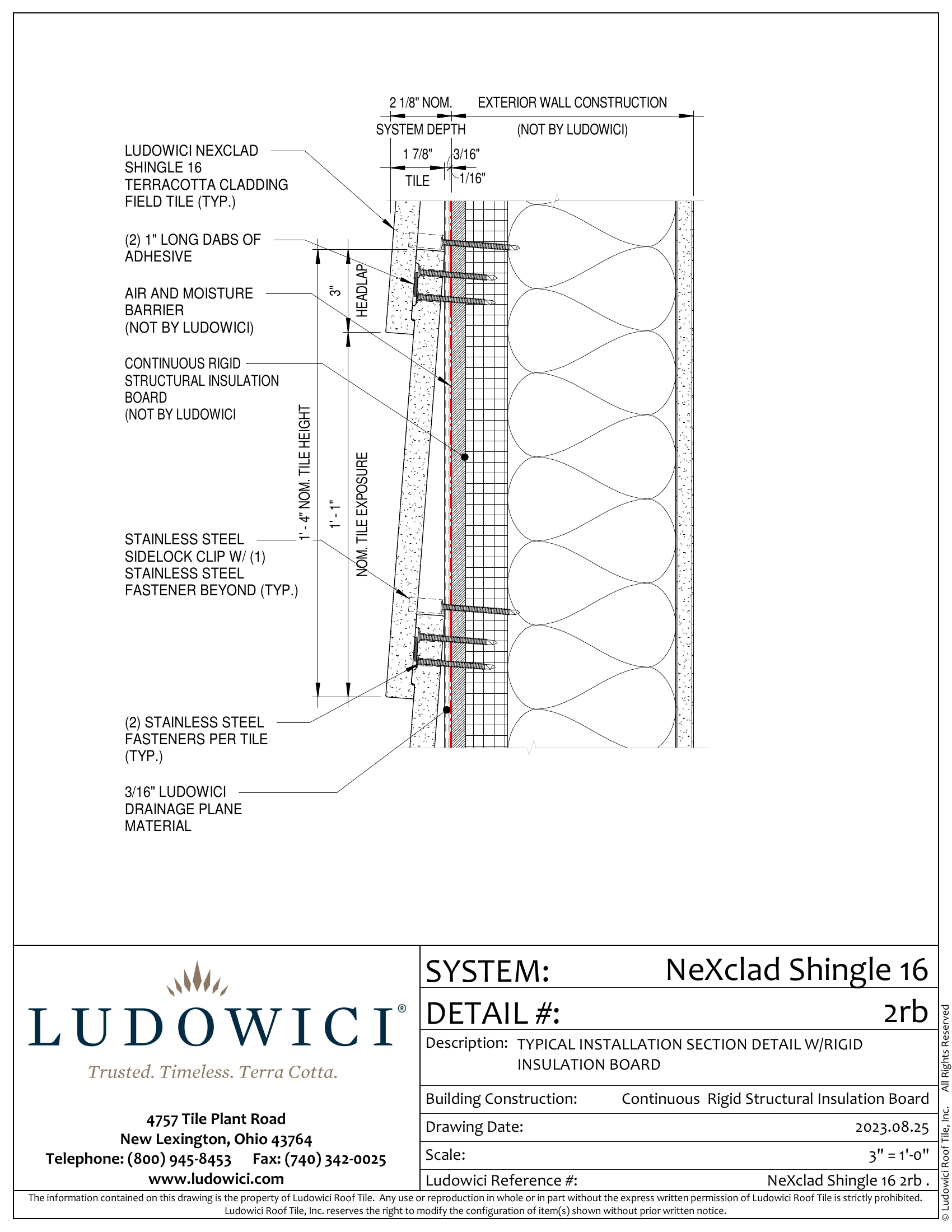

1 Typical Installation Plan -Cont Rigid Structural Insulation Board
2 Typical Installation Section W-Cont Rigid Insulation Board

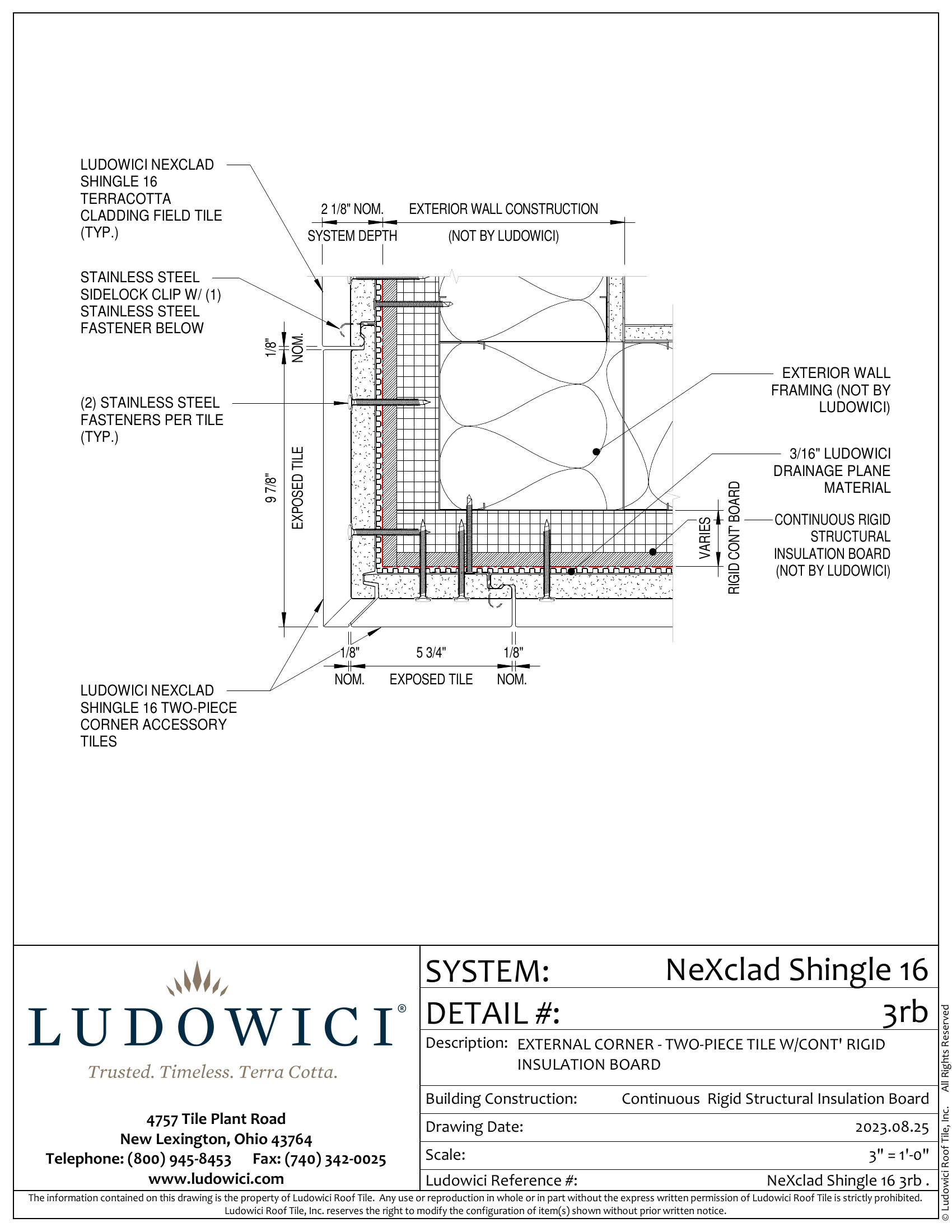

3 External Corner Detail - Two-Piece Tile W-Rigid Insulation Board

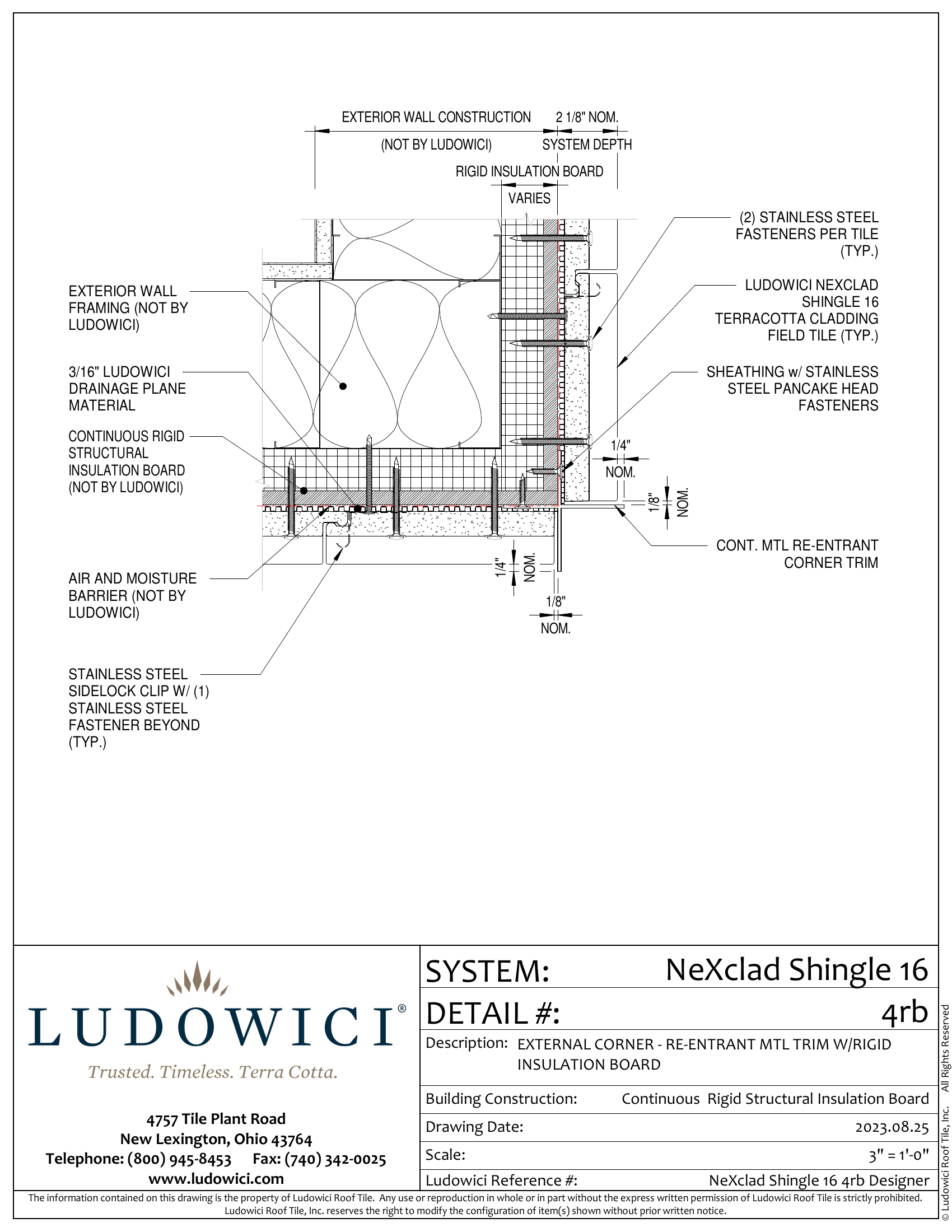

4 External Corner Plan Detail - Re-entrant W-Cont Rigid Structural Insulation Board

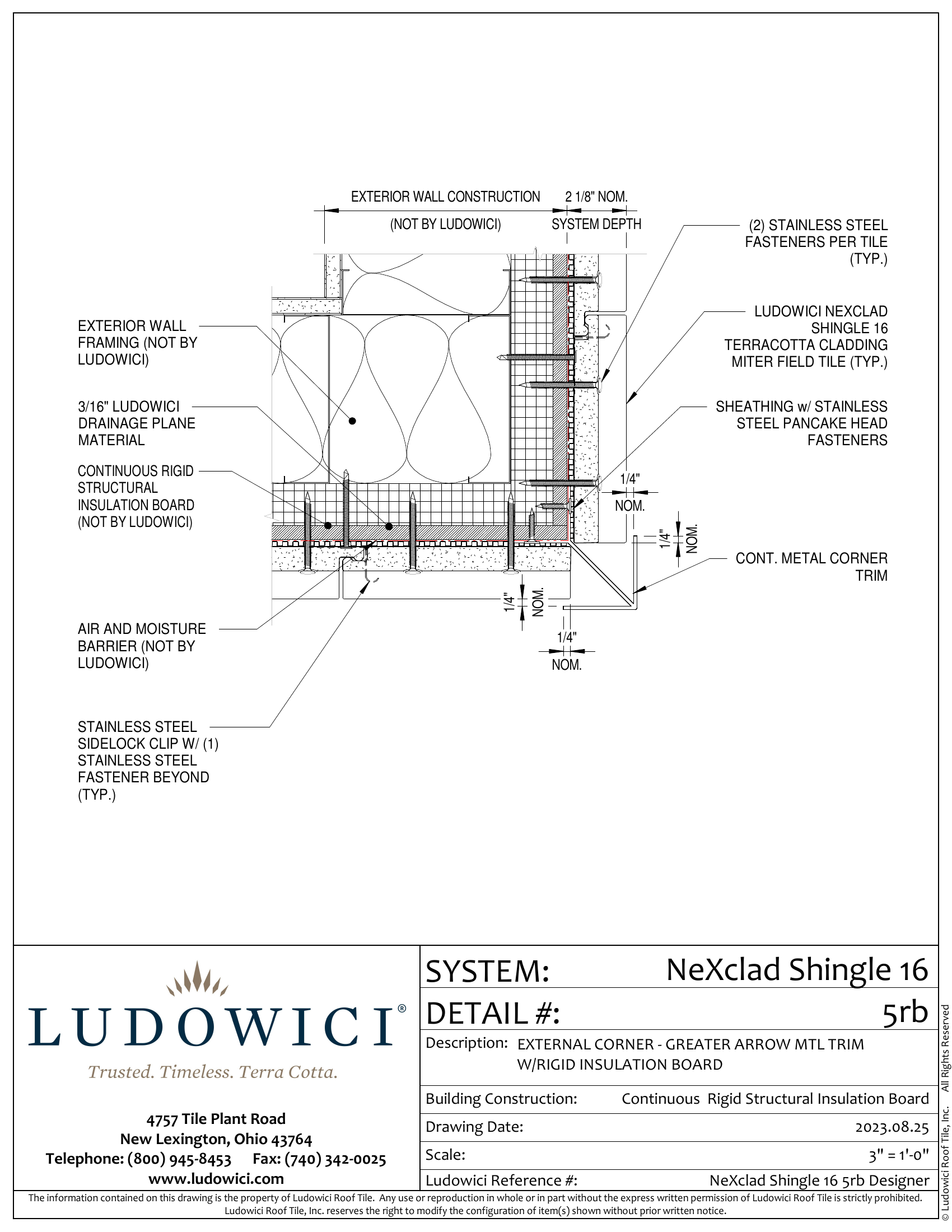

5 External Corner Plan Detail - Greater Arrow Trim W-Cont Rigid Structural Insulation Board
6

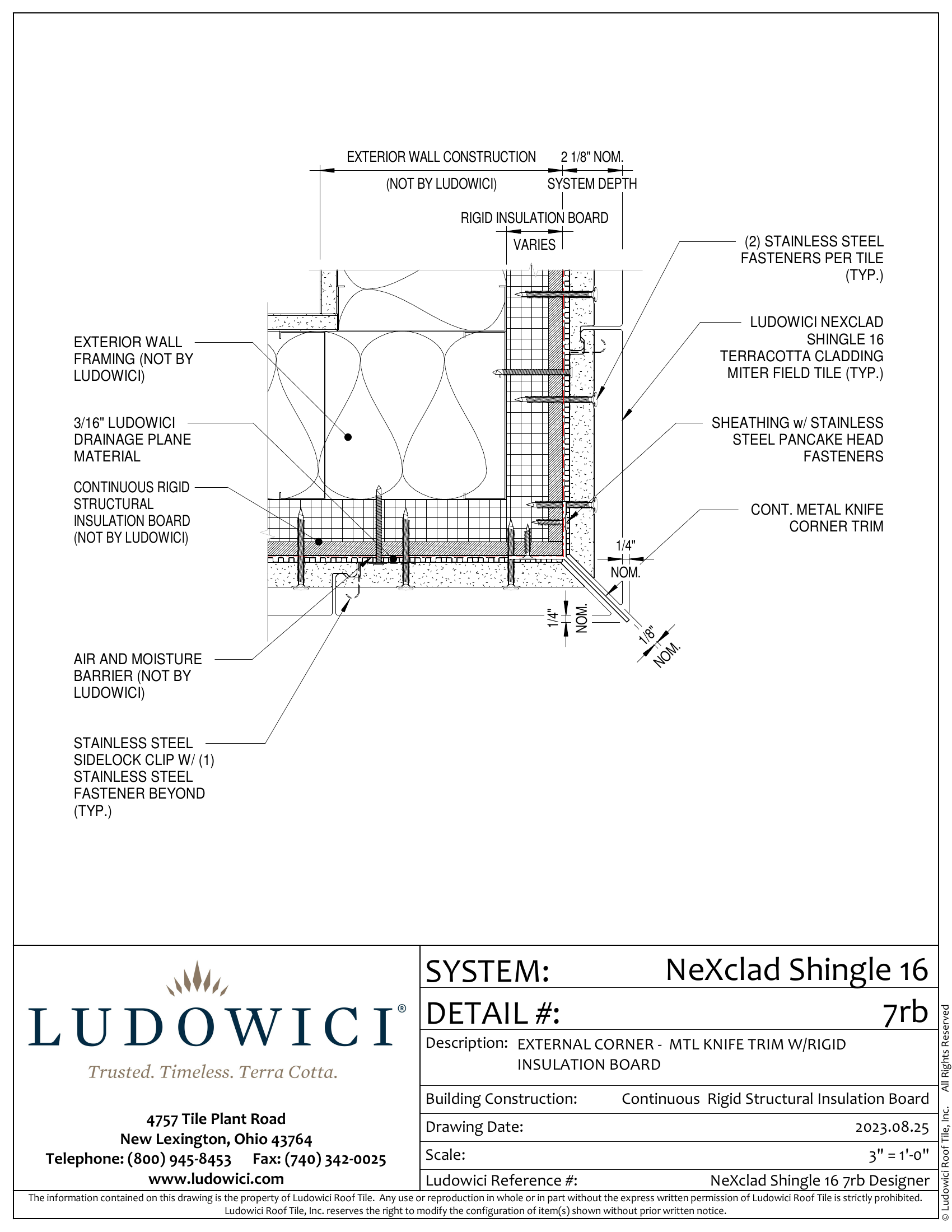

7 External Corner Plan Detail - Knife MTL Trim W-Continuous Rigid Structural Insulation Board
8

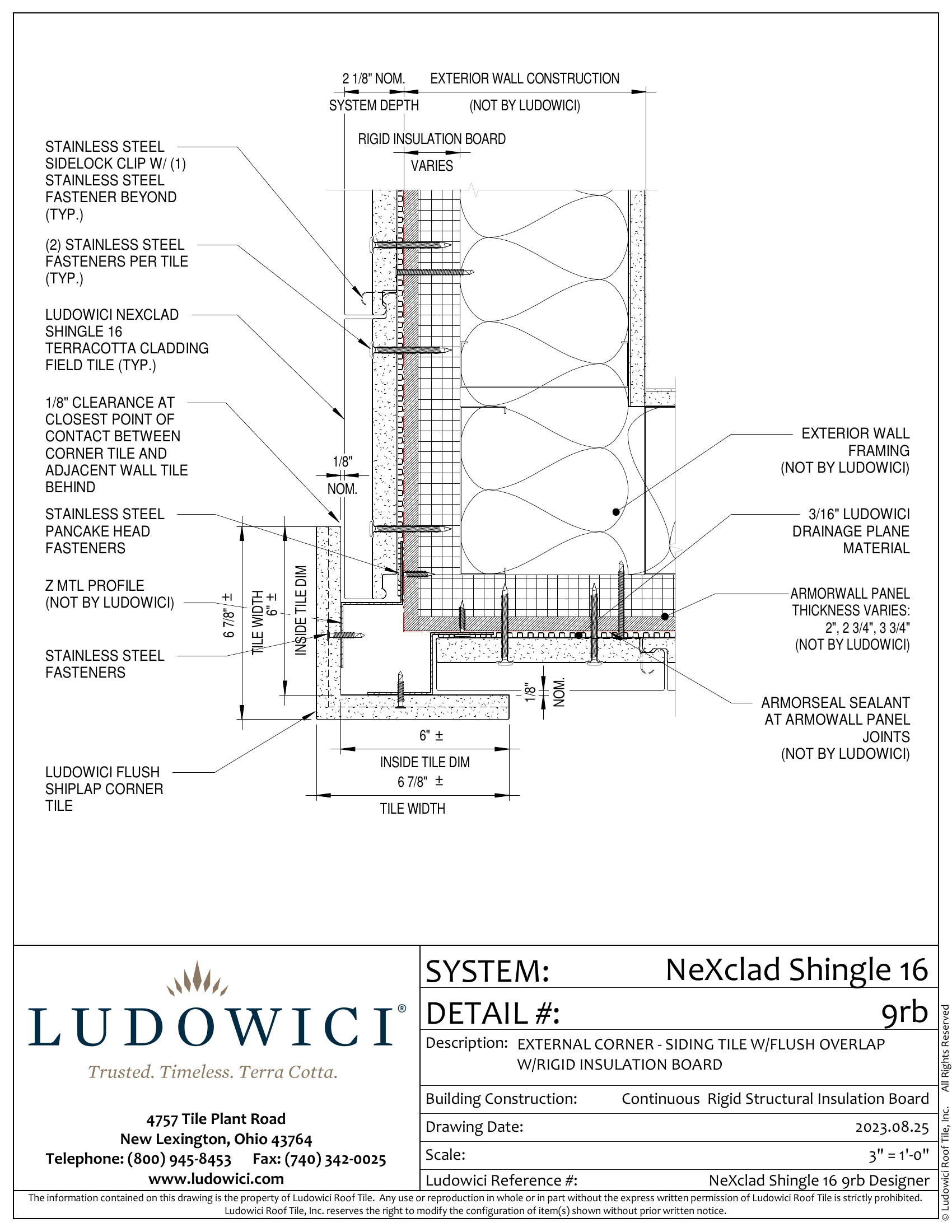

9 External Corner - Flush Shiplap Corner Tile W-Continuous Rigid Structural Insulation Board

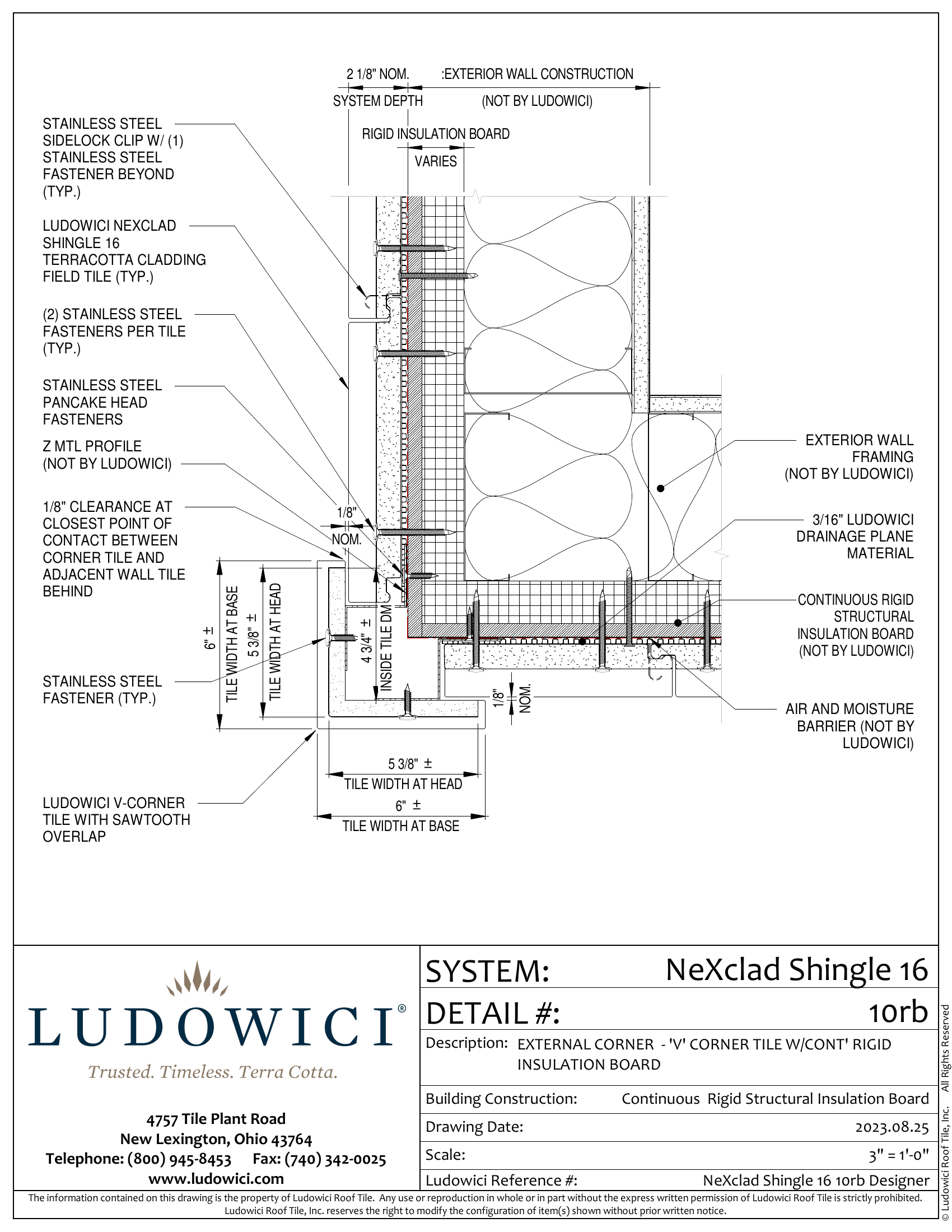

10 External Corner - V Corner Tile W-Continuous Rigid Structural Insulation Board

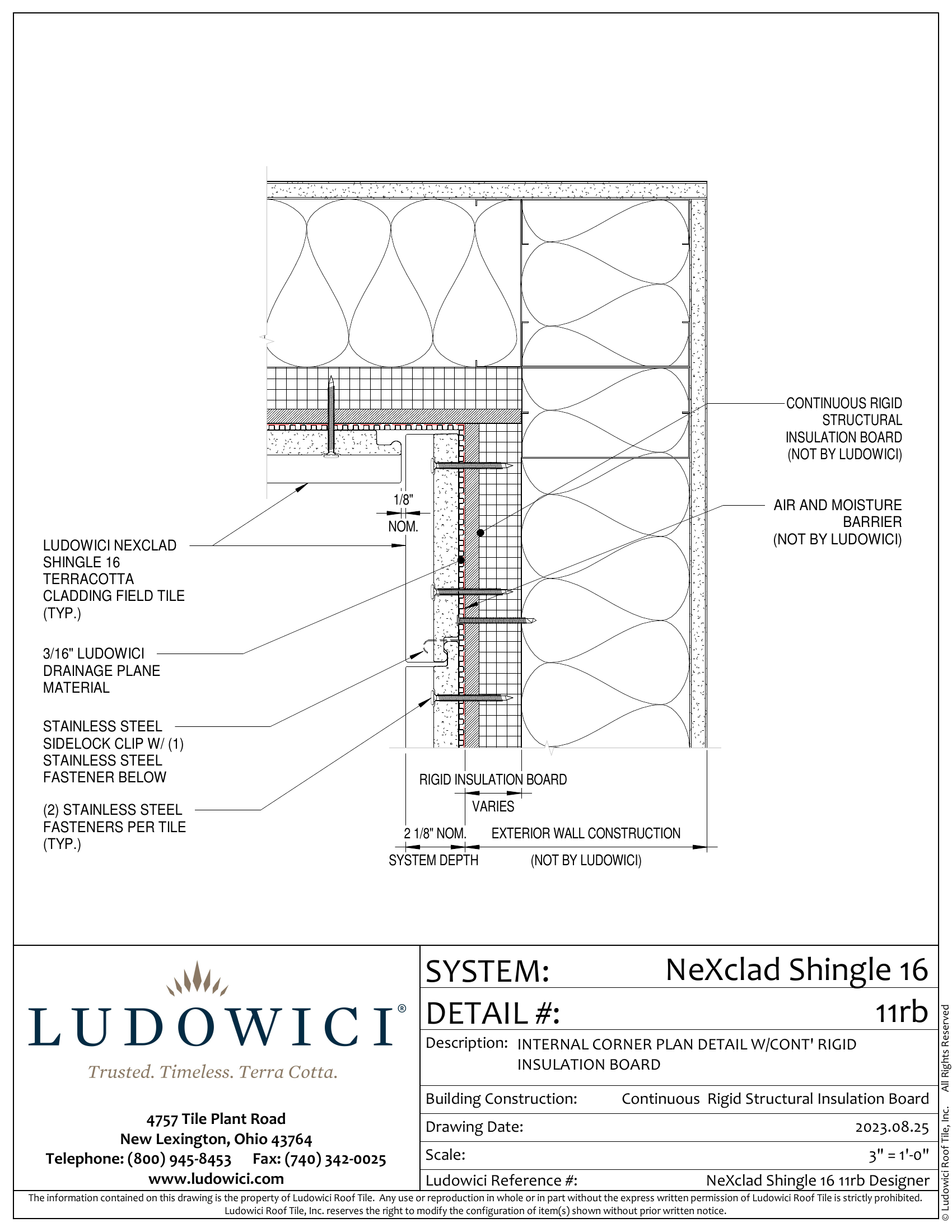

11 Internal Corner Plan Detail W-Continuous Rigid Structural Insulation Board

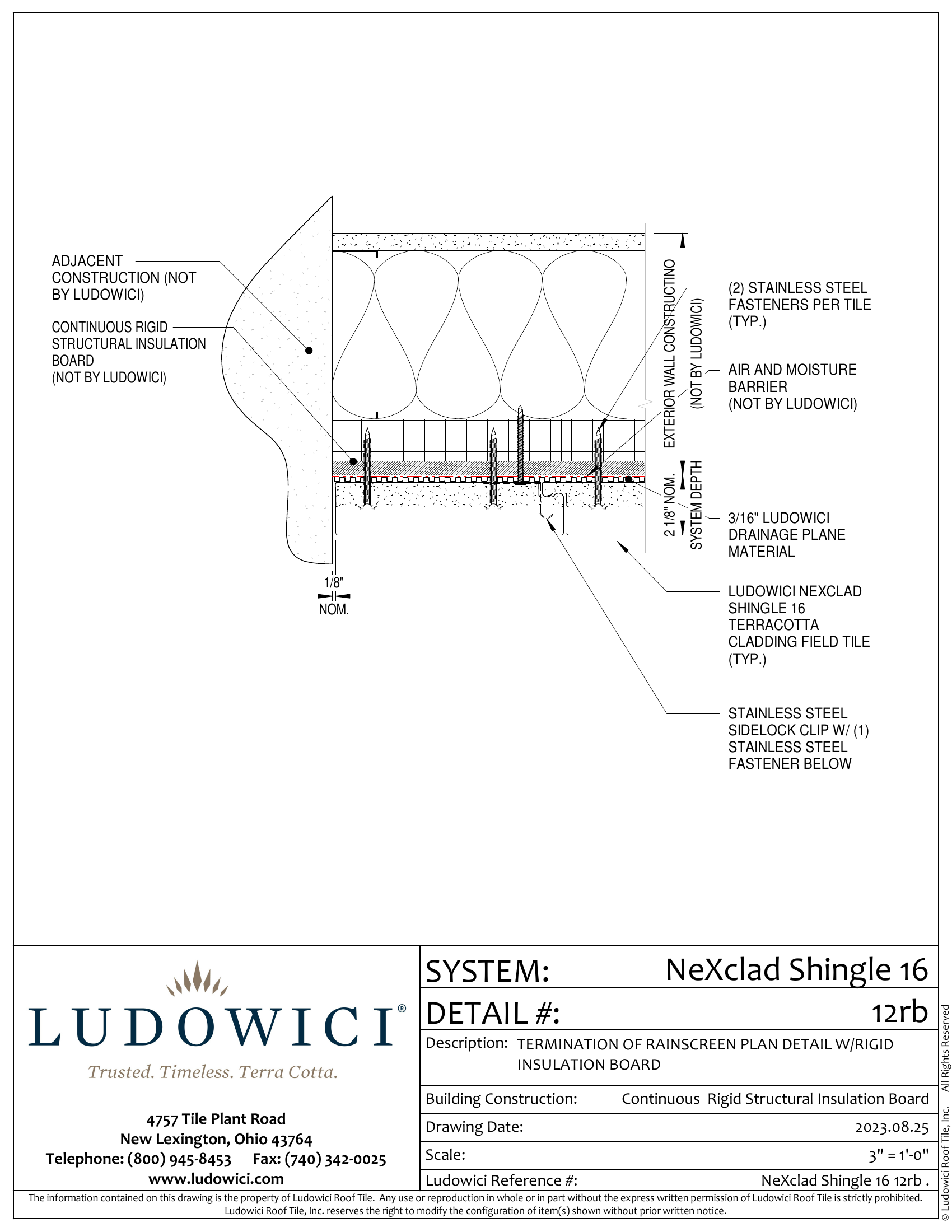

12 Wall Termination Plan Detail W-Continuous Rigid Structural Insulation Board
13 Base of Wall Section Detail W-Continuous Rigid Structural Insulation Board

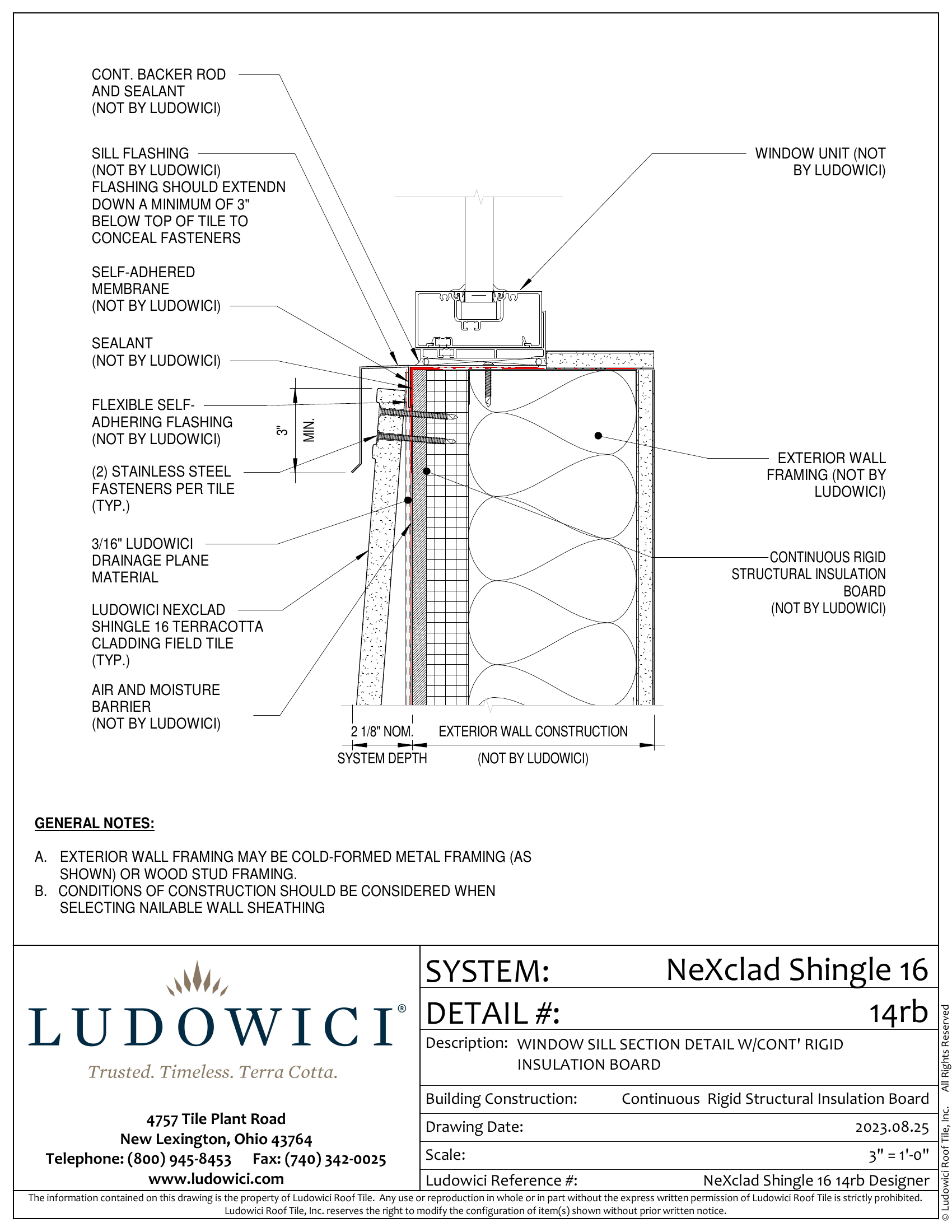

14 Window Sill Section W-Continuous Rigid Structural Insulation Board

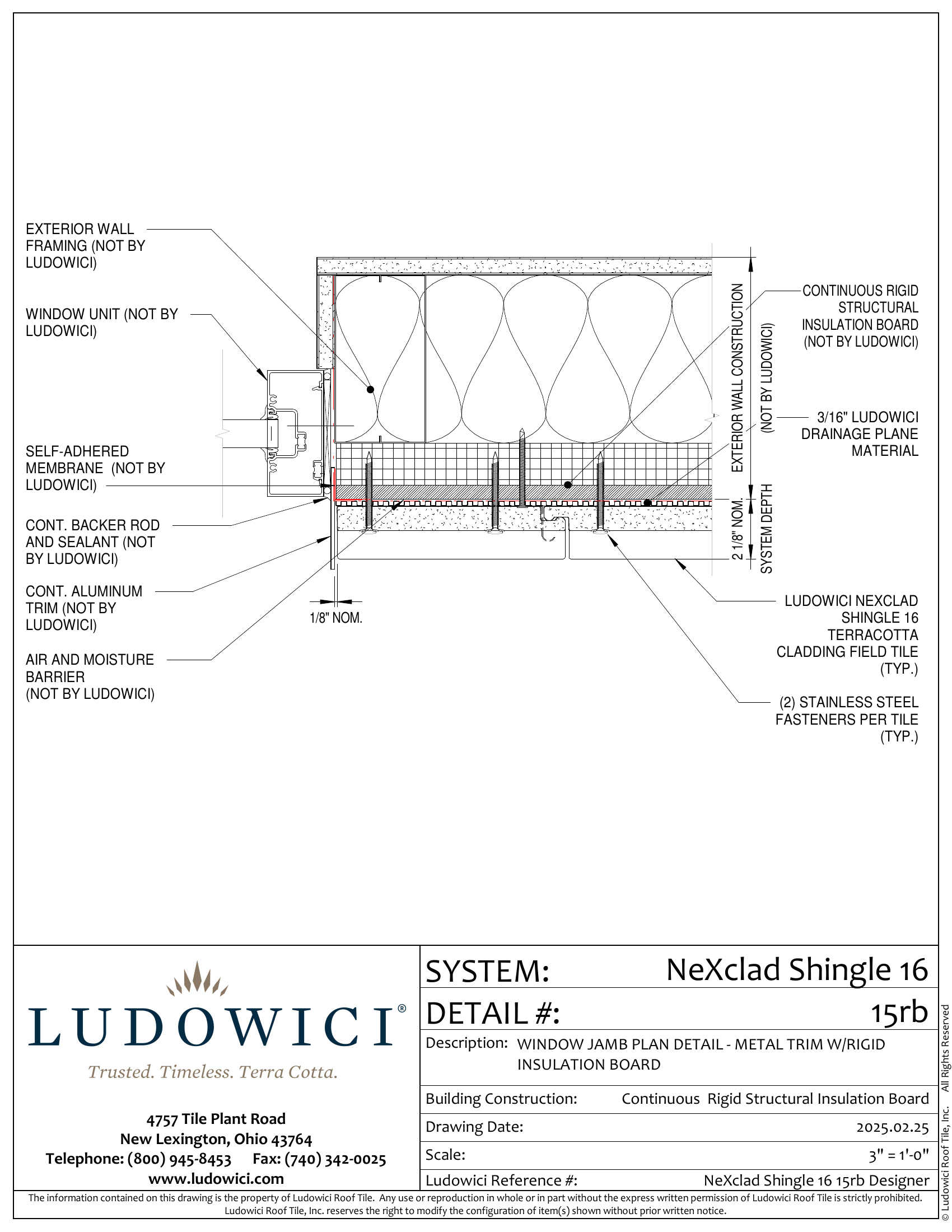

15 Jamb Detail W-Continuous Rigid Structural Insulation Board

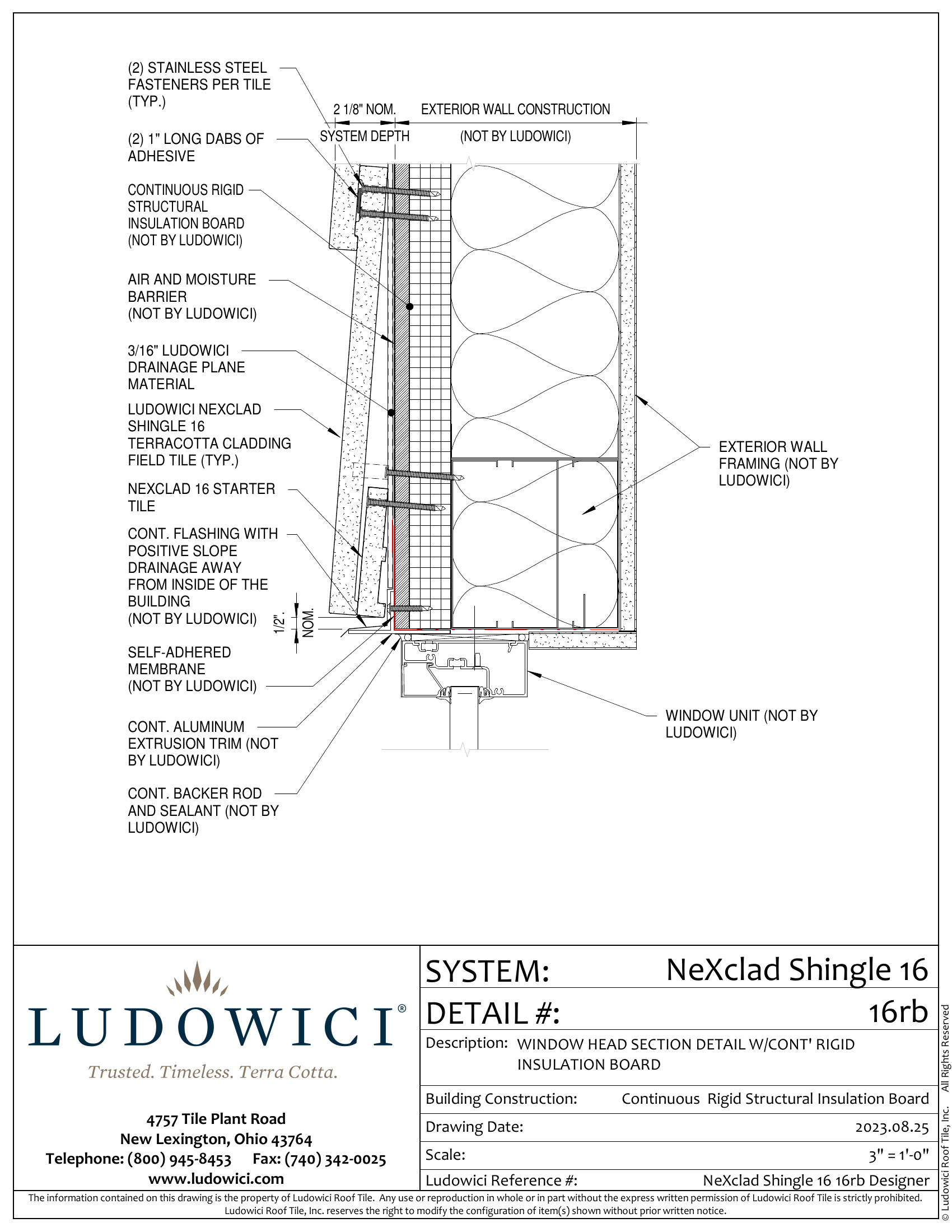

16 Window Head Detail W-Continuous Rigid Structural Insulation Board

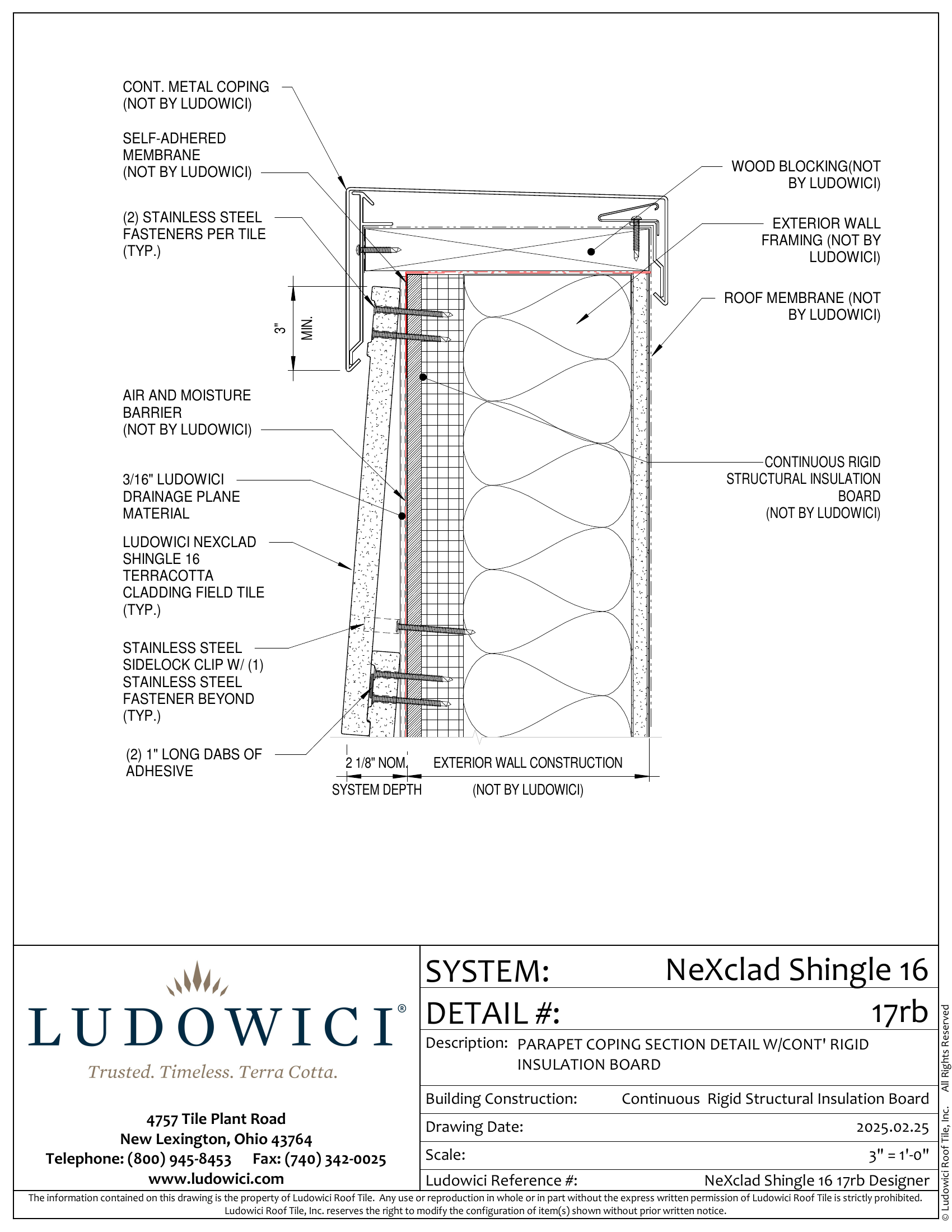

17 Parapet Coping W-Cont Rigid Insulation Board

Technical Resources

To ensure proper integration of NeXclad with your chosen wall system, access our technical drawings and detailed installation guidelines below.

Download Full PDF
Download all DWG Files
Download all REVIT Files
Stud Walls with Structural Sheathing mockup
Conventional Wall

Stud Walls with Structural Sheathing

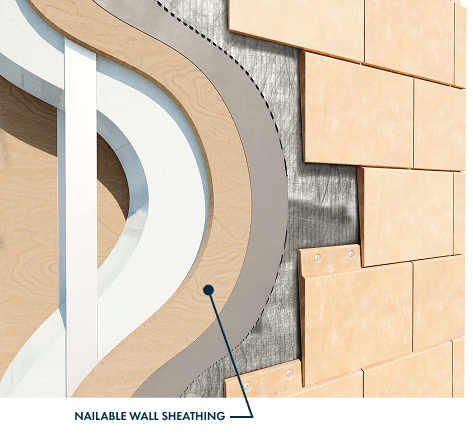

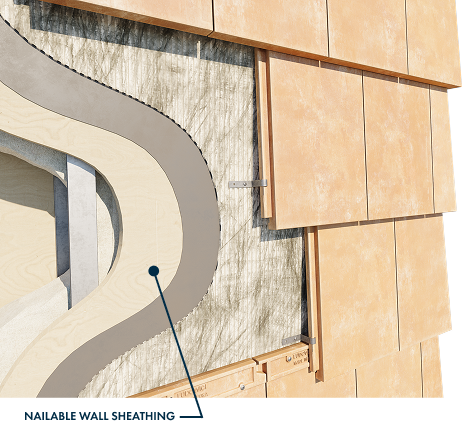

This conventional system consists of wood or steel stud framing with batt insulation placed between the studs. A solid, nailable/screwable sheathing layer is applied over the framing, serving as a secure base for exterior cladding. Unlike SIS-based systems, this approach does not include continuous exterior insulation.

NeXclad Terra Cotta Integration:
• Installed directly over a solid, nailable/screwable sheathing layer, positioned outside the building’s waterproofing membrane and Ludowici’s drainage mat.
• Mechanical fasteners securely attach NeXclad tiles to the structural substrate without requiring additional mounting systems.
• CAD/REVIT models and PDF details below provide installation specifications.

Stud Walls with Structural Sheathing Details
Installation details over Conventional Wall
Perfect for masonry or concrete structures, this method integrates directly with the wall for a seamless, highly durable cladding solution. NeXclad’s natural thermal mass enhances energy efficiency, while its precision-crafted terracotta finish ensures lasting beauty with minimal maintenance.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# Title Preview PDF DWG Revit
1 TYPICAL INSTALLATION PLAN DETAIL
2 TYPICAL INSTALLATION SECTION DETAIL
3 EXTERNAL CORNER PLAN DETAIL - COURSING TILE
4 EXTERNAL CORNER - RE-ENTRANT MTL TRIM
5 EXTERNAL CORNER - GREATER ARROW MTL CORNER TRIM
6 EXTERNAL CORNER - LESSER ARROW MTL CORNER TRIM
7 EXTERNAL CORNER - MTL KNIFE CORNER TRIM
8 EXTERNAL CORNER - MTL L CORNER TRIM
9 EXTERNAL CORNER - SIDING TILE WITH FLUSH OVERLAP
10 EXTERNAL CORNER - V CORNER TILE
11 INTERNAL CORNER PLAN DETAIL
12 TERMINATION OF RAINSCREEN PLAN DETAIL
13 BASE OF WALL SECTION DETAIL
14 WINDOW SILL SECTION DETAIL
15 WINDOW JAMB PLAN DETAIL - METAL TRIM
16 WINDOW HEAD SECTION DETAIL
17 PARAPET COPING SECTION DETAIL

Technical Resources

To ensure proper integration of NeXclad with your chosen wall system, access our technical drawings and detailed installation guidelines below.

Download Full PDF
Download all DWG Files
Download all REVIT Files
